895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Sweeper Unit Assembly Parts Diagram

Trailette Sweeper

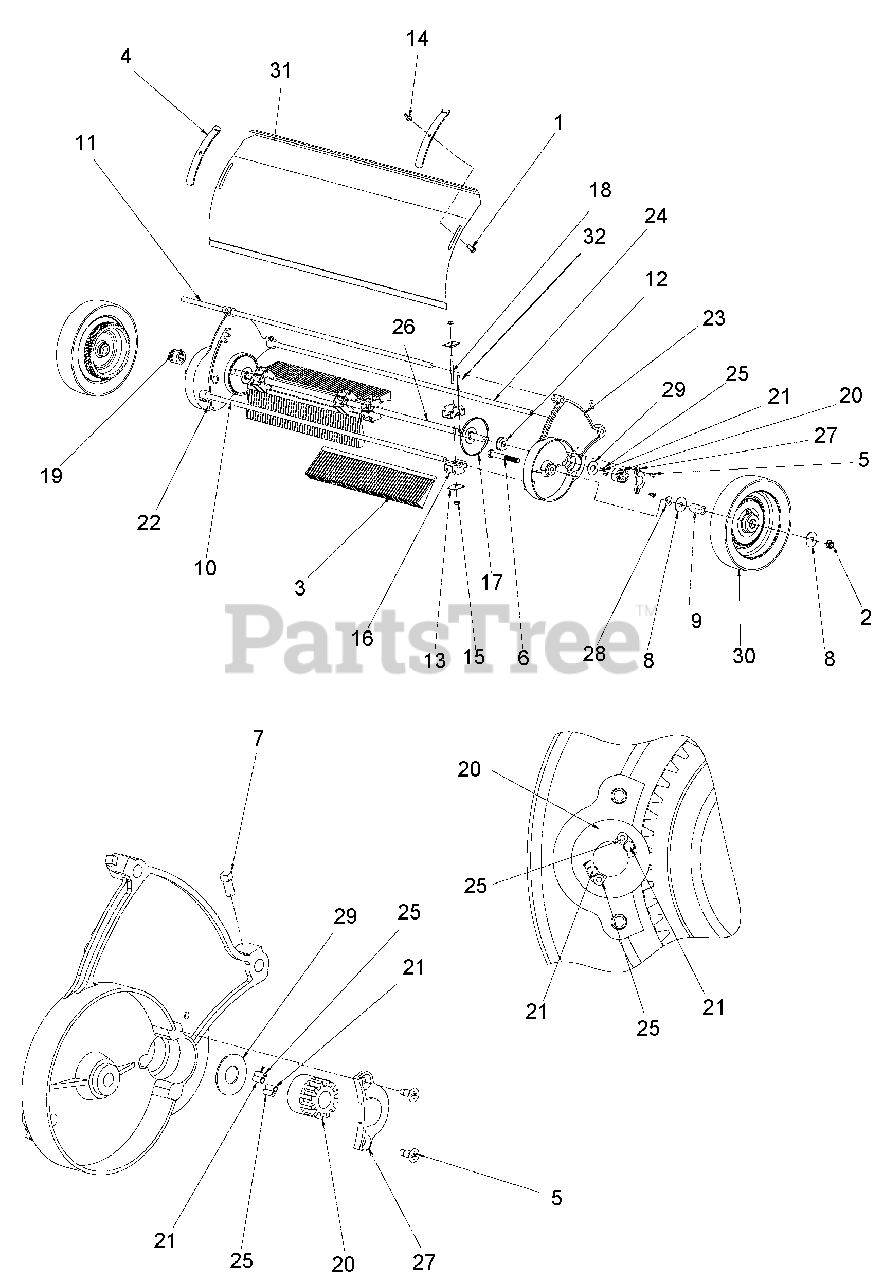

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06544000

NUT-LK-JAM-NYL .50-20 GR2 YWZC
(Superseded to 06500818)

$6.49

$

In Stock, only 2 left!

0

3

Gravely P-1200-17-B

SWP-SWEEPER-BRUSH

$

$

Not available

4

Gravely P49-11-A

SWP-HOOD CLAMP TE SU

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 06006130

SCR-FLHD-.25-20X.63 SLFTAP

$1.99

$

Usually ships in 4-12 days

0

6

Gravely P53-35-A

HHCS 1/2-20 X 4 FULL THREAD

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 06006125

SWP-SQUARE HEAD SET SCREW (10S
(Superseded to 06000220)

$2.99

$

In Stock, only 1 left!

0

8

Gravely P58-05-A

WSR-FLT .516 X 1.625 X .075
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

9

Gravely P58-06-A

SLEEVE

$46.99

$

Usually ships in 4-12 days

0

10

Gravely P68-33-A

TIEROD FRT** 18R0500 1018 1/2

$

$

Not available

11

Gravely P68-34-A

TIEROD TOP**18R0500 1018 1/2RD

$

$

Not available

12

Gravely P68-60-A

BEARING-FLG RADIAL (ASF 107-1E

$

$

Not available

13

Gravely P69-04-A

SWP-CLAMP BRUSH STRIP

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 06503800

NUT-WING .312-18 YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

16

Gravely P74-13-C

SWP-BRKT

$21.99

$

Usually ships in 4-12 days

0

17

Gravely P74-166-B

SWP-DUST COVER

$

$

Not available

18

Gravely P74-16-PLT

PLATED STUD ZINC

$

$

Not available

19

Gravely P74-78-RB

PINION RIGHT

$7.49

$

Usually ships in 4-12 days

0

20

Gravely P74-79-LB

PINION LEFT

$

$

Not available

21

Gravely P74-80-A

DOWEL PIN - .1875" OD X .4375"

$6.49

$

Usually ships in 4-12 days

0

22

Gravely P76-338-RF

SIDE PLATE RH

$

$

Not available

23

Gravely P76-339-LF

SIDE PLATE LH

$

$

Not available

24

Gravely P76-341-A

SWP-ROD PIVOT 43 1/8"TRAILETTE

$

$

Not available

25

Gravely P76-37-A

PAWL SPRING .188X.049 WX.438

$13.99

$

Usually ships in 4-12 days

0

26

Gravely 04229100

REEL SHAFT-PLATED

$

$

Not available

27

Gravely P80-01-B

CASTING-COVER PINION

$

$

Not available

28

Gravely P946-816-16

WSR-FIBER

$3.99

$

Usually ships in 4-12 days

0

29

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

30

Gravely PSA-609-C

SWP-TIRE ASY INCL 12 & 13

$

$

Not available

31

Gravely 50535000

SWP-HOOD W/DECALS TRLTE GR
(Superseded to 59503100)

$424.99

$

Usually ships in 4-12 days

0

32

Gravely P67-521-A

PIN-ROLL 3/16 x 1.0

$

$

Not available
