895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Sweeper Unit Assembly Parts Diagram

Trailette Sweeper

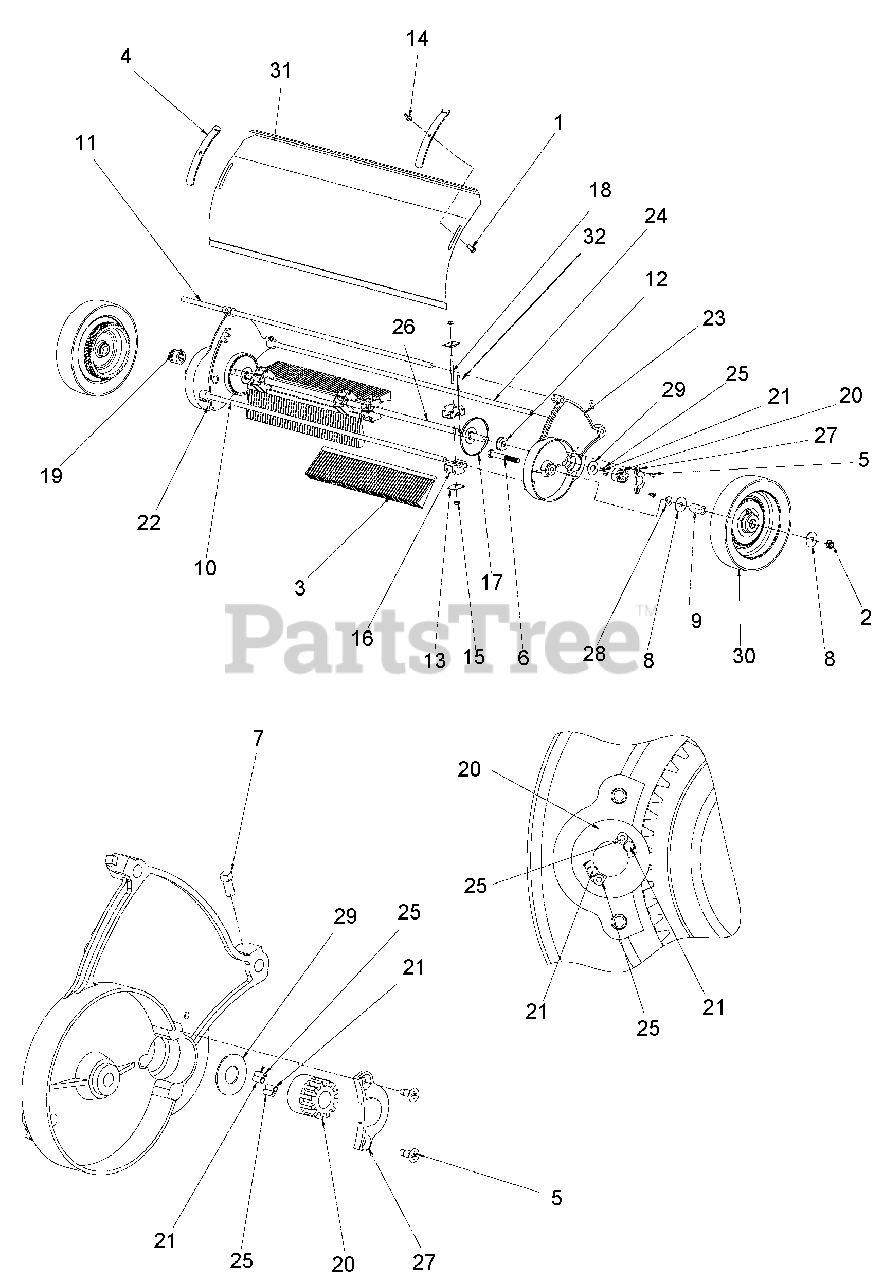

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

2

Gravely 06544000

Nut, Locking Jam, Nyloc .50-20 Gr. 2 YWZC
(Superseded to 06500818)

$5.99

$

In Stock, only 1 left!

0

3

P1200-17-B

Sweeper Brush

$

$

Not available

4

Gravely P49-11-A

Hood Clamp

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 06006130

Screw, Flange Head .25-20 x .63 Self-Tapping

$3.49

$

Usually ships in 4-12 days

0

6

Gravely P53-35-A

Bolt, 1/2-20 x 4 Axle

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 06006125

Set Screw, Square Head
(Superseded to 06000220)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely P58-05-A

Washer, .516 x 1.625 x .075 Felt
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

9

Gravely P58-06-A

Sleeve

$45.99

$

Usually ships in 4-12 days

0

10

Gravely P68-33-A

Tie Rod

$

$

Not available

11

Gravely P68-34-A

Tie Rod

$

$

Not available

12

Gravely P68-60-A

Bearing, Flange Radial

$

$

Not available

13

Gravely P69-04-A

Clamp, Brush Strip

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06503800

Wing Nut .321-18 YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06530100

Nut, Spinlock .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

16

Gravely P74-13-C

Bracket

$20.99

$

Usually ships in 4-12 days

0

17

Gravely P74-166-B

Dust Cover

$

$

Not available

18

Gravely P74-16PLT

Stud, Zinc Plated

$34.99

$

Usually ships in 4-12 days

0

19

Gravely P74-78-RB

Pinion, Right

$6.99

$

In Stock, only 2 left!

0

20

Gravely P74-79-LB

Pinion, Left

$

$

Not available

21

Gravely P74-80-A

Dowel Pin, .1875 OD x .4375

$5.99

$

Usually ships in 4-12 days

0

22

Gravely P76-338-RF

Side Plate, Right

$

$

Not available

23

Gravely P76-339-LF

Side Plate, Left

$

$

Not available

24

Gravely P76-341-A

Pivot Rod 43 1/8"

$

$

Not available

25

Gravely P76-37-A

Pawl Spring

$12.99

$

Usually ships in 4-12 days

0

26

Gravely 04229100

Reel Shaft, Plated

$

$

Not available

27

Gravely P80-01-B

Cover Pinion

$

$

Not available

28

Gravely P946-816-16

Washer, Fiber

$3.99

$

Usually ships in 4-12 days

0

29

Gravely P50-33-A

Washer, .656 x 1.50 x .06 Fiber

$3.63

$

Usually ships in 4-12 days

0

30

Gravely PSA-609-C

Tire Assembly

$

$

Not available

31

Gravely 50535000

Hood with Decals
(Superseded to 59503100)

$407.99

$

Usually ships in 4-12 days

0

32

Gravely P67-521-A

Pin, Roll 3/16 x 1.0

$

$

Not available
