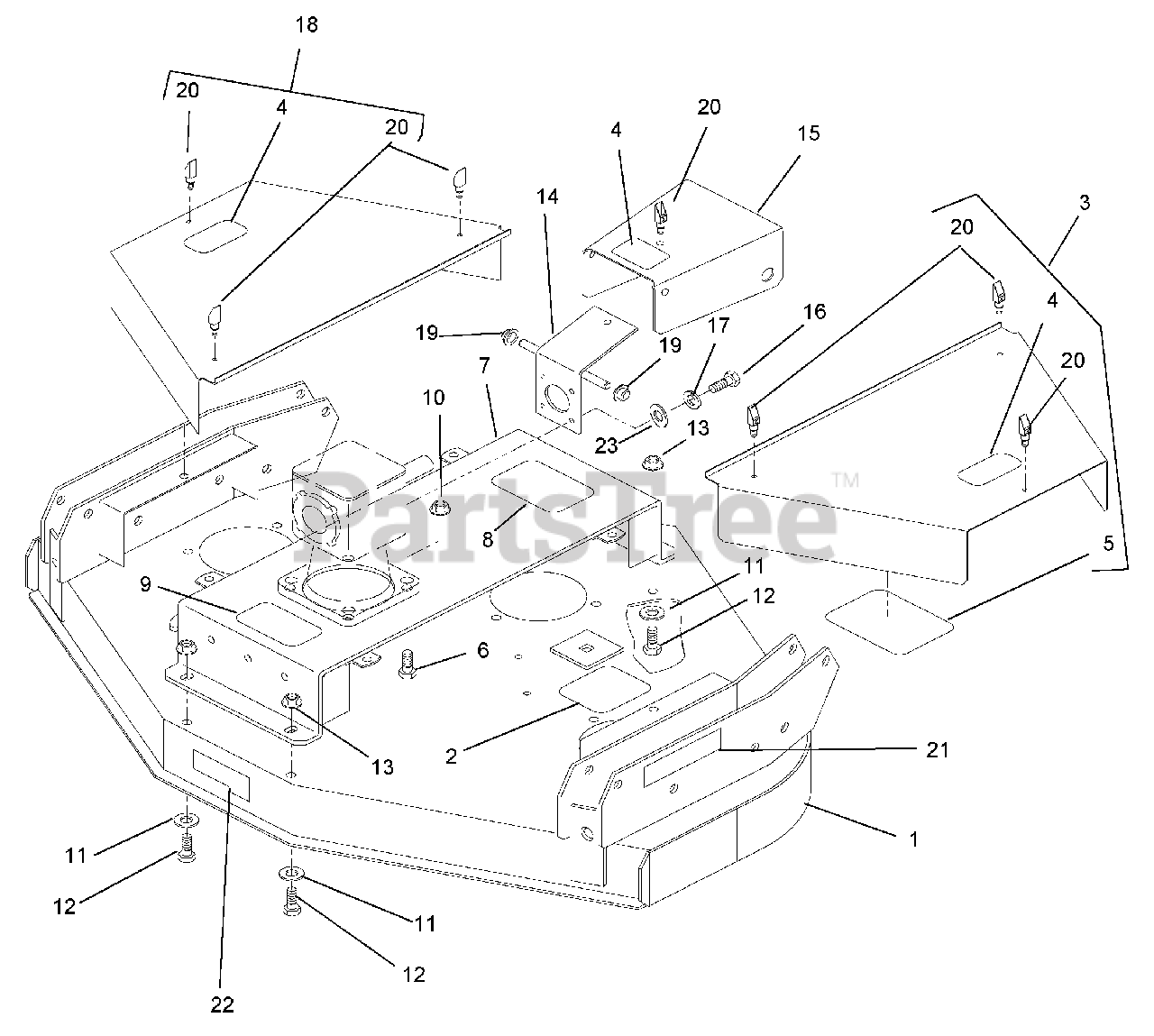

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Base Frame & Shielding Parts Diagram

Tow-Behind Finishing Mower

Base Frame & Shielding Parts Diagram

  • Title

1

Gravely 03289500

DECK WITH DECALS, 48 02647600

$775.99

$

Usually ships in 4-12 days

0

2

Gravely 02231300

DECAL;DANGER 50012616

$

$

Not available

3

Gravely 02947500

BELT SHIELD; RH W/DECALS 99498

Note: (Includes items 4, 5 and 20)

$

$

Not available

4

Gravely 02231200

DECAL;WARNING 50012615

$

$

Not available

5

Gravely 02940900

DECAL; BELT INSTALLATION 98082

$

$

Not available

6

Gravely 05900704

HEX HD CPSC 5/8-11 X 1-3/4 CP

$

$

Not available

7

Gravely 03289600

GEARBOX STAND W/DECAL 02385600

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 02881600

WARNING DECAL 83105

$

$

Not available

9

Gravely 02880800

DANGER DECAL 82619

$

$

Not available

10

Gravely 02144400

NUT FLANGE LOC 5/8-11 20414

$

$

Not available

11

Gravely 06400422

FLATWASHER 1/2 USS ZP 15916

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05900925

HHCS 1/2-13 X 1-1/4 G5 44094

$

$

Not available

13

Gravely 02140600

FLANGE LOCKNUT: 1/2-13 19518

$

$

Not available

14

Gravely 02943051

BASE WELDMENT 98253

$

$

Not available

15

Gravely 02942400

SHIELD W/DECAL 98174

$

$

Not available

16

Gravely 07000908

CAPSCREW M8 x 1.25 x 20M 38608

$

$

Not available

17

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

18

Gravely 02947600

BELT SHIELD; LH W/DECALS 99499

Note: (Includes items 4 and 20)

$

$

Not available

19

Gravely 02232000

CAP,1/2" PUSH ON 50014067

$

$

Not available

20

Gravely 02943700

SWELL LATCH 98284

$20.99

$

Usually ships in 4-12 days

0

21

Gravely 04298600

DECAL, PRODUCT, FP-3132, 10"

$

$

Not available

Gravely 04298700

DECAL, PRODUCT, MP-3132, 10"

$

$

Not available

22

Gravely 05239900

DECAL, 9.5" GRAVELY LOGO

$8.49

$

In Stock, Qty 12

0

23

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
