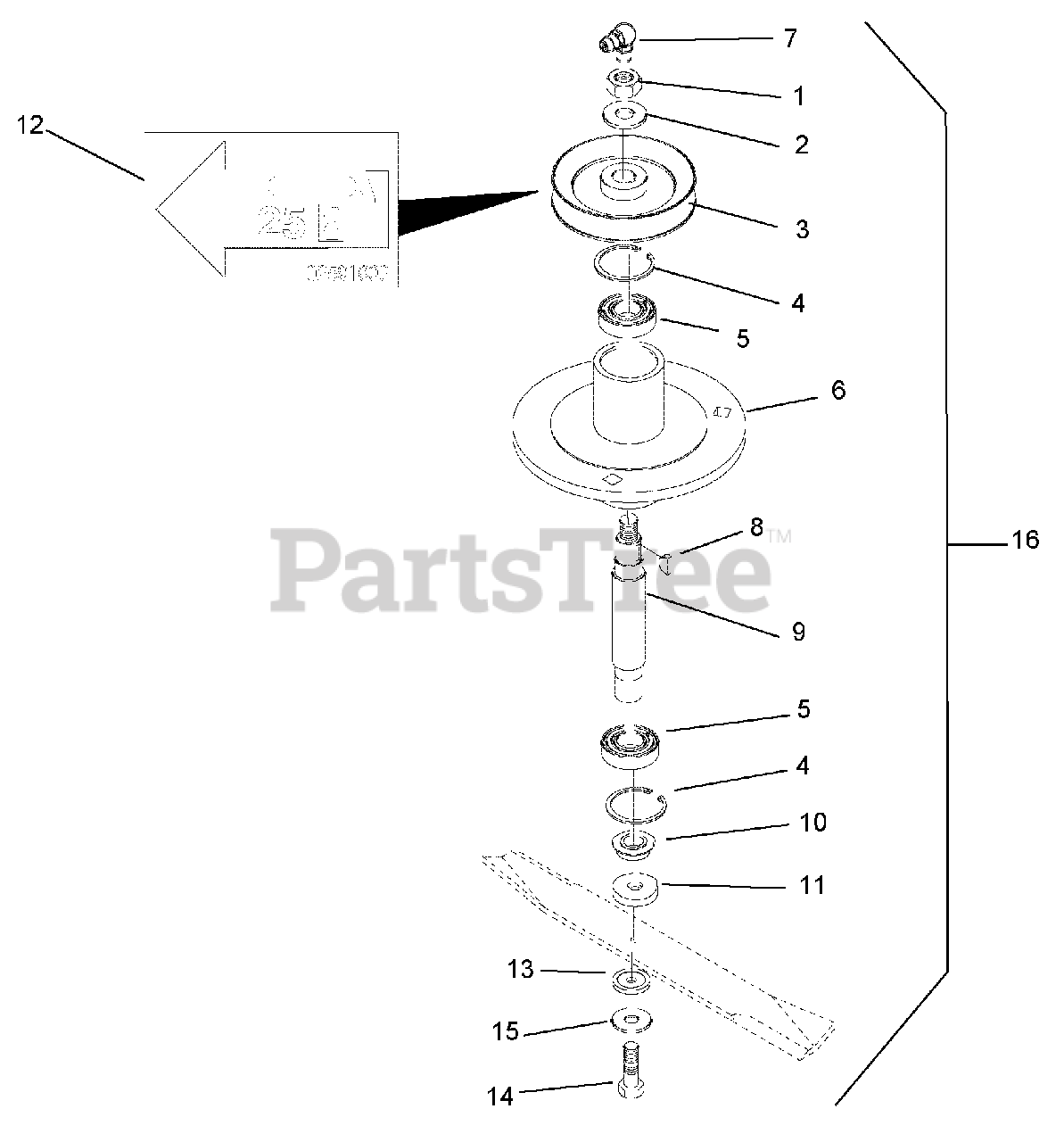

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Blade Spindle - FP Parts Diagram

Tow-Behind Finishing Mower

Blade Spindle - FP Parts Diagram

  • Title

1

Gravely 02892600

LOCKNUT 5/8-11 GRC CP

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

3

Gravely 02931400

SHEAVE; 5.50 EOD 95752

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 05700121

SNAP RING 2.280 97685

$

$

Not available

5

Gravely 05400639

BEARING 25 MM CLEARANCE 4

$

$

Not available

6

Gravely 02784100

MACHINED HOUSING WELD 50100001

$

$

Not available

7

Gravely 07000836

GREASE FITTING 1/4-28 900 2361

$

$

Not available

8

Gravely 02145000

WOODRUFF KEY #606 (3/4 20593

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 02931700

SHAFT INNER 95757

$171.99

$

Usually ships in 4-12 days

0

10

Gravely 02785900

BLADE BUSHING 50100046

$

$

Not available

11

Gravely 06400720

WASHER; BLADE 50034015

$

$

Not available

12

Gravely 02878000

BLADE 21" 82324

$

$

Not available

13

Gravely 06400724

WASHER BLADE REINFOR 50100045

$

$

Not available

14

Gravely 05901004

HHCS 1/2-20 X1-3/4 GR8 Y ZINC

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

16

Gravely 02784451

SPINDLE ASSY SINGLE S 50100005

Note: (Includes items 1 - 15)

$

$

Not available
