895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Blades, Belts And Pulleys - FP Parts Diagram

Tow-Behind Finishing Mower

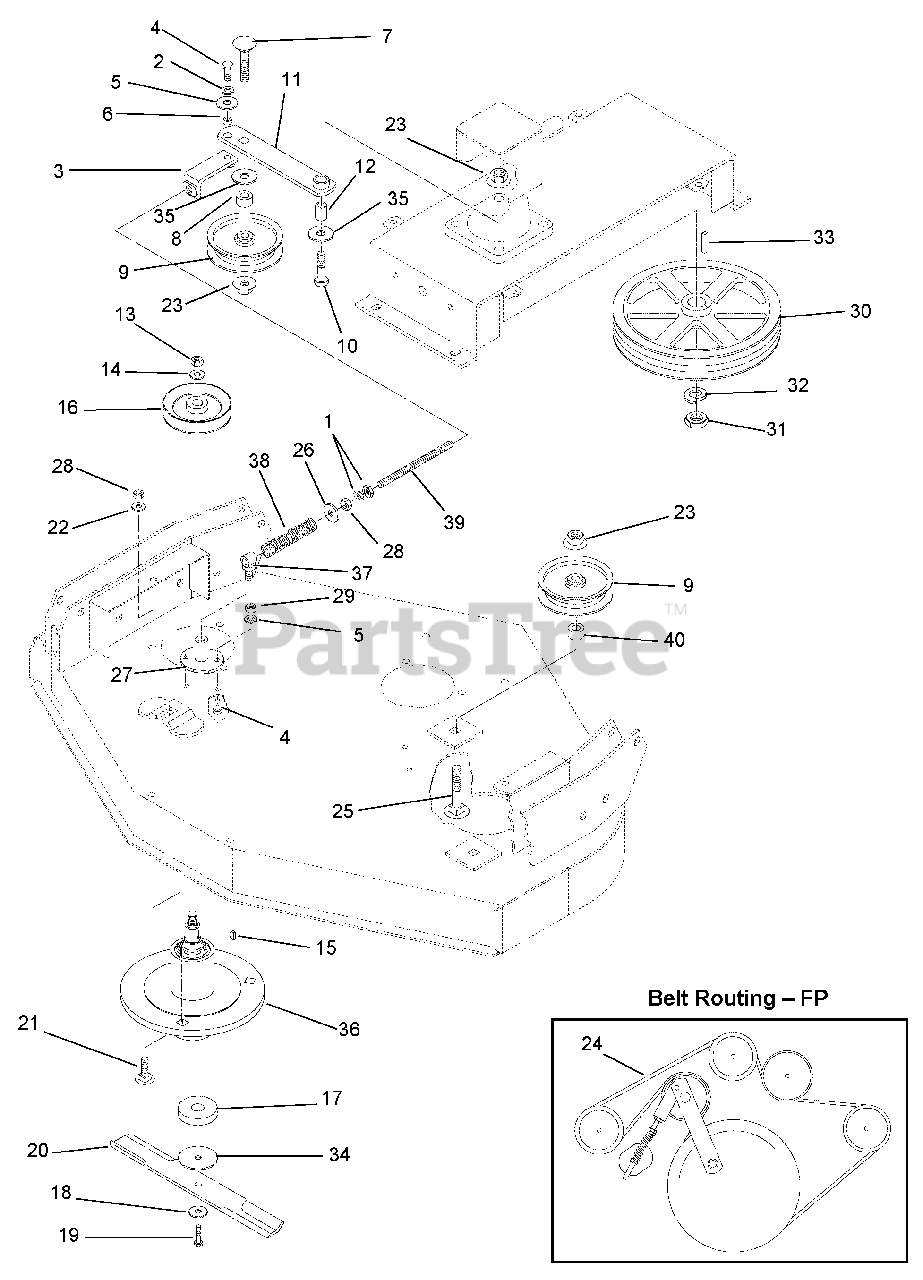

Blades, Belts And Pulleys - FP Parts Diagram

  • Title

1

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

2

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

3

Gravely 02935551

ADJUSTMENT ROD WELDMENT 96800

$

$

Not available

4

Gravely 05900623

HHCS 3/8-16 X 1-1/4 G5 1161212

$

$

Not available

5

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

6

Gravely 05500810

BUSHING 95807

$

$

Not available

7

Gravely 06200026

CARR BOLT 5/8-11 X 3 G5 20314

$

$

Not available

8

Gravely 03294551

SPACER; .69

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 02885651

IDLER ASSEMBLY 88663
(Superseded to 02885600)

$73.99

$

Usually ships in 4-12 days

0

10

Gravely 05901238

PIVOT BOLT 5/8-11 X 3

$

$

Not available

11

Gravely 02935451

IDLER ARM WELDMENT 96649

$

$

Not available

12

Gravely 05500533

SLEEVE; PIVOT 50017112

$16.99

$

Usually ships in 4-12 days

0

13

Gravely 02892600

LOCKNUT 5/8-11 GRC CP

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

15

Gravely 02145000

WOODRUFF KEY #606 (3/4 20593

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 02931400

SHEAVE; 5.50 EOD 95752

$56.99

$

Usually ships in 4-12 days

0

17

Gravely 06400720

WASHER; BLADE 50034015

$

$

Not available

18

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

19

Gravely 05901004

HHCS 1/2-20 X1-3/4 GR8 Y ZINC

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 02877900

BLADE;C.W. 17" 82323

$

$

Not available

21

Gravely 06200107

CARR BOLT 1/2 X 1-1/2 5161614

$

$

Not available

22

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 02144400

NUT FLANGE LOC 5/8-11 20414

$

$

Not available

24

Gravely 07200424

BELT; HB (115.0) 96814

Note: (115.0)

$69.99

$

Usually ships in 4-12 days

0

25

Gravely 06200037

CARRIAGE BOLT 5/8 X 4 1 44498

$

$

Not available

26

Gravely 06400422

FLATWASHER 1/2 USS ZP 15916

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 02936000

PIVOT MOUNT WELDMENT 96816

$

$

Not available

28

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

29

Gravely 05901004

HHCS 1/2-20 X1-3/4 GR8 Y ZINC

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 02899251

SHEAVE; MACHINED (15.16) 94906

$

$

Not available

31

Gravely 02842800

HEXAGON NUT M30X2 70287

$

$

Not available

32

Gravely 02842700

SPR. WASH. OUT. TOOTH 31 70286

$

$

Not available

33

Gravely 06600201

KEY;6MMX6MMX30MM 70288

$

$

Not available

34

Gravely 06400851

SPACER 97658

$

$

Not available

35

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

36

Gravely 02784451

SPINDLE ASSY SINGLE S 50100005

Note: (See See BLADE SPINDLE - FP on page 39.)

$

$

Not available

37

Gravely 02932551

PIVOT WELDMENT 95818

$47.99

$

Usually ships in 4-12 days

0

38

Gravely 08300451

SPRING 1.10 OD 95827

$

$

Not available

39

Gravely 02936900

ROD; THREADED 96997

$

$

Not available

40

Gravely 02786551

IDLER PULLEY SPACER 50100067

$19.99

$

Usually ships in 4-12 days

0
