895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Caster Arm And Wheel Assemblies Parts Diagram

Tow-Behind Finishing Mower

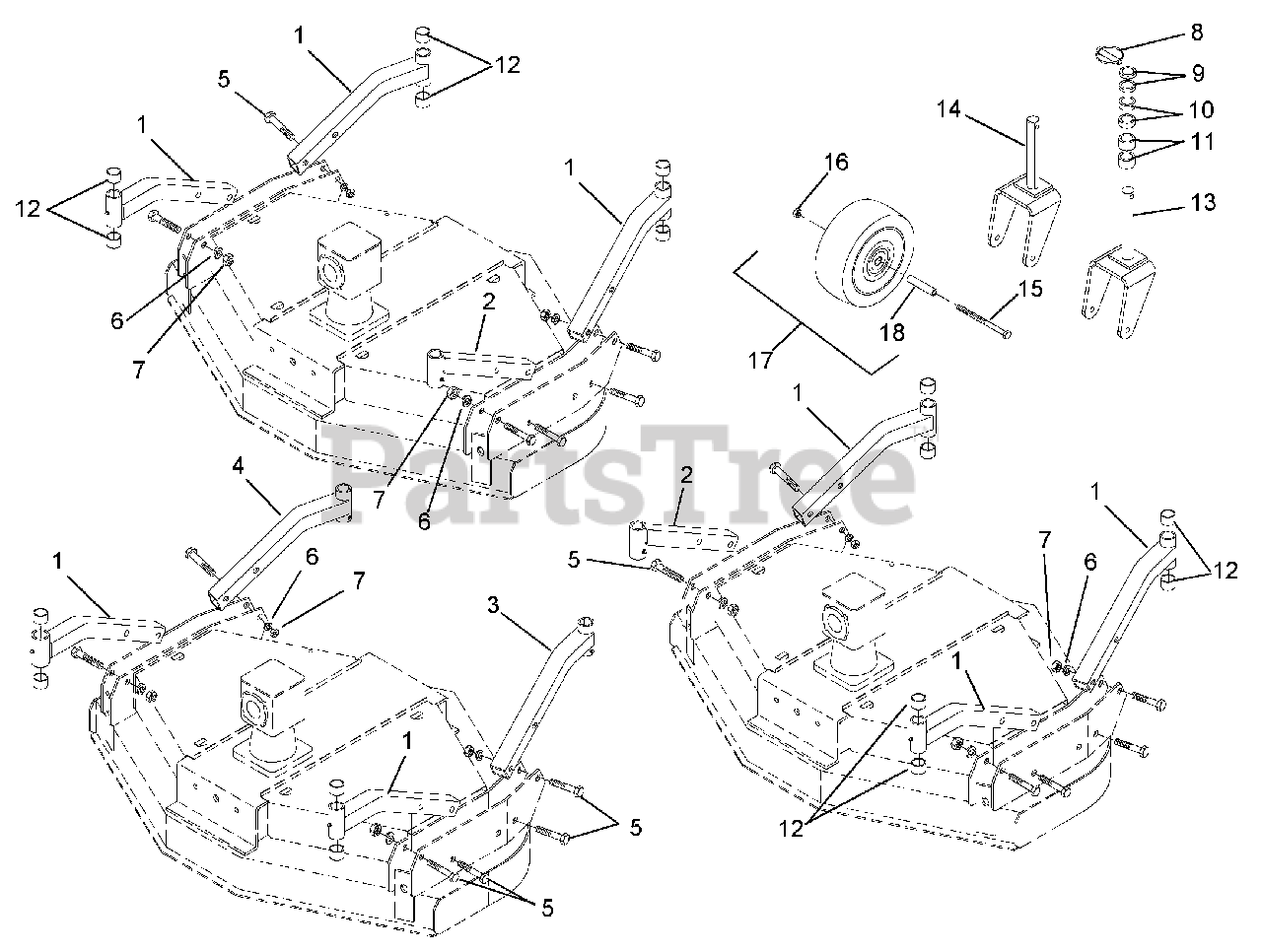

Caster Arm And Wheel Assemblies Parts Diagram

  • Title

1

Gravely 09971800

ARM ASSEMBLY 50021071

$287.99

$

Usually ships in 4-12 days

0

2

Gravely 02944451

ARM WELDMENT; HEX 98293

$

$

Not available

3

Gravely 02601451

ARM WELDMENT; RH HEX 50023311

$131.99

$

Usually ships in 4-12 days

0

4

Gravely 02602151

ARM WELDMENT; LH HEX 50023312

$

$

Not available

5

Gravely 05900927

HEX HD CPSC 5/8-11 X 3-1/2

$

$

Not available

6

Gravely 06300038

LOCKWASHER 5/8 CP 19486

$

$

Not available

7

Gravely 06500431

HEX NUT 5/8-11 CP 15563

$

$

Not available

8

Gravely 02238100

LYNCH PIN 50017304

$4.49

$

Usually ships in 4-12 days

0

9

Gravely 06400819

SPACER .25 99292

$

$

Not available

10

Gravely 06400818

SPACER .50 99291

$

$

Not available

11

Gravely 06400817

SPACER 1.00 99290

$

$

Not available

12

Gravely 02383900

BRONZE BUSHING 50021066

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 02382851

FORK; ROUND CASTER 50020433

$223.99

$

Usually ships in 4-12 days

0

Gravely 19000300

CASTER WELDMENT; EXTE 50024400

$

$

Not available

14

Gravely 19000251

CASTER WELDMENT; HEX 50020434

$221.99

$

Usually ships in 4-12 days

0

Gravely 19000400

CASTER WELDMENT; EXTE 50024401

$

$

Not available

15

Gravely 05900821

HEX HD CPSC 1/2-13 X 6 G 20776

$12.99

$

Usually ships in 4-12 days

0

16

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

17

Gravely 07100712

TIRE & WHEEL ASSY PNEUMA 97948

$

$

Not available

18

Gravely 06400938

BEARING SPACER TUBE

$

$

Not available
