895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Center Driveshaft Parts Diagram

Tow-Behind Finishing Mower

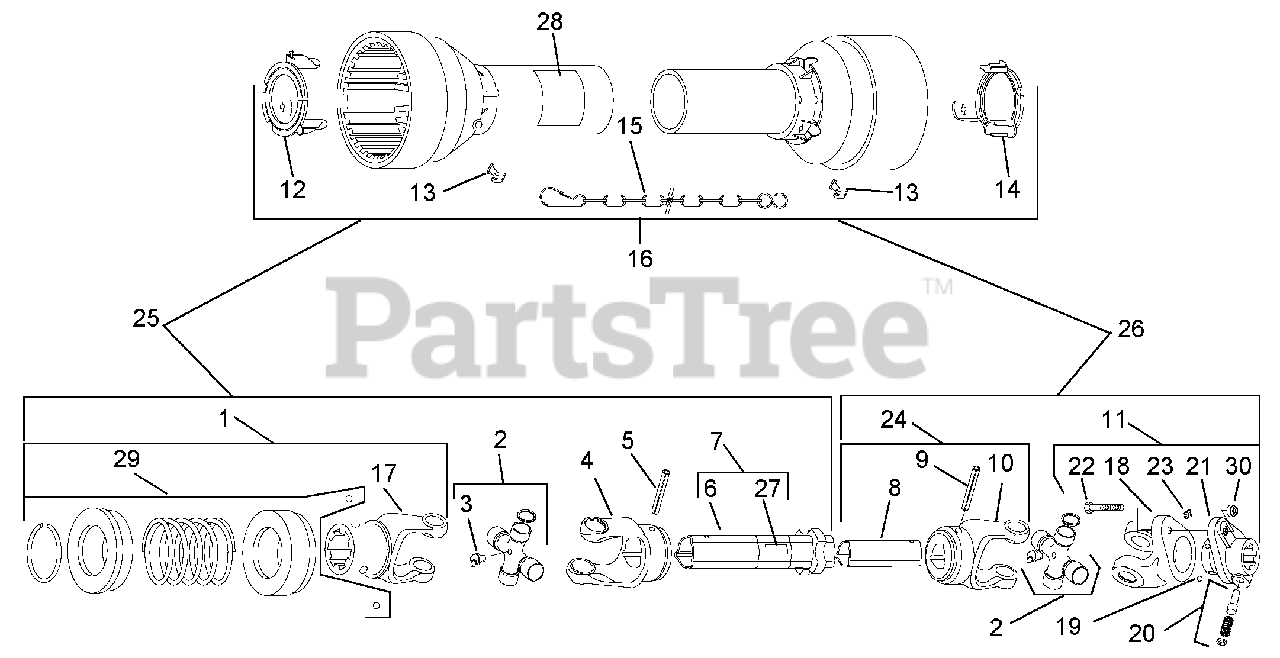

Center Driveshaft Parts Diagram

  • Title

1

Gravely 02863400

COMPLETE COLLAR YOKE; C1 76801

Note: (Includes Items 17 and 29)

$

$

Not available

2

Gravely 02838500

CROSS & BRG KIT 64610

Note: (Includes Item 3)

$

$

Not available

3

Gravely 07001406

GREASE FITTING 45 DEG 8M 63956

$

$

Not available

4

Gravely 02840100

OUTER TUBE YOKE 66112

$

$

Not available

5

Gravely 05800119

ROLLPIN FOR INNER TUBE 66869

$

$

Not available

6

Gravely 02858300

BUSH W/GREASE FITTING 76072

$

$

Not available

7

Gravely 02864000

COMPLETE OUTER TUBE 76847

Note: (Includes Items 6 and 27)

$

$

Not available

8

Gravely 07100640

INNER TUBE 76848

$

$

Not available

9

Gravely 05800117

ROLL PIN FOR INNER TUBE 66110

$

$

Not available

10

Gravely 07100632

INNER TUBE YOKE 66109

$

$

Not available

11

Gravely 02861500

COMPLETE SHEAR BOLT B02 76616

Note: (Includes Items 18 - 23 and 30)

$

$

Not available

12

Gravely 05400638

BEARING;OUTER SHIELD 87995

$

$

Not available

13

Gravely 02885000

FASTENER;SHIELD 87992

$

$

Not available

14

Gravely 05400637

BEARING; INNER SHIELD 87993

$

$

Not available

15

Gravely 02839000

SAFETY CHAIN 64814

$

$

Not available

16

Gravely 02864100

COMPLETE GUARD W/INSTRUC 76849

Note: (Includes Items 12 - 15 and 28)

$

$

Not available

17

Yoke (Comer # 76282)

Note: (Comer # 76282)

$

$

Not available

18

Gravely 02861700

YOKE FOR B02 (46 X M10) 76618

$

$

Not available

19

Gravely 02859300

BALL 76202

$

$

Not available

20

Gravely 02858200

PUSH PIN SET 1 3/8 76062

$

$

Not available

21

Gravely 07100638

HUB B02 (46 X M10) 76619

$

$

Not available

22

Gravely 05901007

HHCS M10 X 1.5 X 55 G8 44525

$

$

Not available

23

Gravely 02838200

GREASE ZERK (BONDIOLI & 63946

$

$

Not available

24

Gravely 02864200

MALE TUBE YOKE W/ROLL PI 76850

Note: (Includes Items 8 - 10)

$

$

Not available

25

Gravely 02864300

HALF FEMALE SHAFT USE 02862200

Note: (Includes Items 1, 2, 4, 5, 7, and 16)

$

$

Not available

26

Gravely 02864400

HALF MALE SHAFT USE 02862200

Note: (Includes Items 2, 11, 16 and 24)

$

$

Not available

27

Gravely 02868800

DANGER DECAL 78786

$

$

Not available

28

Gravely 02868600

DANGER DECAL 78608

$

$

Not available

29

Gravely 02241400

BALL COLLAR KIT 1 3/8 50017480

$

$

Not available

30

Gravely 06500508

HEX NUT M10 X 1.5 CP ZP 44342

$

$

Not available

N/A

Gravely 02862200

DRIVELINE ASSFTY.; SERIE 76678

Note: (Includes Items 1 - 30)

$633.99

$

Usually ships in 4-12 days
