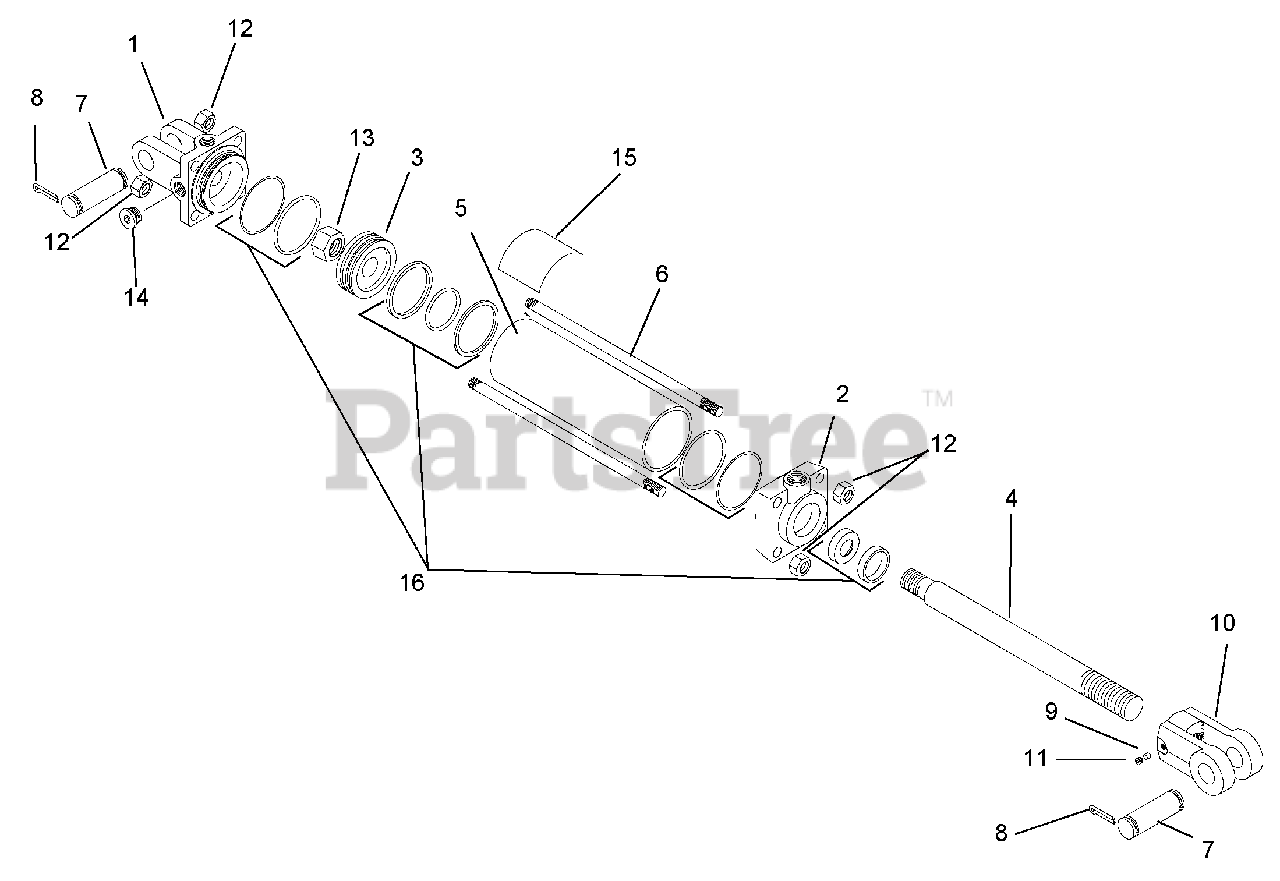

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Deck-Lift Cylinders Parts Diagram

Tow-Behind Finishing Mower

Deck-Lift Cylinders Parts Diagram

  • Title

1

Gravely 02929900

CLEVIS CAP 3.0 ORB 95440

$

$

Not available

2

Gravely 02929800

ROD CAP 3.0 X 1 1/4 ORB 95439

$

$

Not available

3

Gravely 02242400

PISTON 3.00 PSP 2 W/R 50017627

$

$

Not available

4

Gravely 02929500

ROD-CYL 1.25 X 12 95436

Note: (Side Units)

$

$

Not available

Gravely 02929300

ROD 1.25 DIA ASAE 95431

Note: (Rear Unit)

$

$

Not available

5

Gravely 02929600

H6142 CYL TUBE 3.0 X 12 95437

Note: (Side Units)

$

$

Not available

Gravely 02930700

H6138 CYL. TUBE 3.0 X 8 95497

Note: (Rear Unit)

$

$

Not available

6

Gravely 02929700

H6682 R11 TIE ROD 1/2 X 95438

Note: (Side Units)

$

$

Not available

Gravely 02930800

H6678 R11 TIE ROD 1/2 X 95498

Note: (Rear Unit)

$

$

Not available

7

Gravely 02929200

H5552 PIN; 1 DIA FOR COT 95425

$

$

Not available

8

Gravely 06700120

COTTER PIN 3/16 X 1 1 21020614

$

$

Not available

9

Gravely 06500614

THRD LOCK-NYLON 95433

$

$

Not available

10

Gravely 06800034

ROD CLEVIS 1 1/4 (1PIN) 95428

Note: (1 Pin)

$

$

Not available

11

Gravely 02929000

SC SCKT SET 3/8 UNC X 1/ 95422

$

$

Not available

12

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

13

Gravely 02928900

NUT; HEX 1-14 UNF GRA 95421

$

$

Not available

14

Gravely 02929400

PLUG 3/4-16 UNF SOC.HD.S 95435

$

$

Not available

15

Gravely 02929100

LABEL; CAUTION 95423

$

$

Not available

16

Gravely 05600238

SEAL KIT 50017622

$

$

Not available
