895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Divider Gearbox Parts Diagram

Tow-Behind Finishing Mower

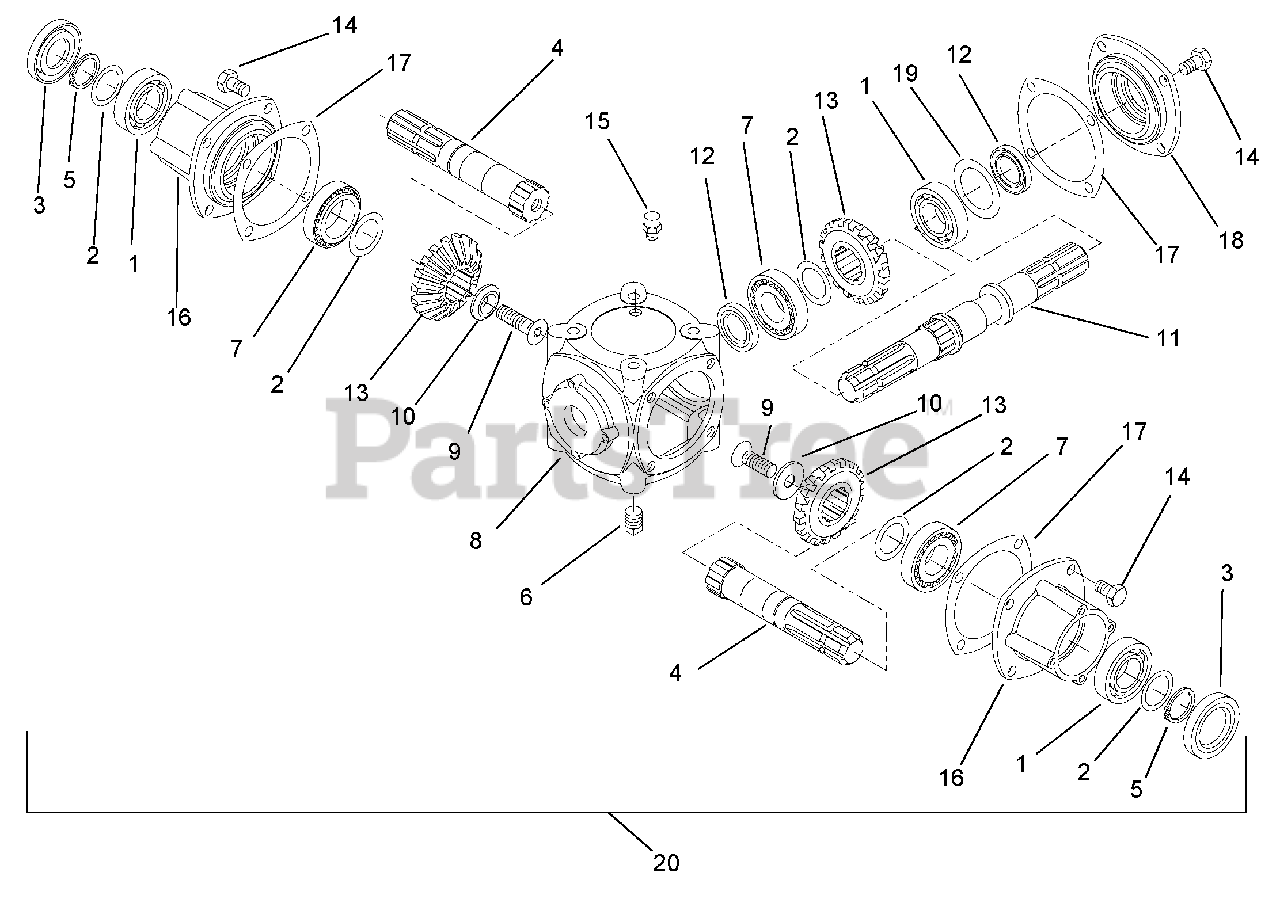

Divider Gearbox Parts Diagram

  • Title

1

Gravely 05400626

Bearing

$

$

Not available

2

Gravely 02070900

Kit, Shim

$

$

Not available

3

Gravely 05600423

Seal, Oil

$

$

Not available

4

Gravely 02845400

Shaft

$

$

Not available

5

Gravely 05700113

Ring, Retaining

$

$

Not available

6

Gravely 02842900

Plug, OIl

$

$

Not available

7

Gravely 05400630

Bearing

$

$

Not available

8

Gravely 02845500

Casing

$

$

Not available

9

Gravely 05901201

Bolt M12 x 40; 10.9

$

$

Not available

10

Gravely 06400735

Washer

$

$

Not available

11

Gravely 02845600

Shaft

$

$

Not available

12

Gravely 05600428

Seal, Oil

$

$

Not available

13

Gravely 02842100

Gear Z.18 M.5

$

$

Not available

14

Gravely 05600428

Seal, Oil

$

$

Not available

15

Gravely 02875000

Plug, Valve Vent

$

$

Not available

16

Gravely 02841900

Housing, Shaft

$

$

Not available

17

Gravely 05600426

Gasket

$

$

Not available

18

Gravely 03824100

Cover, Gearbox Rear

$

$

Not available

19

Gravely 02844800

Shim .3 mm

$

$

Not available

Gravely 02844900

Shim .4 mm

$

$

Not available

Gravely 02845000

Shim .5 mm

$

$

Not available

20

Gravely 02845251

Gearbox Assembly, Center (Includes Items 1 – 19)

Note: (Includes Items 1 – 19)

$

$

Not available
