895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Divider Gearbox Parts Diagram

Tow-Behind Finishing Mower

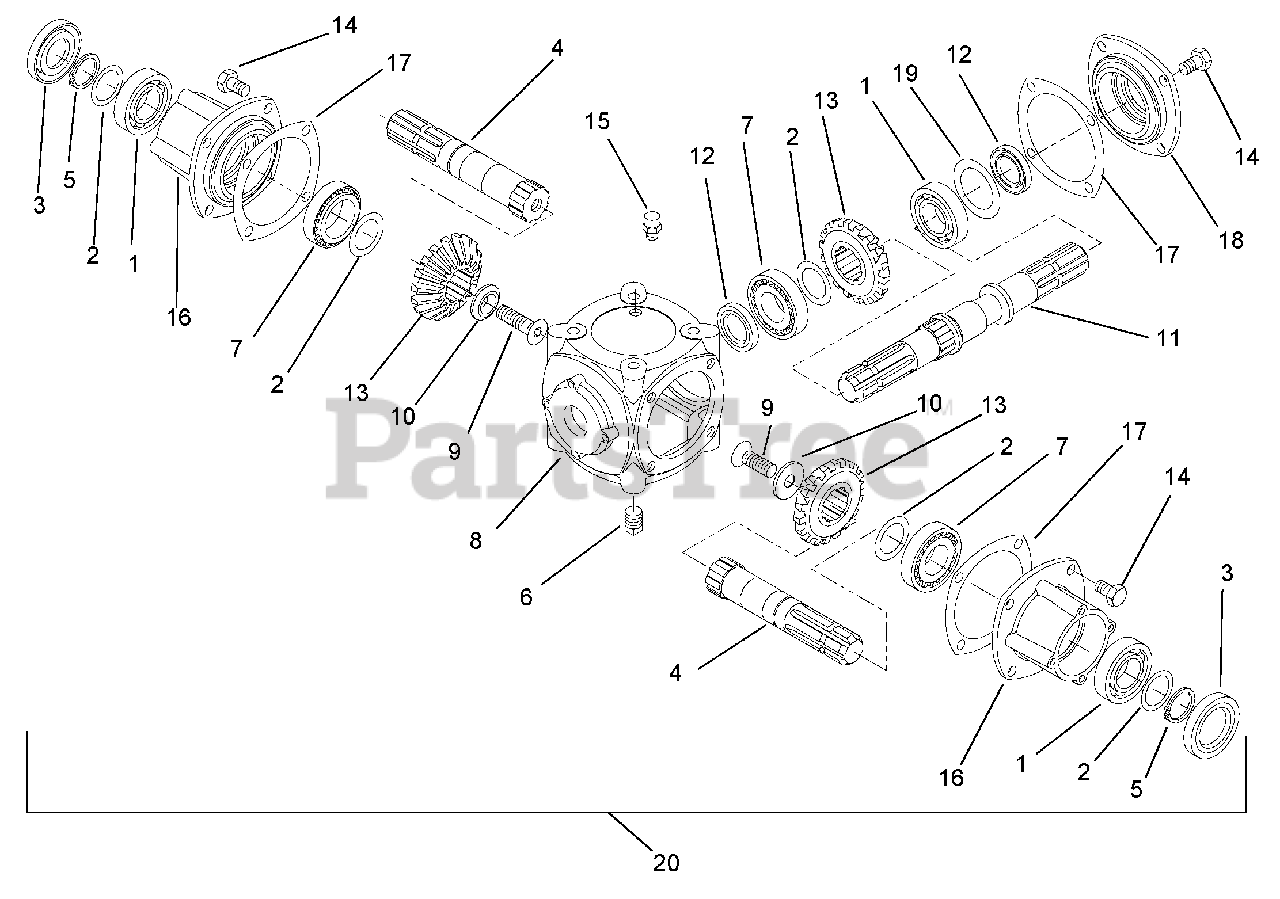

Divider Gearbox Parts Diagram

  • Title

1

Gravely 05400626

BEARING 70229

$

$

Not available

2

Gravely 02070900

SHIM KIT F7502875

$

$

Not available

3

Gravely 05600423

OIL SEAL 36X72X10 70108

$

$

Not available

4

Gravely 02845400

SHAFT 70921

$

$

Not available

5

Gravely 05700113

RETAINING RING 70110

$

$

Not available

6

Gravely 02842900

OIL PLUG 70292

$

$

Not available

7

Gravely 05400630

BEARING 30207 (5002231 70797

$

$

Not available

8

Gravely 02845500

CASING 70922

$

$

Not available

9

Gravely 05901201

BOLT; M12 X 40; 10.9 70923

$

$

Not available

10

Gravely 06400735

WASHER 70446

$

$

Not available

11

Gravely 02845600

SHAFT 70924

$

$

Not available

12

Gravely 05600428

OIL SEAL 70698

$

$

Not available

13

Gravely 02842100

GEAR Z.18 M.5 70249

$

$

Not available

14

Gravely 05600428

OIL SEAL 70698

$

$

Not available

15

Gravely 02875000

VALVE VENT PLUG 80538

$

$

Not available

16

Gravely 02841900

SHAFT HOUSING 70132

$

$

Not available

17

Gravely 05600426

GASKET 70261

$

$

Not available

18

Gravely 03824100

COVER, GEARBOX REAR

$

$

Not available

19

Gravely 02844800

SHIM 60.3MM ID X 71.7M 70639

$

$

Not available

Gravely 02844900

SHIM 60.3MM ID X 71.7M 70640

$

$

Not available

Gravely 02845000

SHIM 71.7 70641

$

$

Not available

20

Gravely 02845251

GEARBOX 70833

Note: (Includes Items 1 - 19)

$

$

Not available
