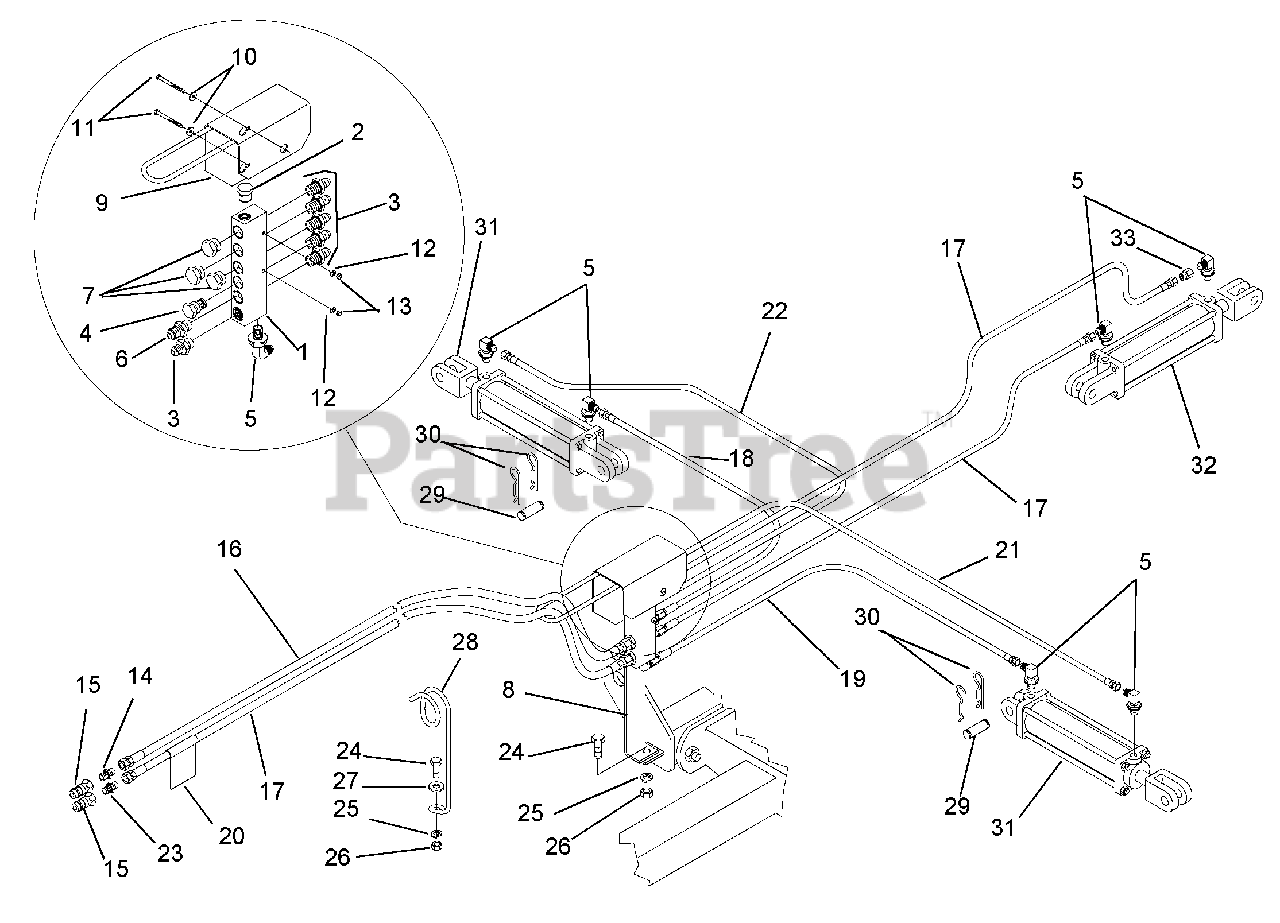

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Hydraulic Assembly Parts Diagram

Tow-Behind Finishing Mower

Hydraulic Assembly Parts Diagram

  • Title

1

Gravely 02243600

VALVE BODY 50017830

$

$

Not available

2

Gravely 07500025

9/16 O-RING BOSS PLUG 25H42303

$

$

Not available

3

Gravely 07001402

HYD FITTING ADAPTER 3/4- 53340

$

$

Not available

4

Gravely 02243700

CHECK VALVE 50017834

$

$

Not available

5

Gravely 02111900

90 DEG.ELBOW 14-40-98

$

$

Not available

6

Gravely 07001403

HYD FITTING ADAPTER 3/4- 53341

$

$

Not available

7

Gravely 02833400

PLUG ASSEMBLY KONTAK # 1 62006

$

$

Not available

8

Gravely 02940051

BRACKET, VALVE 97666

$

$

Not available

9

Gravely 02235151

SHIELD WELDMENT 50017007

$

$

Not available

10

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available

11

Gravely 05900918

HEX HD CPSC 1/4-20X2-1/2 44000

$

$

Not available

12

Gravely 06300034

LOCKWASHER 1/4 CP PG 1/4 15905

$

$

Not available

13

Gravely 06500523

SRATD FLNG HEX NUT 1/4-20 CP

$

$

Not available

14

Gravely 02157400

STRAIGHT ADAPTER-MALE 25D25683

$

$

Not available

15

Gravely 02542000

COUPLER 1/2 FNPT QD 50022092

$

$

Not available

16

Gravely 07001404

HYD HOSE ASSY 72IN 61469

$

$

Not available

17

Gravely 07001340

HYD.HOSE ASSY 72IN 9/16 53329

$

$

Not available

18

Gravely 07000838

HYD. HOSE ASSY. 25H41710

$

$

Not available

19

Gravely 07000839

HYD. HOSE 25H46123

$

$

Not available

20

Gravely 02898900

SAFETY TAG 94878

$

$

Not available

21

Gravely 07001405

HYD.HOSE ASSY 62430

$

$

Not available

22

Gravely 07000837

HYD. HOSE ASSY. 25H41146

$

$

Not available

23

Gravely 02155800

STRAIGHT ADAPTER-MALE 24-6-434

$

$

Not available

24

Gravely 05900704

HEX HD CPSC 5/8-11 X 1-3/4 CP

$

$

Not available

25

Gravely 06300038

LOCKWASHER 5/8 CP 19486

$

$

Not available

26

Gravely 06500426

HEX NUT 5/8 NF USE 06500532

$

$

Not available

27

Gravely 06400427

FLATWASHER 5/8 USS ZP 15925

$

$

Not available

28

Gravely 02951551

HOSE SUPPORT

$

$

Not available

29

Gravely 02929200

H5552 PIN; 1 DIA FOR COT 95425

$

$

Not available

30

Gravely 06700120

COTTER PIN 3/16 X 1 1 21020614

$

$

Not available

31

Gravely 02948100

MONARCH HYDRAULIC CYLIND 99564

Note: (see Deck-Lift Cylinders on page 52)

$

$

Not available

32

Gravely 02241700

MONARCH HYDRAULIC CYL 50017500

Note: (see Deck-Lift Cylinders on page 52)

$

$

Not available

33

Gravely 02233000

RESTRICTOR UNION 50015044

$

$

Not available
