895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Input Driveshaft Parts Diagram

Tow-Behind Finishing Mower

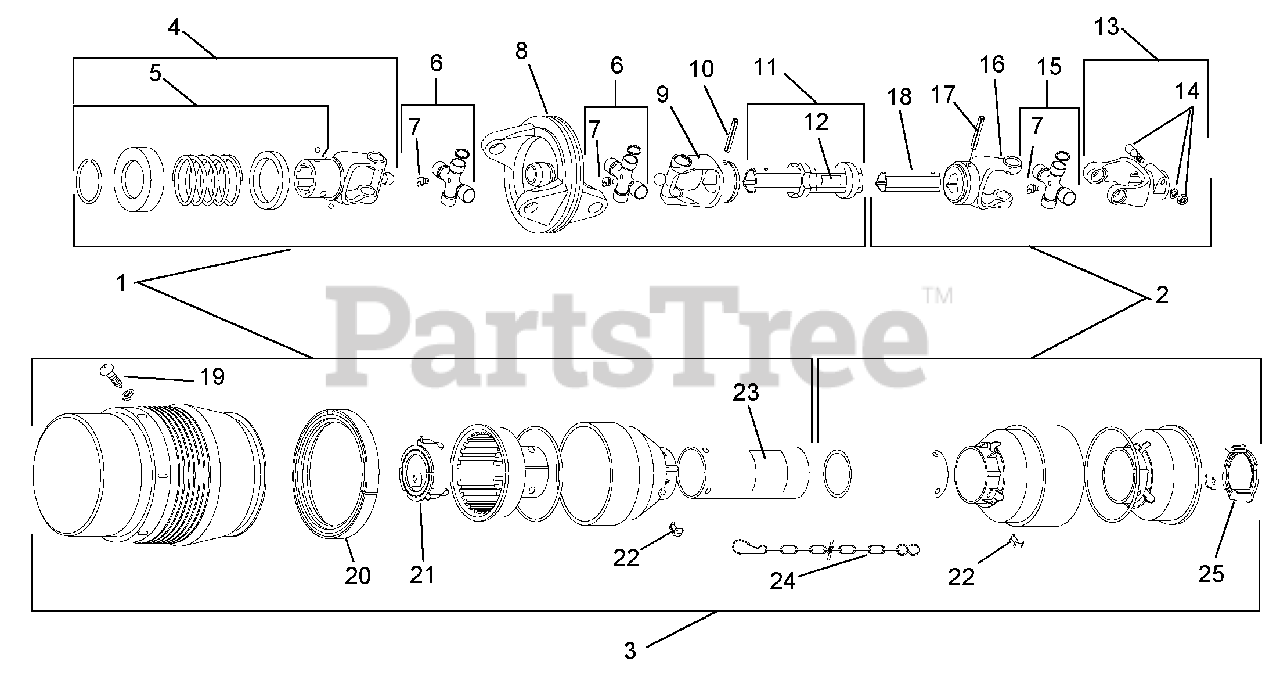

Input Driveshaft Parts Diagram

  • Title

1

Gravely 02860200

PTO SFT.TRAC.HALF USE 02893000

$

$

Not available

2

Gravely 02860300

HALF MALE SHAFT USE 02893000

$

$

Not available

3

Gravely 02860100

COMPLETE SHIELD ASSY 76514

$

$

Not available

4

Gravely 02241800

COMPLETE COLLAR YOKE 50017505

$

$

Not available

5

Gravely 02241400

BALL COLLAR KIT 1 3/8 50017480

$

$

Not available

6

Gravely 02859500

CROSS JOURNAL SET; CV 76420

$

$

Not available

7

Gravely 07001406

GREASE FITTING 45 DEG 8M 63956

$

$

Not available

8

Gravely 02859600

WIDE ANGLE DOUBLE YOKE 76421

$

$

Not available

9

Gravely 02859700

OUTER YOKE 76471

$

$

Not available

10

Gravely 05800118

ROLLPIN FOR OUTER TUBE 66866

$

$

Not available

11

Gravely 02859800

COMPLETE OUTER TUBE 76474

$

$

Not available

12

Gravely 02868800

DANGER DECAL 78786

$

$

Not available

13

Gravely 02857900

COMPLETE YOKE 152 76056

$

$

Not available

14

Gravely 06700133

TAPERED PIN SET 1 3/8 76064

$

$

Not available

15

Gravely 02838600

CROSS AND BRG KIT 64663

$

$

Not available

16

Gravely 02840200

YOKE FOR INNER TUBE 66870

$

$

Not available

17

Gravely 05800119

ROLLPIN FOR INNER TUBE 66869

$

$

Not available

18

Gravely 07100634

INNER TUBE 76475

$

$

Not available

19

Gravely 05901207

SCREW/WASHER KIT 76362

$

$

Not available

20

Gravely 05400631

BEARING RING 76423

$

$

Not available

21

Gravely 02858000

GUARD RETAINING COLLAR 76057

$

$

Not available

22

Gravely 02885000

FASTENER;SHIELD 87992

$

$

Not available

23

Gravely 02868600

DANGER DECAL 78608

$

$

Not available

24

Gravely 02839000

SAFETY CHAIN 64814

$

$

Not available

25

Gravely 02858100

GUARD RETAINING COLLAR 76059

$

$

Not available

N/A

Gravely 02893000

DRIVELINE 93063

$

$

Not available
