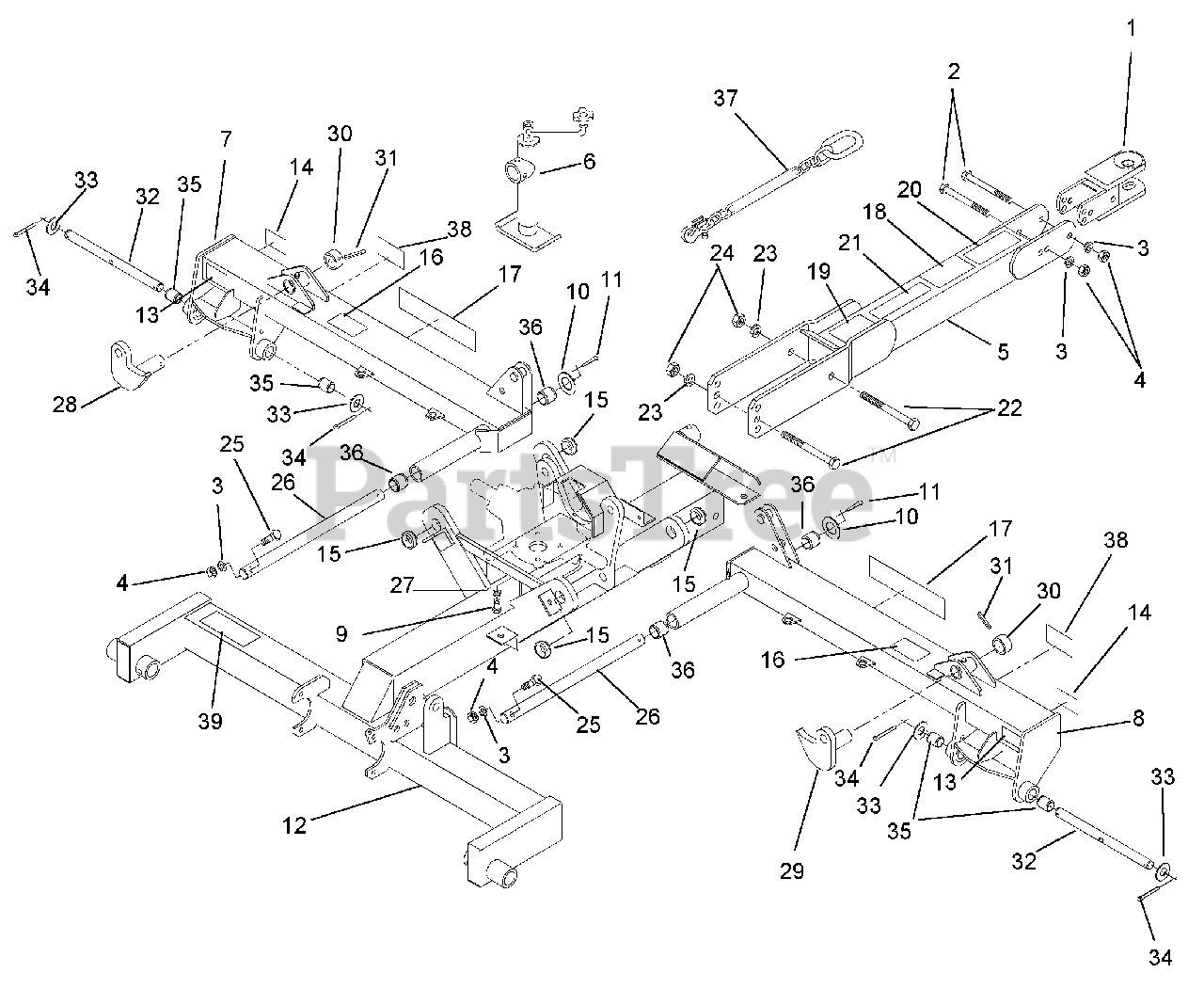

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Main Frame & Wing Assembly Parts Diagram

Tow-Behind Finishing Mower

Main Frame & Wing Assembly Parts Diagram

  • Title

1

Gravely 02938653

HITCH WELDMENT 97143

$

$

Not available

2

Gravely 05900825

HEX HD CPSC 5/8-11 X 6 G 20923

$

$

Not available

3

Gravely 06300038

LOCKWASHER 5/8 CP 19486

$

$

Not available

4

Gravely 06500431

HEX NUT 5/8-11 CP 15563

$

$

Not available

5

Gravely 03288900

TONGUE WITH DECALS 02626400

$

$

Not available

6

Gravely 02155900

JACK 24D25128

$

$

Not available

7

Gravely 02626500

WING ASM WITH DECALS; 50024784

$

$

Not available

8

Gravely 03289300

WING ASSY; RH W/DECAL 02626600

$

$

Not available

9

Gravely 07001408

CAPSCREW M12X25MM 70113

$

$

Not available

10

Gravely 06400508

FLATWASHER 1-1/4 SAE ZP 20567

$

$

Not available

11

Gravely 06700104

COTTER PIN 1/4 X 1 3/4 15474

$

$

Not available

12

Gravely 02250253

FRAME WELDMENT 50018633

$2064.99

$

Usually ships in 4-12 days

0

13

Gravely 02823500

RED REFLECTOR 53316

$

$

Not available

14

Gravely 02823400

AMBER REFLECTOR 53315

$38.99

$

Usually ships in 4-12 days

0

15

Gravely 05500620

SPRING BUSHING; 1 1/2 50020352

$

$

Not available

16

Gravely 02881700

WARNING DECAL 83343

$

$

Not available

17

Gravely 05239900

DECAL, 9.5" GRAVELY LOGO

$9.49

$

In Stock, Qty 12

0

18

Gravely 02880900

WARNING DECAL 82683

$

$

Not available

19

Gravely 02884400

DRAWBAR DECAL 87317

$

$

Not available

20

Gravely 02884500

IMPORTANT DECAL 87340

$

$

Not available

21

Gravely 02831900

CAUTION DECAL 540 RPM 60873

$

$

Not available

22

Gravely 05900924

HEX HD CPSC 3/4-10 X 7 Z 44090

$

$

Not available

23

Gravely 06300026

LOCKWASHER 3/4 CP PG 3/4 R 146

$

$

Not available

24

Gravely 06500529

HEX NUT 3/4-16 CP 44704

$

$

Not available

25

Gravely 05900919

HEX HD CPSC 5/8-11 X 2-1/2

$

$

Not available

26

Gravely 02381600

PIN; PIVOT 50020226

$

$

Not available

27

Gravely 05900805

HHCS 1/2-13 X 1 G5 20054

$

$

Not available

28

Gravely 02237051

SWIVEL WELDMENT, LH 50017147

$

$

Not available

29

Gravely 02236451

SWIVEL WELDMENT, RH 50017140

$

$

Not available

30

Gravely 02236951

COLLAR 50017145

$

$

Not available

31

Gravely 05800108

ROLL PIN 3/8IN X 2-1/2IN 20327

$

$

Not available

32

Gravely 02386500

PIN 50021164

$

$

Not available

33

Gravely 06400507

FLATWASHER 1 SAE ZP 1-1/ 20376

$

$

Not available

34

Gravely 06700104

COTTER PIN 1/4 X 1 3/4 15474

$

$

Not available

35

Gravely 05500625

SPRING BUSH 1-1/4 X 1 50021149

$

$

Not available

36

Gravely 05500621

SPRING BUSHING 1 1/2 50020353

$

$

Not available

37

Gravely 02892100

SAFETY TOW CHAIN 91091

$

$

Not available

38

Gravely 02670300

DECAL; FLOAT INFORMAT 50026940

$

$

Not available

39

Gravely 02673300

DECAL; LUBRICATION CH 50029494

$

$

Not available
