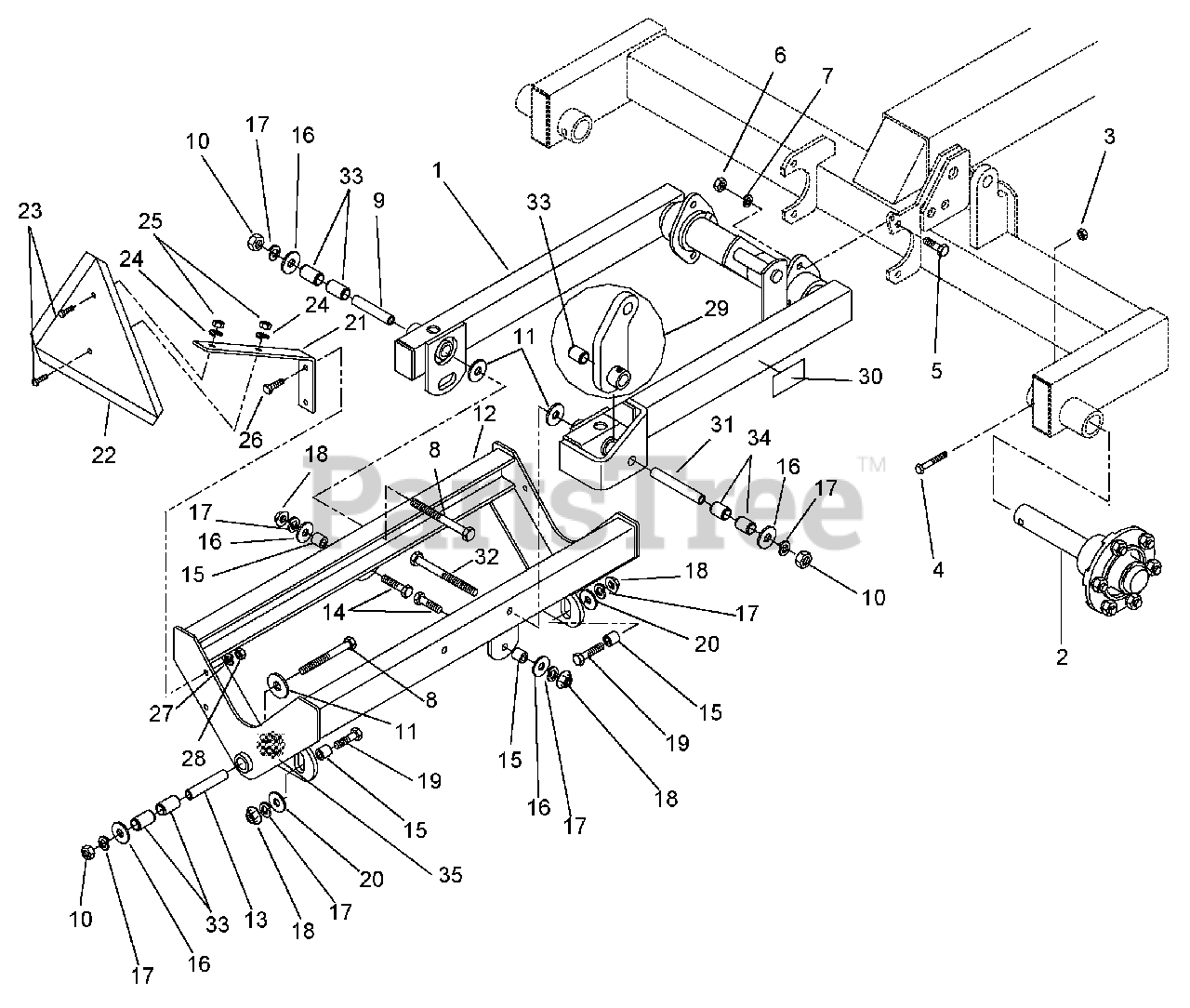

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Rear Arm Assembly Parts Diagram

Tow-Behind Finishing Mower

Rear Arm Assembly Parts Diagram

  • Title

1

Gravely 03289900

REAR ARM ASSEMBLY 50023270

Note: (Includes items 33 and 34)

$

$

Not available

2

Gravely 07100528

HUB & SPINDLE ASSY 50021320

$

$

Not available

3

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

4

Gravely 05900823

HEX HD CPSC 1/2-13 X 3 G 20864

$

$

Not available

5

Gravely 05900703

HHCS 1/2-13 X 1-1/2 G5 15093

$

$

Not available

6

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06500425

HEX NUT 1/2-13 UNPLATED 15508

$

$

Not available

8

Gravely 05900815

HEX HD CPSC 1/2-13 X 5-1/2

$

$

Not available

9

Gravely 02381500

USE PART # 05500618 50020217

$

$

Not available

10

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

11

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

12

Gravely 02385853

CRADLE WELDMENT 50021135

$403.99

$

Usually ships in 4-12 days

0

13

Gravely 05500618

BUSHING; WEAR 50020221

$

$

Not available

14

Gravely 05900809

HEX HD CPSC 1/2-13 X 2 G 20110

$

$

Not available

15

Gravely 02945151

LIMIT SPACER 98725

$

$

Not available

16

Gravely 06400422

FLATWASHER 1/2 USS ZP 15916

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

19

Gravely 05901006

HHCS 1/2 X 2 GR5 44513

$

$

Not available

20

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 02897351

SMV BRACKET 94360

$13.99

$

Usually ships in 4-12 days

0

22

Gravely 02897200

SMV SIGN 94359

$

$

Not available

23

Gravely 05900618

HEX HD CPSC 1/4-20 X 3/4

$

$

Not available

24

Gravely 06300034

LOCKWASHER 1/4 CP PG 1/4 15905

$

$

Not available

25

Gravely 06500429

HEX NUT 1/4-20 CP 15531

$

$

Not available

26

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

28

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

29

Gravely 02672400

REAR SWIVEL ASSEMBLY 50028252

$

$

Not available

30

Gravely 02670300

DECAL; FLOAT INFORMAT 50026940

$

$

Not available

31

Gravely 05500616

BUSHING; WEAR 50020219

$

$

Not available

32

Gravely 05900819

HHCS 1/2-13 X 6 1/2 G5 20580

$

$

Not available

33

Gravely 05500619

SPRING BUSHING 1 X 3/ 50020350

$

$

Not available

34

Gravely 05500623

SPRING BUSHING; 1 X 3 50021050

$

$

Not available

35

Gravely 08000507

DECAL, GRAVELY HERITAGE-SMALL

$25.99

$

Usually ships in 4-12 days

0
