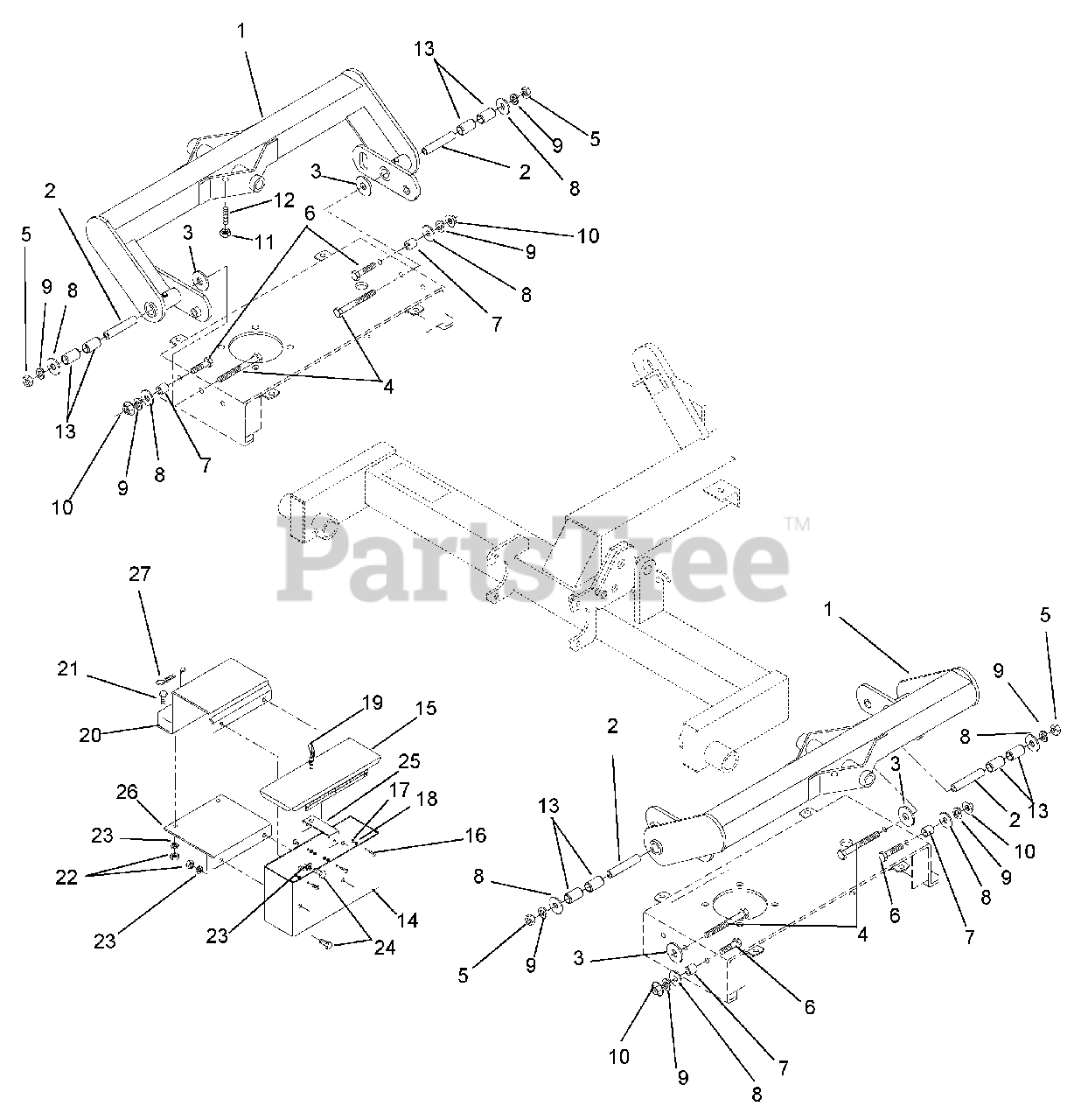

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Rear Frame Assembly Parts Diagram

Tow-Behind Finishing Mower

Rear Frame Assembly Parts Diagram

  • Title

1

Gravely 02385100

BRKT WLDMNT DECK ROLL 50021120

Note: (Dick, painted part not yet in AS400)

$

$

Not available

2

Gravely 05500618

BUSHING; WEAR 50020221

$

$

Not available

3

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

4

Gravely 05900815

HEX HD CPSC 1/2-13 X 5-1/2

$

$

Not available

5

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

6

Gravely 05901006

HHCS 1/2 X 2 GR5 44513

$

$

Not available

7

Gravely 02945100

LIMIT SPACER 98725

$

$

Not available

8

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

9

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

11

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

12

Gravely 06000113

SET SCREW 1/2-13 x 1-3/4 44357

$

$

Not available

13

Gravely 05500619

SPRING BUSHING 1 X 3/ 50020350

$

$

Not available

14

Gravely 02627251

BOX WELDMENT 50024991

$

$

Not available

15

Gravely 02944751

TOP WELDMENT 98298

$

$

Not available

16

Gravely 05900915

SLT PN HD MACH SCR #10 4140604

$

$

Not available

17

Gravely 06500609

HEX NUT #10 CP 8150600

$

$

Not available

18

Gravely 06300037

LOCKWASHER NO. 10 ZP 16040600

$

$

Not available

19

Gravely 02943700

SWELL LATCH 98284

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 02626951

BRCKT WLDMNT, UPPER 50024988

$

$

Not available

21

Gravely 05900731

HEX HD CPSC 3/8-16 X 3/4 19100

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

23

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

24

Gravely 05901107

HEX HD CPSC 3/8 X 3/4 44721

$

$

Not available

25

Gravely 02947151

STRAP 99459

$

$

Not available

26

Gravely 02627051

BRACKET, LOWER MTG 50024989

$

$

Not available

27

Gravely 02106400

PIN PRESTO SPRING CLIP 1273

$

$

Not available
