895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Roller Assembly Parts Diagram

Tow-Behind Finishing Mower

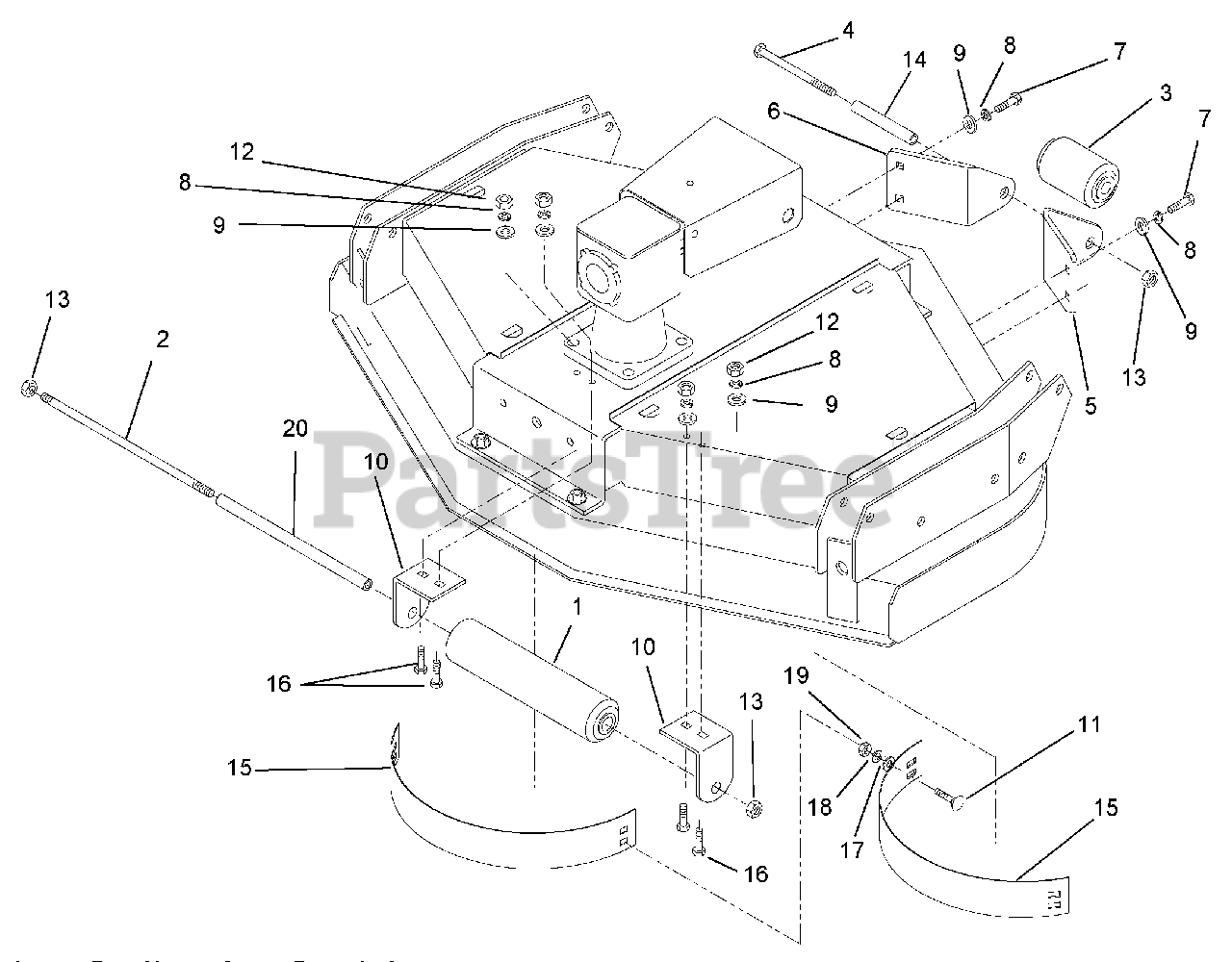

Roller Assembly Parts Diagram

  • Title

1

Gravely 02928700

Roller, Large

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 06000137

Stud

$65.99

$

Usually ships in 4-12 days

0

3

Gravely 02868900

Roller, Small

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 05900819

Cap Screw, Hex Head .50-13 x 6.5

$

$

Not available

5

Gravely 02386851

Mount, Roller Right

$

$

Not available

6

Gravely 02386951

Mount, Roller Left

$

$

Not available

7

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06300030

Washer, Lock .38

$

$

Not available

9

Gravely 06400417

Washer, Flat .38

$

$

Not available

10

Gravely 02387051

Bracket, Roller

$

$

Not available

11

Gravely 06200104

Bolt, Carriage .38-16 x .75

$

$

Not available

12

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

13

Gravely 02116500

Nut, Lock .50-13

$

$

Not available

14

Gravely 05500626

Sleeve

$30.99

$

Usually ships in 4-12 days

0

15

Gravely 02380751

Baffle, Bolt-On Rear

$

$

Not available

16

Gravely 06200031

Bolt, Carriage .38-16 x 1

$

$

Not available

17

Gravely 06400417

Washer, Flat .38

$

$

Not available

18

Gravely 06300030

Washer, Lock .38

$

$

Not available

19

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

20

Gravely 05500627

Sleeve

$26.99

$

Usually ships in 4-12 days

0
