895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Roller Assembly Parts Diagram

Tow-Behind Finishing Mower

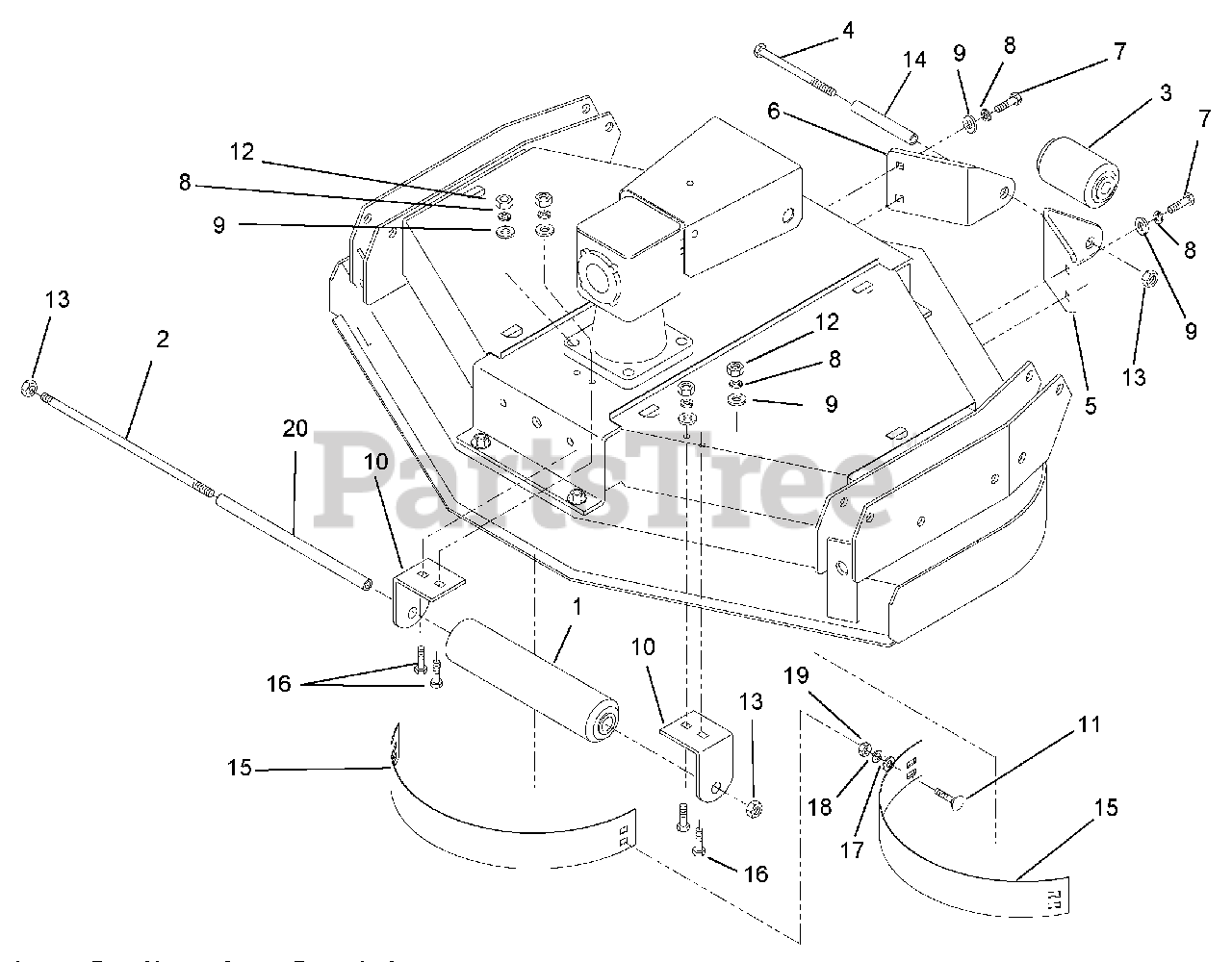

Roller Assembly Parts Diagram

  • Title

1

Gravely 02928700

ROLLER ASSEMBLY 95415

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 06000137

STUD 50021173

$65.99

$

Usually ships in 4-12 days

0

3

Gravely 02868900

ROLLER ASSEMBLY 79057

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 05900819

HHCS 1/2-13 X 6 1/2 G5 20580

$

$

Not available

5

Gravely 02386851

RIGHT ROLLER MOUNT 50021168

$

$

Not available

6

Gravely 02386951

LEFT ROLLER MOUNT 50021169

$

$

Not available

7

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

9

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

10

Gravely 02387051

ROLLER BRACKET 50021171

$

$

Not available

11

Gravely 06200104

CARR BOLT 3/8 X 3/4 G5 5161206

$

$

Not available

12

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

13

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

14

Gravely 05500626

SLEEVE 50021170

$30.99

$

Usually ships in 4-12 days

0

15

Gravely 02380751

BAFFLE; BOLT-ON REAR 50020073

$

$

Not available

16

Gravely 06200031

CARR BOLT 3/8-16 X 1 G5 44109

$

$

Not available

17

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

18

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

19

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

20

Gravely 05500627

SLEEVE 50021172

$26.99

$

Usually ships in 4-12 days

0
