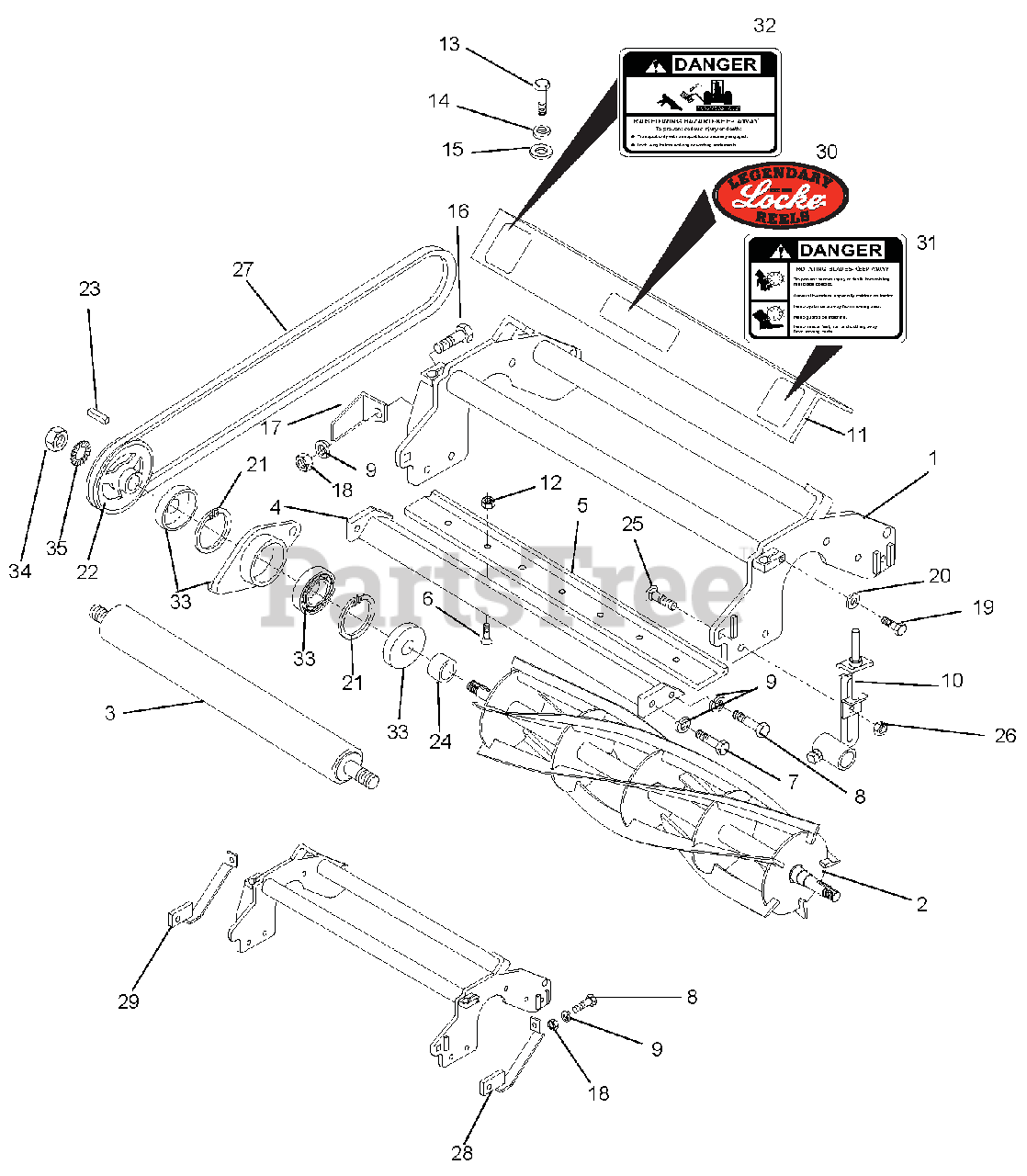

895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Cutting Units Parts Diagram

Tow-Behind Reel Mower Attachment

Cutting Units Parts Diagram

  • Title

1

Gravely 02548851

REEL FRAME WELDMENT #1

$

$

Not available

Gravely 02550251

REEL FRAME WELDMENT #2

$

$

Not available

Gravely 02550451

REEL FRAME WELDMENT #3

$

$

Not available

2

Gravely 79516900

REEL,LK/30"X4BLD/TRMBRWR,LP,BH

$

$

Not available

Gravely 79517000

REEL,LK30"X5BLD/TRMBRWR,LP,BH

$

$

Not available

Gravely 79517100

REEL,LK 30"X6BLD/TRMBRWR,LP,BH

$

$

Not available

Gravely 79517200

REEL,LK/30"X7BLD/TRMBRWR,LP,BH

$

$

Not available

Gravely 79517300

REEL,LK 30"X8BLD/TRMBRWR,LP,BH

$

$

Not available

Gravely 79517400

REEL,LK/30"X9BLD/TRMBRWR,LP,BH

$

$

Not available

3

Gravely 02690300

ROLLER ASSY:SMOOTH 3I 50037658

$

$

Not available

Gravely 02687000

ROLLER ASSY:GROOVED 3 50036116

$

$

Not available

4

Gravely 02544951

BED BAR WELDMENT

$

$

Not available

5

Gravely 02544500

BEDKNIFE 50022134

$

$

Not available

6

Gravely 02221600

HEX SOC FHCS 5/16-18 X 1

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901021

HEX HD CPSC 7/16-14 X 1 G5 ZP

$

$

Not available

8

Gravely 05901022

HHCS 7/16-14 X 1-1/4 G5 44614

$

$

Not available

9

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available

10

Gravely 02546500

ROLLER BRACKET ASSEMB 50022154

$

$

Not available

Gravely 02546700

ROLLER BRACKET ASSEMB 50022156

$

$

Not available

11

Gravely 02559100

SHIELD ASSEMBLY REEL 50022325

$

$

Not available

Gravely 02555900

SHIELD ASSEMBLY REE 50022284

$

$

Not available

12

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

13

Gravely 05900620

HHCS 5/16 X 3/4 G5 ZP 1161006

$

$

Not available

14

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

15

Gravely 06400419

FLATWASHER 5/16 ZP 15907

$

$

Not available

16

Gravely 05901022

HHCS 7/16-14 X 1-1/4 G5 44614

$

$

Not available

17

Gravely 07333451

PULLEY SCRAPER R.H.

$

$

Not available

Gravely 07333551

PULLEY SCRAPER L.H.

$

$

Not available

18

Gravely 06500611

HEX NUT 7/16 CP 8151400

$

$

Not available

19

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

21

Gravely 05700038

RETAINING RING 2 1/ 50022185

$

$

Not available

22

Gravely 02375951

SHEAVE, 7/8 BORE X 4.40 PD

$

$

Not available

23

Gravely 06600113

KEY SQ 1/4X1/4X1 USE 06600207

$

$

Not available

24

Gravely 06400625

SPACER DRIVE SIDE 50022121

$

$

Not available

25

Gravely 06200107

CARR BOLT 1/2 X 1-1/2 5161614

$

$

Not available

26

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

27

Gravely 07200340

V-BELT B64 50022097

$

$

Not available

28

Gravely 02543451

SKID SHOE WELDMENT RH

$

$

Not available

29

Gravely 02543551

SKID SHOE WELDMENT LH

$

$

Not available

30

Gravely 04299300

DECAL,LEGEND'Y LOCKE REELS 9.5

$

$

Not available

31

Gravely 02541200

DANGER DECAL 50022077

$

$

Not available

32

Gravely 02500000

DANGER DECAL 50022075

$

$

Not available

33

See Reel Housing Bearing Flange - Non-Drive Side on page 35.

$

$

Not available

34

Gravely 02223800

JAM NUT 3/4 CP NF 44606

$

$

Not available

35

Gravely 06300104

STAR LOCKWASHER 3/4 EXT. 44612

$

$

Not available
