895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Stabilizer Arms Parts Diagram

Tow-Behind Reel Mower Attachment

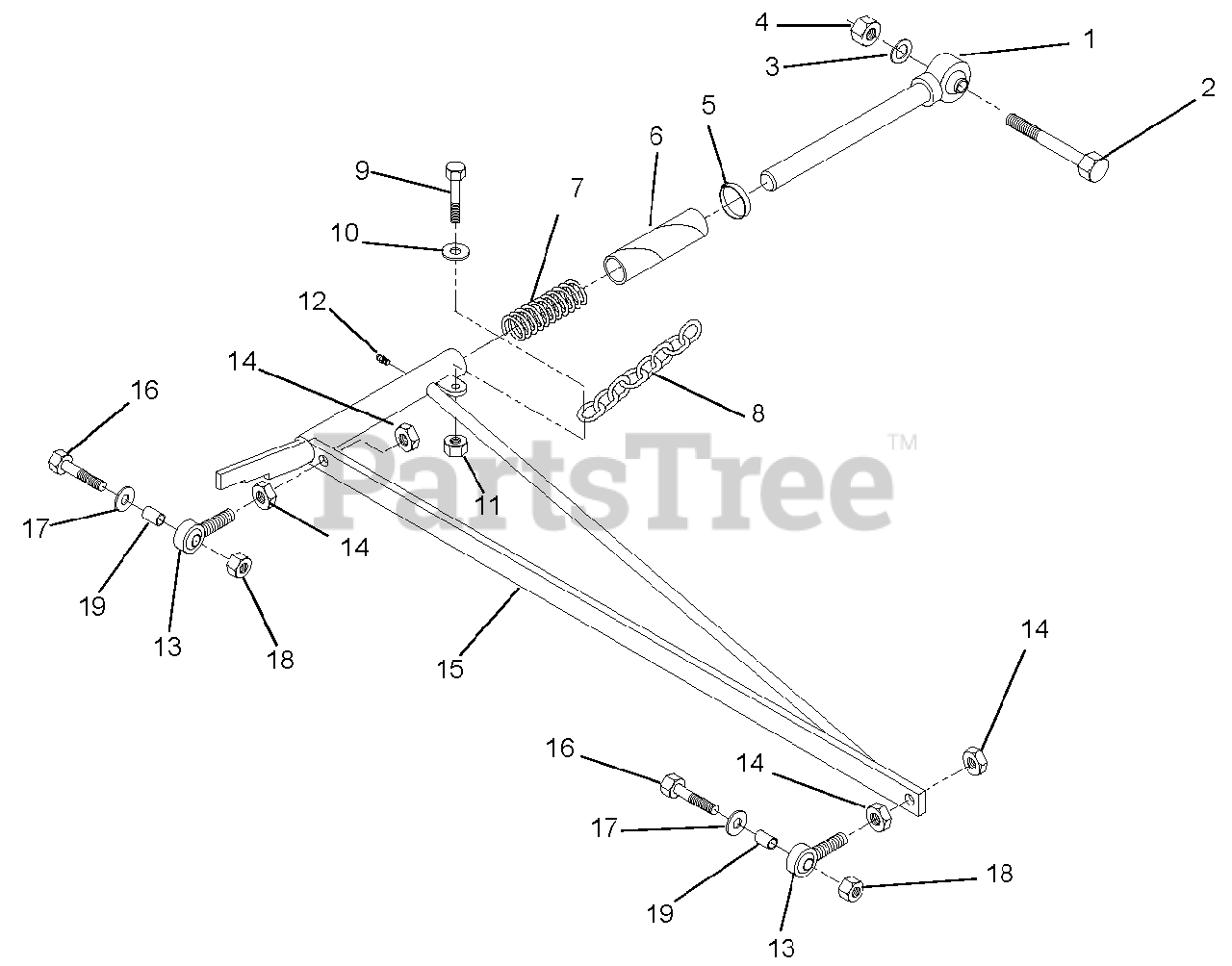

Stabilizer Arms Parts Diagram

  • Title

1

Gravely 02544151

SHAFT WELDMENT: TELESCOPING

$

$

Not available

2

Gravely 05901116

PIVOT BOLT 50022123

$

$

Not available

3

Gravely 06300026

LOCKWASHER 3/4 CP PG 3/4 R 146

$

$

Not available

4

Gravely 06500437

HEX NUT 3/4-10 CP 19517

$

$

Not available

5

Gravely 02395900

CLAMP PINCH (1 23/3 50022068

$

$

Not available

6

Gravely 05500608

SLEEVE TELESCOPING 50019665

$

$

Not available

7

Gravely 08300410

SPRING COMP. 1-1/16 50022069

$

$

Not available

8

Gravely 02545100

CHAIN 8 LINKS 50022140

$

$

Not available

9

Gravely 05900738

HHCS 5/16-18 X 1-1/2 20011

$

$

Not available

10

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500428

HEX NUT 5/16-18 YZ 15528

$

$

Not available

12

Gravely 07000916

GREASE FITTING 1/4-28 UN 449

$

$

Not available

13

Gravely 07000936

ROD END 5/8 BORE 50019870

$

$

Not available

14

Gravely 02118100

JAM NUT 5/8 NF CP 15653
(Superseded to 06539600)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 02154753

STABILIZER ARM WELDMENT LH

$

$

Not available

Gravely 02154853

STABILIZER ARM WELDMENT RH

Note: (Shown)

$

$

Not available

16

Gravely 05900809

HEX HD CPSC 1/2-13 X 2 G 20110

$

$

Not available

17

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

18

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

19

Gravely 05500636

ADAPTER BUSHING 50022484

$

$

Not available
