895405 (TRM-5138) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Equalizer and Lift Arm Assembly Parts Diagram

Tow-Behind Reel Mower Attachment

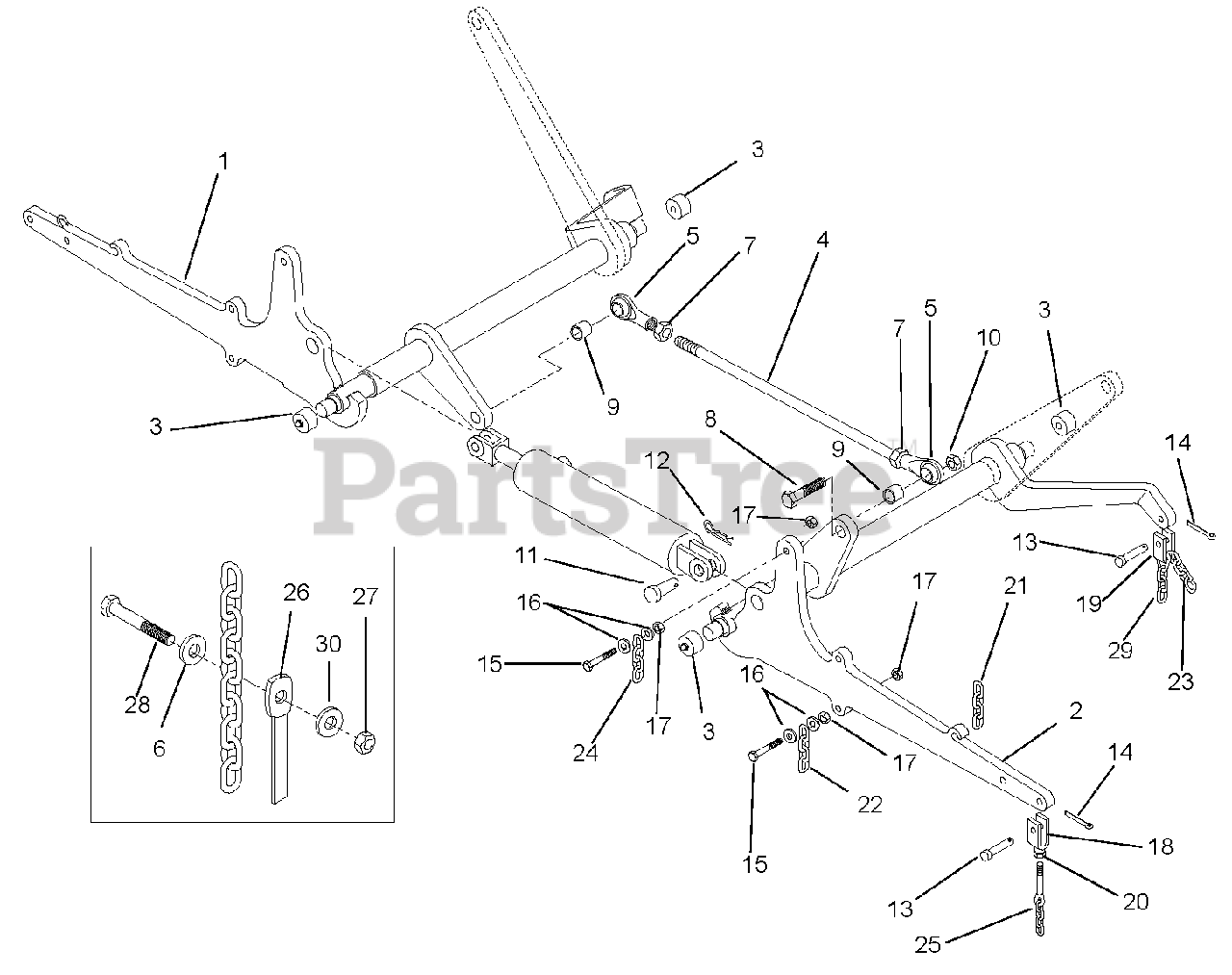

Equalizer and Lift Arm Assembly Parts Diagram

  • Title

1

Gravely 07101053

Weldment, Hydraulic Lift Arm Left Hand (895405, 435)

Note: (895405, 435)

$

$

Not available

Gravely 07094053

Weldment, Hydraulic Lift Arm Left Hand (895406, 436)

Note: (895406, 436)

$

$

Not available

2

Gravely 07109053

Weldment, Hydraulic Lift Arm Right Hand (895405, 435)

Note: (895405, 435)

$

$

Not available

Gravely 07093953

Weldment, Hydraulic LIft Arm Right Side (895406, 436)

Note: (895406, 436)

$

$

Not available

3

Gravely 05400413

Assembly, Bearing Cup

$

$

Not available

4

Gravely 02366400

Rod, Synchronizing

$

$

Not available

5

Gravely 07000937

Rod End .75

$

$

Not available

6

Gravely 02290200

Washer, Fender .25

$

$

Not available

7

Gravely 02223800

Nut, Jam .75

$

$

Not available

8

Gravely 05900724

Cap Screw .75-10 x 3

$

$

Not available

9

Gravely 06400620

Spacer, Equalizer Rod

$

$

Not available

10

Gravely 06500437

Nut, Hex .75-10

$

$

Not available

11

Gravely 02289800

Pin, Clevis 1 x 2.25

$

$

Not available

12

Gravely 06700128

Pin, Cotter Hair .125

$

$

Not available

13

Gravely 06800033

Pin, Clevis .375 x 1

$

$

Not available

14

Gravely 06700119

Cotter Pin 5/32 x 1

$

$

Not available

15

Gravely 05900931

Cap Screw, Hex Head .375-16 x 1.75

$

$

Not available

16

Gravely 06400421

Washer, Flat .375

$

$

Not available

17

Gravely 02091800

Nut, Jam .375-16

$

$

Not available

18

Gravely 02369751

Clevis Yoke, Modified

$

$

Not available

19

Gravely 02369651

Clevis Yoke

$

$

Not available

20

Gravely 06500606

Nut, Hex .375-16

$

$

Not available

21

Gravely 02376000

Chain, Transport

$

$

Not available

22

Gravely 02375200

Lift Chain, #1

$

$

Not available

23

Gravely 02367800

Lift Chain, #2 and #3 Outer

$

$

Not available

24

Gravely 02375600

Lift Chain, #4 and #5 Inner

$

$

Not available

25

Gravely 02368100

Lift Chain Weldment, #4 and #5 Outer

$

$

Not available

26

Gravely 02542100

Strap, Tarp 8.25" No Hook

$

$

Not available

Gravely 02542300

Strap, Tarp 14.25" No Hook

$

$

Not available

27

Gravely 06500513

Nut, Hex .25-20 Nylock

$

$

Not available

28

Gravely 02223000

Hex Head Cap Screw .25-20 x 1-1/2

$

$

Not available

29

Gravely 02374000

Lift Chain, #2 and #3 Inner

$

$

Not available

30

Gravely 06400423

Washer, Flat .25

$2.49

$

Usually ships in 4-12 days
