895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Front Jackshaft Parts Diagram

Tow-Behind Reel Mower Attachment

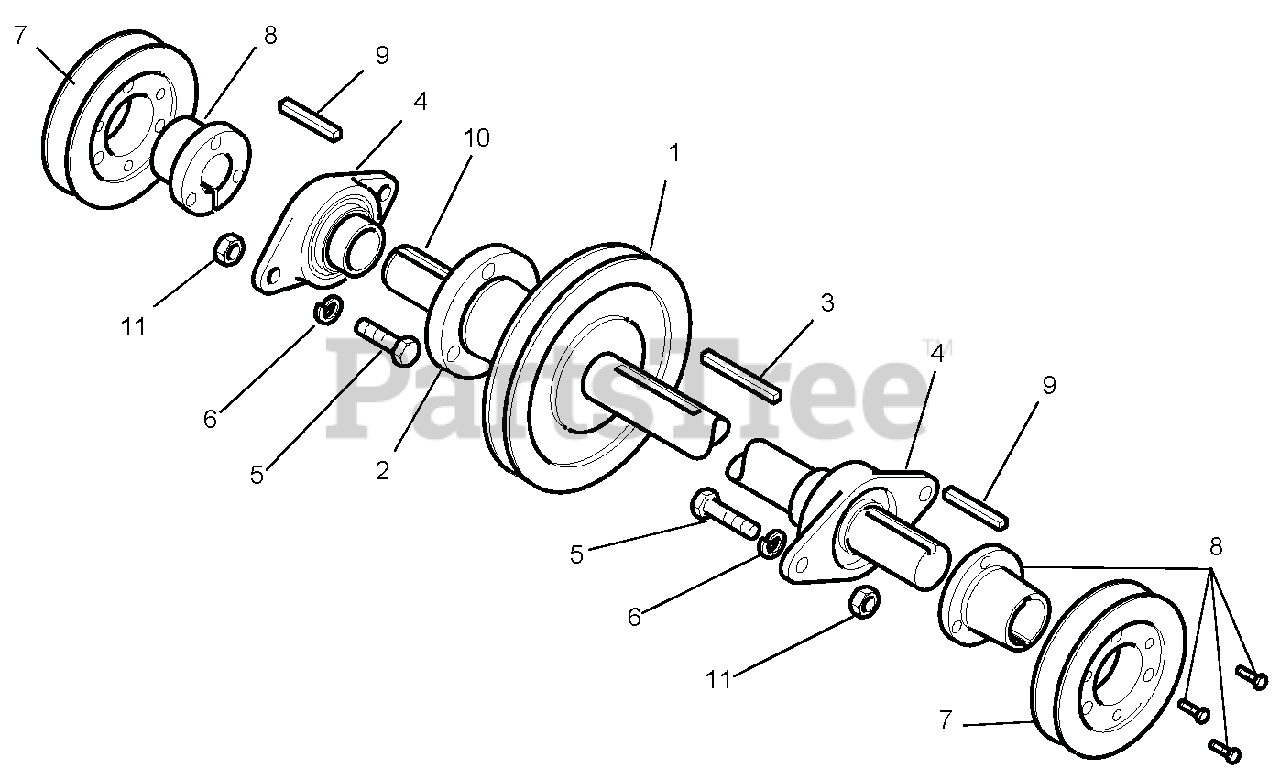

Front Jackshaft Parts Diagram

  • Title

1

Gravely 07333351

PULLEY 1 BELT 6.6 (SDS)

$

$

Not available

2

Gravely 05563051

SPLIT TAPER BUSHING 1" (SDS)

$

$

Not available

3

Gravely 06600138

KEY PULLEY 65484

$

$

Not available

4

Gravely 05400424

BEARING FLANGE 2 BO 50022101

$

$

Not available

5

Gravely 05901022

HHCS 7/16-14 X 1-1/4 G5 44614

$

$

Not available

6

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available

7

Gravely 07332951

PULLEY TAPER LOCK

$

$

Not available

8

Gravely 05562951

SPLIT TAPER BUSHING SH 1"

$

$

Not available

9

Gravely 06600207

KEY SQUARE 1/4X1/4X1 93810

$

$

Not available

10

Gravely 02366700

JACKSHAFT FRONT 50019878

$

$

Not available

11

Gravely 06500611

HEX NUT 7/16 CP 8151400

$

$

Not available
