895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Gearbox & V-Belts_Units 6-7 Parts Diagram

Tow-Behind Reel Mower Attachment

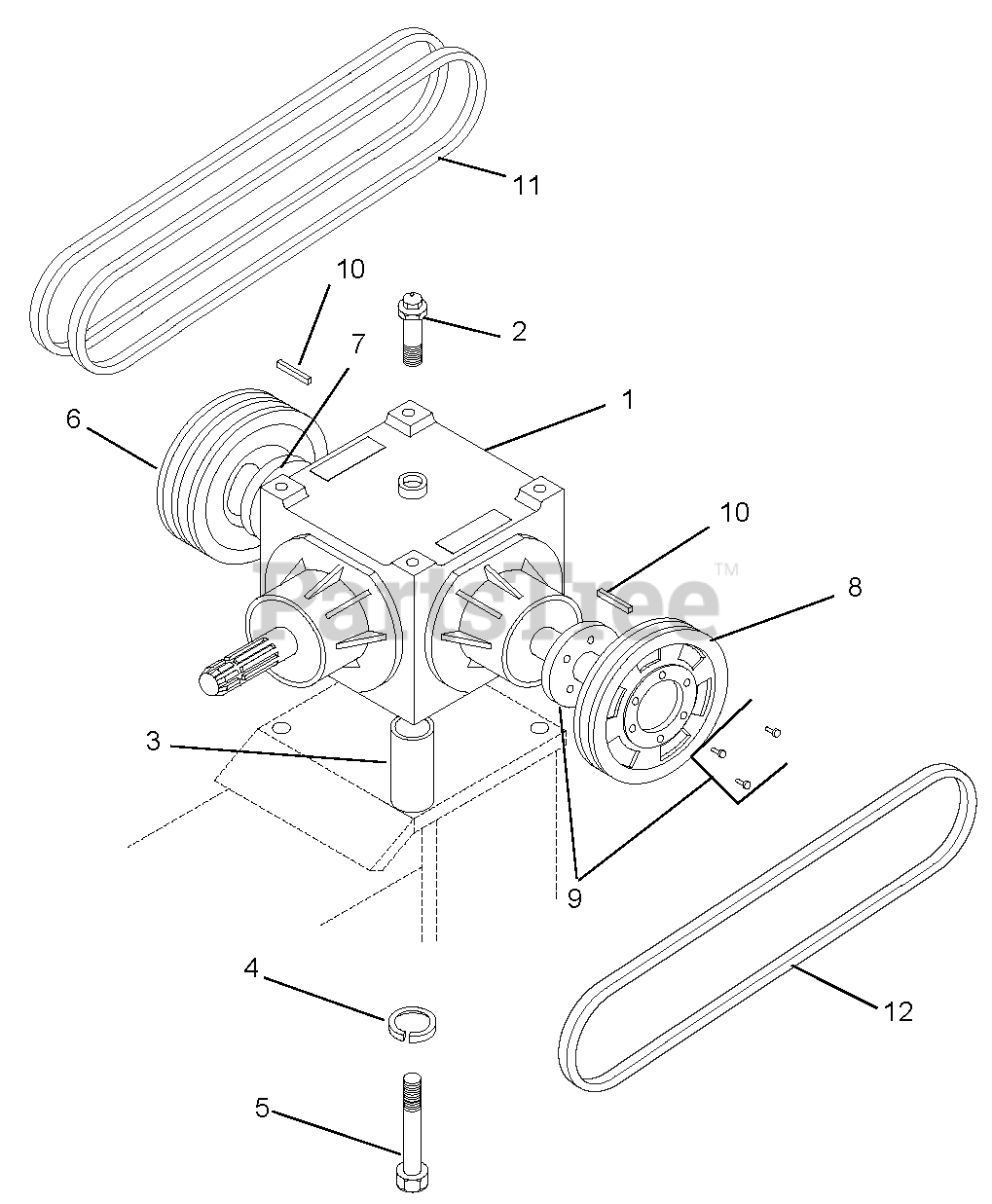

Gearbox & V-Belts_Units 6-7 Parts Diagram

  • Title

1

Gravely 02542451

GEARBOX ASSEMBLY

$

$

Not available

2

Gravely 02559000

OIL LEVEL PLUG TCA 50022324

$

$

Not available

3

Gravely 02374651

MOUNTING SPACER, GEAR BOX

$

$

Not available

4

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05900823

HEX HD CPSC 1/2-13 X 3 G 20864

$

$

Not available

6

Gravely 07333051

PULLEY,2BELT 7.0 (SK) GEARBOX

$

$

Not available

7

Gravely 05563151

BUSHING 1-1/8 (SK)

Note: (SK)

$

$

Not available

8

Gravely 07333151

PULLEY,1BELT 7.0 (SDS) GEARBOX

$

$

Not available

9

Gravely 05563251

BUSHING 1 1/8 (SDS)

Note: (SDS)

$

$

Not available

10

Gravely 06600139

KEY .25 X .25 X 2.00 65485

$

$

Not available

11

Gravely 07200339

V-BELT B78 50022096

$

$

Not available

12

Gravely 07200401

V-BELT BP 70; L.H. G 50022098

$

$

Not available
