895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Main Frame_TRM-7192 Parts Diagram

Tow-Behind Reel Mower Attachment

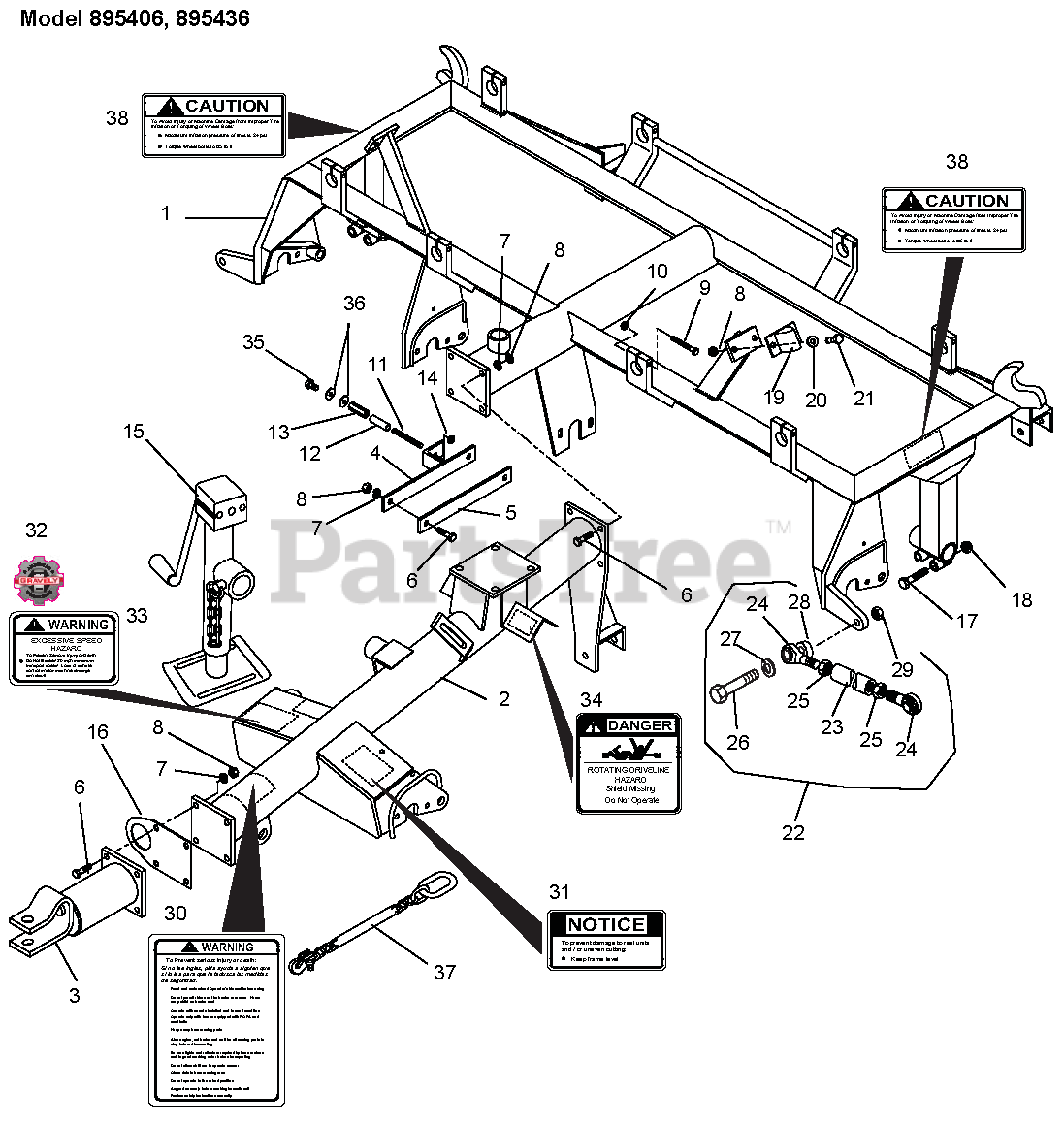

Main Frame_TRM-7192 Parts Diagram

  • Title

1

Gravely 02394553

MAINFRAME WELDMENT 7 GANG

$

$

Not available

2

Gravely 02548300

TONGUE ASSEMBLY 50022176

$

$

Not available

3

Gravely 02284153

CLEVIS HITCH WELDMENT

$

$

Not available

4

Gravely 02367553

TONGUE BRACE WELDMENT

$

$

Not available

5

Gravely 02373953

TONGUE BRACE L.H.

$

$

Not available

6

Gravely 05900703

HHCS 1/2-13 X 1-1/2 G5 15093

$

$

Not available

7

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

9

Gravely 05900727

HHCS 3/8-16 X 3 G5 YZ 19055

$

$

Not available

10

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

11

Gravely 06000136

STUD BELT GUARD 50019944

$

$

Not available

12

Gravely 06400634

SPACER 50022437

$

$

Not available

13

Gravely 06500516

HEX NUT COUPLER 3/8-16 44600

$

$

Not available

14

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

15

Gravely 05901115

SCREW JACK 5000 LBS 50022109

$

$

Not available

16

Gravely 07093853

HYDRAULIC HOSE HOLDER

$

$

Not available

17

Gravely 05900728

HHCS 1/2-13 X 2-1/2 G5 19065

$

$

Not available

18

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

19

Gravely 02389600

RUBBER BUMPER 50022005

$

$

Not available

20

Gravely 06400422

FLATWASHER 1/2 USS ZP 15916

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 05900805

HHCS 1/2-13 X 1 G5 20054

$

$

Not available

22

Gravely 02366300

TIE ROD ASSEMBLY OUT 50019871

$

$

Not available

23

Gravely 02366200

TIE ROD OUTER 50019869

$

$

Not available

24

Gravely 07000936

ROD END 5/8 BORE 50019870

$

$

Not available

Gravely 07000935

ROD END 5/8 BORE 50019868

$

$

Not available

25

Gravely 06500532

HEX NUT 5/8-18 CP 44743

$

$

Not available

Gravely 06500531

HEX NUT 5/8-18 LH CP 44710

$

$

Not available

26

Gravely 05900919

HEX HD CPSC 5/8-11 X 2-1/2

$

$

Not available

27

Gravely 06300038

LOCKWASHER 5/8 CP 19486

$

$

Not available

28

Gravely 06400618

SPACER 50019875

$

$

Not available

29

Gravely 06500431

HEX NUT 5/8-11 CP 15563

$

$

Not available

30

Gravely 02499800

WARNING DECAL 50022073

$

$

Not available

31

Gravely 02541600

NOTICE DECAL 50022081

$

$

Not available

32

Gravely 08000507

DECAL, GRAVELY HERITAGE-SMALL

$25.99

$

Usually ships in 4-12 days

0

33

Gravely 02400000

WARNING DECAL 50022070

$

$

Not available

34

Gravely 02394800

DANGER DECAL 50022066

$

$

Not available

35

Gravely 05900731

HEX HD CPSC 3/8-16 X 3/4 19100

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

37

Gravely 02892100

SAFETY TOW CHAIN 91091

$

$

Not available

38

Gravely 02541100

CAUTION DECAL 24LB TIRE PRESS

$

$

Not available
