895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above)

Tow-Behind Vertical Mower Attachment

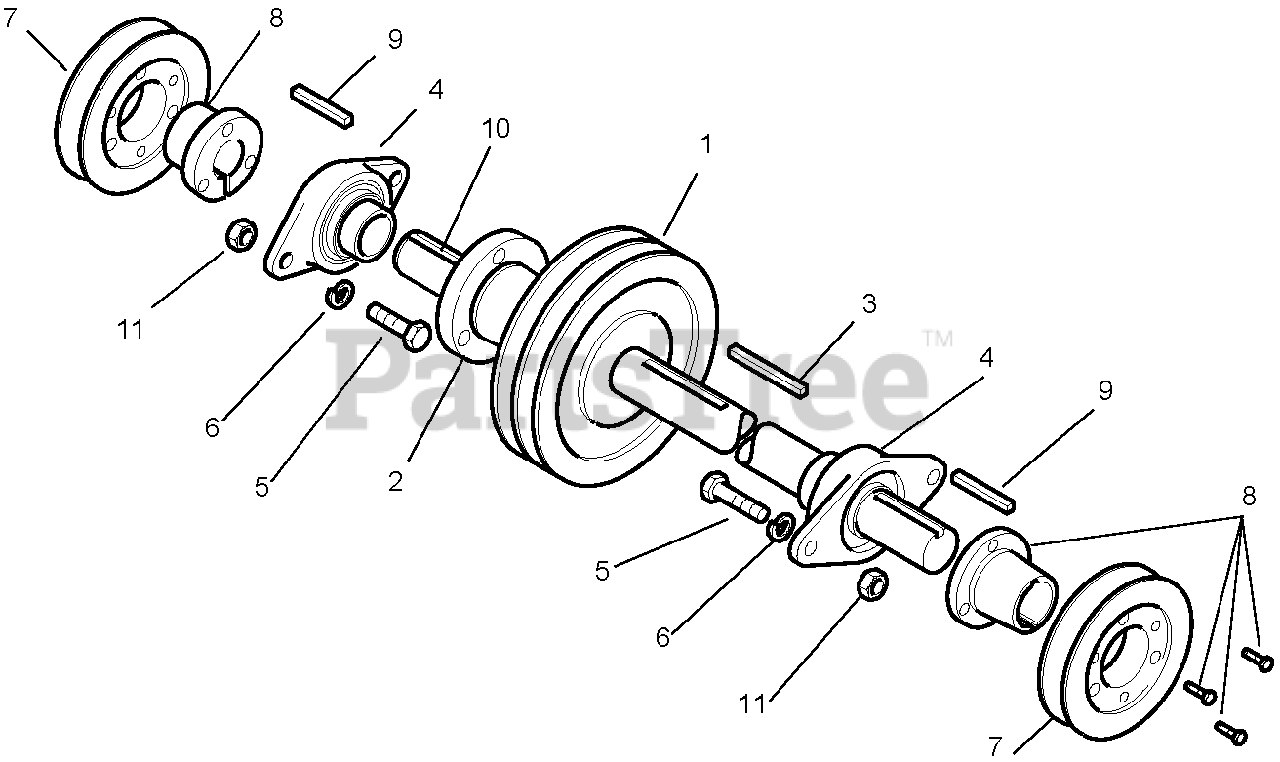

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) > Parts Diagrams (17) > Front Jackshaft Assembly

  • Title
07300332

1

Pulley, 2-Belt 6.6 PD

Part# 07300332

OEM Warranty Repair Part for Gravely

Not available

05500630

2

Bushing, Split Tapered

Part# 05500630

OEM Warranty Repair Part for Gravely

Not available

06600138

3

Key, Pulley

Part# 06600138

OEM Warranty Repair Part for Gravely

Not available

05400424

4

Bearing Flange, 2-Bolt

Part# 05400424

OEM Warranty Repair Part for Gravely

Not available

05901022

5

Cap Screw, Hex Head .437-14 x 1.25

Part# 05901022

OEM Warranty Repair Part for Gravely

Not available

06300031

6

Washer, Lock .437

Part# 06300031

OEM Warranty Repair Part for Gravely

Not available

07300329

7

Pulley, 1-Belt 4.4 PD

Part# 07300329

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $87.03

05500629

8

Bushing, Split Tapered

Part# 05500629

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.37

06600207

9

Key, Square .25 x .25 x 1

Part# 06600207

OEM Warranty Repair Part for Gravely

Not available

02366700

10

Jackshaft, Front

Part# 02366700

OEM Warranty Repair Part for Gravely

Not available

06500611

11

Nut, Hex .437

Part# 06500611

OEM Warranty Repair Part for Gravely

Not available
