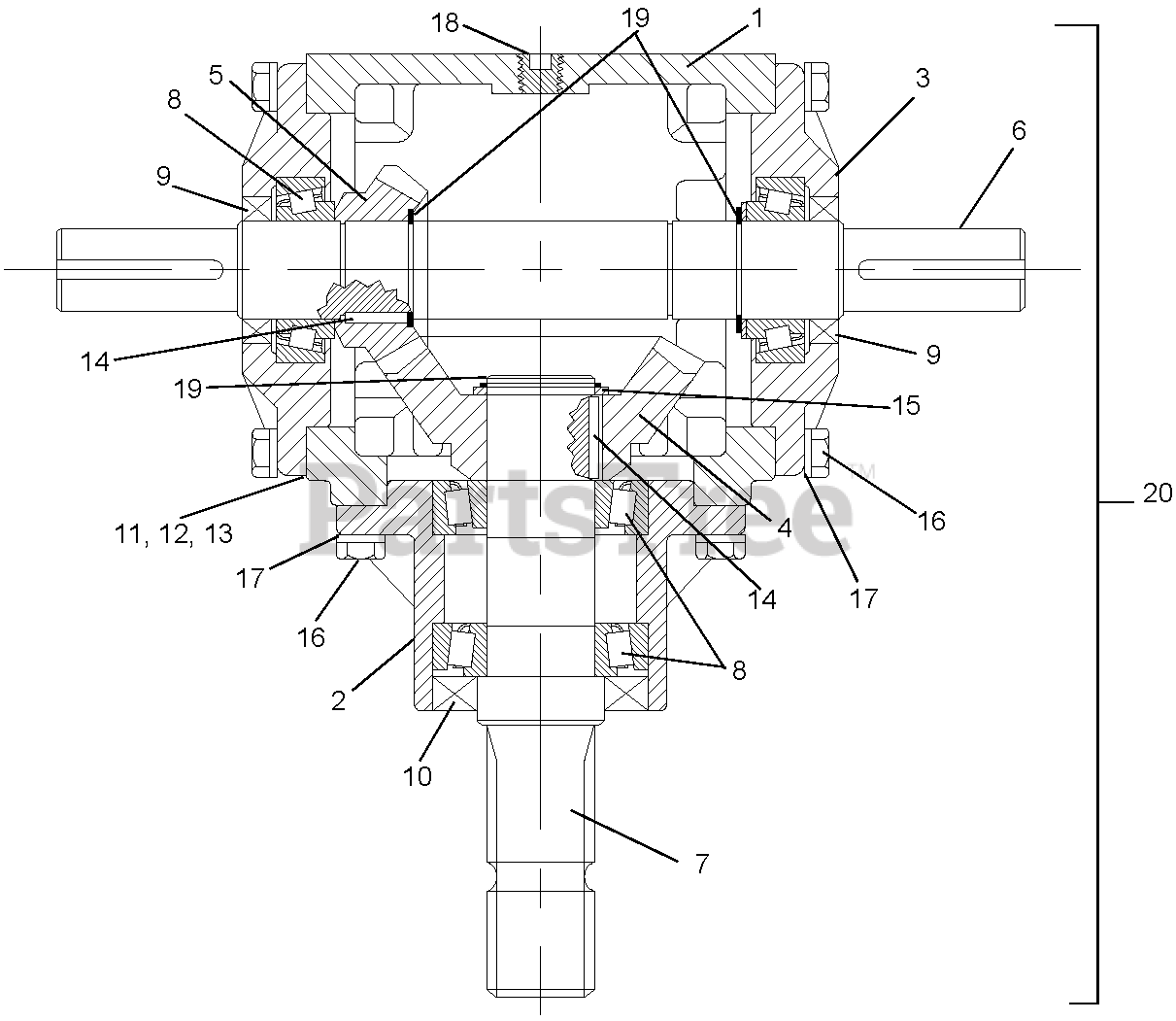

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Gearbox Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

Gearbox Assembly Parts Diagram

  • Title

1

Gravely 02568800

Housing, 400 Series

$

$

Not available

2

Gravely 02568900

Cap, Cantilevered

$

$

Not available

3

Gravely 02569000

Cap, Through

$

$

Not available

4

Gravely 02569100

Gear, 24-Tooth

$

$

Not available

5

Gravely 02569200

Pinion, 16-Tooth

$

$

Not available

6

Gravely 02569300

Shaft, Output 1.125W, .25

$

$

Not available

7

Gravely 02569400

Shaft, Input 1.375-Inch, 6 Spline

$

$

Not available

8

Gravely 05400630

Bearing

$

$

Not available

9

Gravely 05600305

Seal, Through-Cap Triple Lip

$

$

Not available

10

Gravely 05600306

Seal, Cantilevered Cap, Triple Lip

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 05600307

Gasket, Cap 0.1

$

$

Not available

12

Gravely 05600308

Gasket, Cap 0.2

$

$

Not available

13

Gravely 05600309

Gasket, Cap 0.3

$

$

Not available

14

Gravely 06600125

Key, Square 10mm x 5mm x 25mm

$

$

Not available

15

Gravely 06400638

Spacer

$

$

Not available

16

Gravely 05900621

Cap Screw, Hex Head .312-18 x 1

$

$

Not available

17

Gravely 06300029

Washer, Lock .312

$

$

Not available

18

Gravely 02868700

Plug, Socket Head Pipe .50

$

$

Not available

19

Gravely 05700102

Ring, Retaining

$

$

Not available

20

Gravely 02295000

Gearbox Assembly 1:1.5

$

$

Not available
