895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Gearbox & V-Belts Parts Diagram

Tow-Behind Vertical Mower Attachment

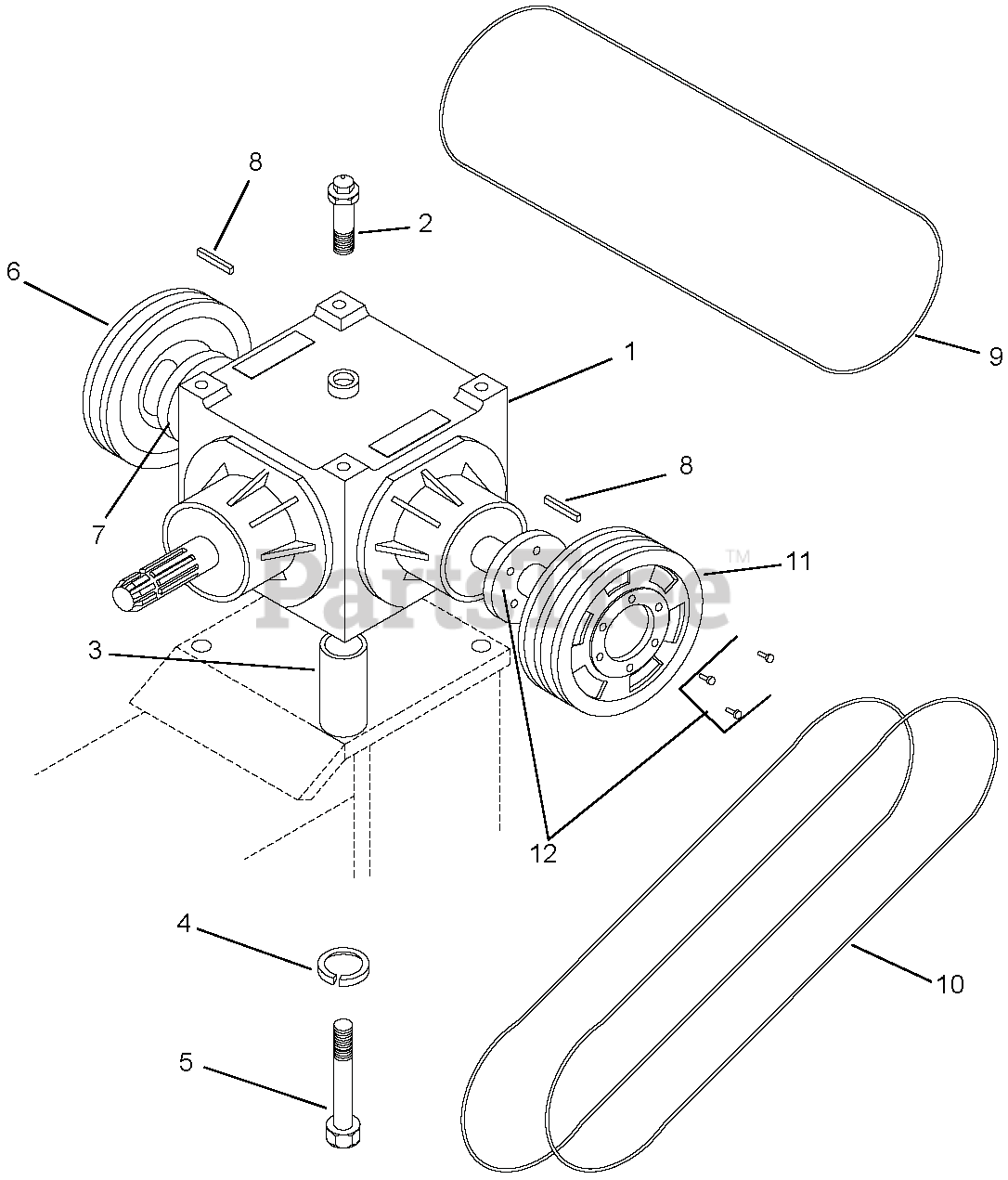

Gearbox & V-Belts Parts Diagram

  • Title

1

Gravely 02295000

GEARBOX ASSEMBLY 1 50019729

$

$

Not available

2

Gravely 02875000

VALVE VENT PLUG 80538

$

$

Not available

3

Gravely 02374600

MOUNTING SPACER GEAR 50019943

$

$

Not available

4

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05900823

HEX HD CPSC 1/2-13 X 3 G 20864

$

$

Not available

6

Gravely 07300331

PULLEY 1 BELT 7.0 50022086

$

$

Not available

7

Gravely 05500632

BUSHING 1 1/8 (SDS) 50022108

$

$

Not available

8

Gravely 06600139

KEY .25 X .25 X 2.00 65485

$

$

Not available

9

Gravely 07200403

BELT-V BX78 (ALSO 5 50022450

$

$

Not available

10

Gravely 07200404

BELT-V BX70 (ALSO 5 50022451

$

$

Not available

11

Gravely 07300330

PULLEY 2 BELT 7.0 50022085

$

$

Not available

12

Gravely 0550631

Bushing, 1-1/8 SK

$

$

Not available
