895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Lift Parts Diagram

Tow-Behind Vertical Mower Attachment

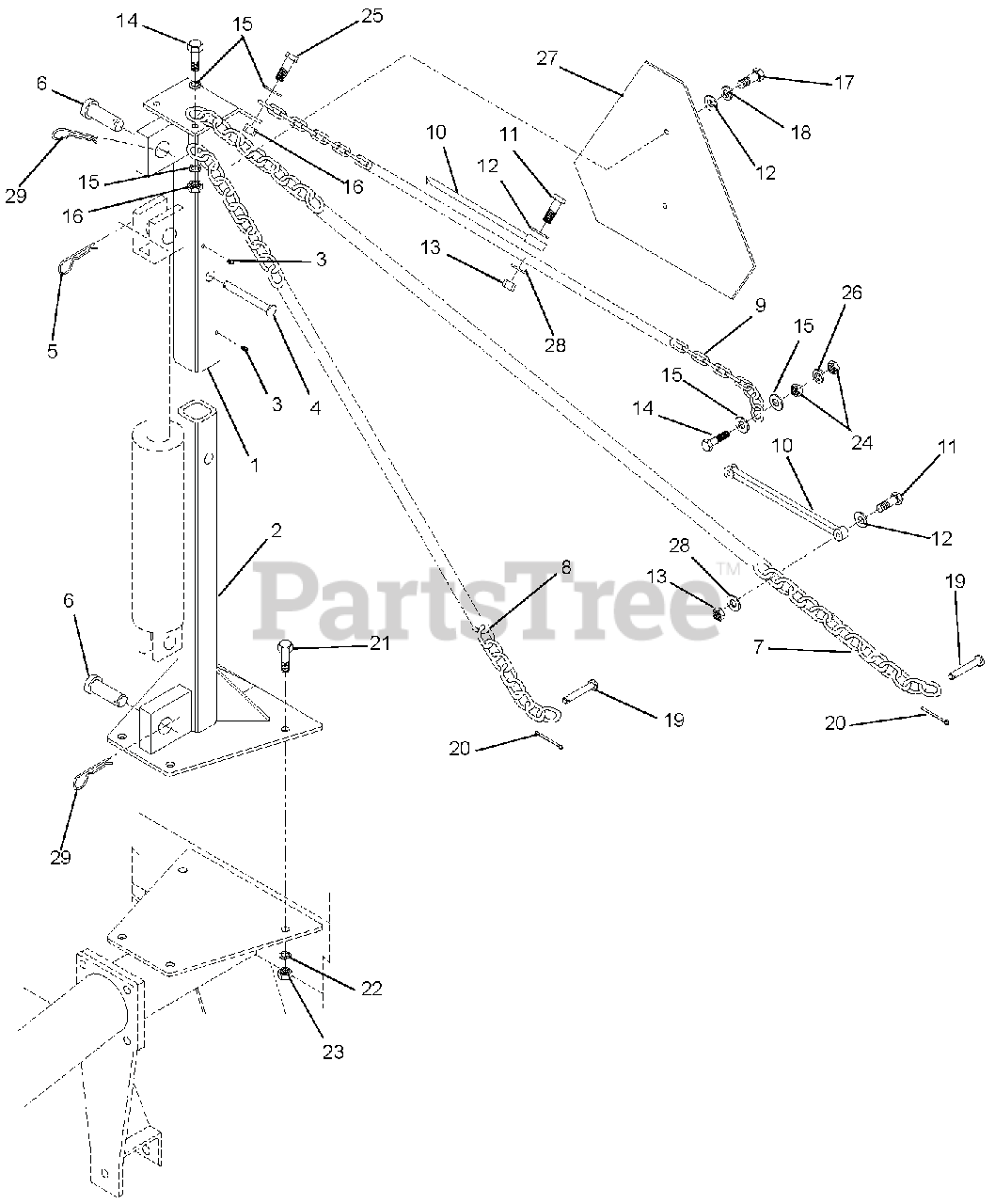

Lift Parts Diagram

  • Title

1

Gravely 02569900

OUTER LIFT TUBE WELDM 50022497

$

$

Not available

2

Gravely 02570100

INNER LIFT POST WELDM 50022500

$

$

Not available

3

Gravely 07000934

GREASE FITTING 3/16 50019776

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 02570300

CLEVIS PIN 5/8 X 4 50022503

$

$

Not available

5

Gravely 02106400

PIN PRESTO SPRING CLIP 1273

$

$

Not available

6

Gravely 02289800

CLEVIS PIN 1 X 2 1/ 50019659

$

$

Not available

7

Gravely 02559600

LIFT CHAIN OUTER-FR 50022337

$

$

Not available

8

Gravely 02559500

LIFT CHAIN INNER-FR 50022336

$

$

Not available

9

Gravely 02559400

LIFT CHAIN REAR (SU 50022335

$

$

Not available

10

Gravely 02542100

TARP STRAP 8 1/4 N 50022099

$

$

Not available

11

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

12

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available

13

Gravely 06500513

HEX NUT 1/4-20 CP NYLOCK 44566

$

$

Not available

14

Gravely 05900824

HEX HD CPSC 3/8-16 X 1-1/2

$

$

Not available

15

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

16

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

17

Gravely 05900618

HEX HD CPSC 1/4-20 X 3/4

$

$

Not available

18

Gravely 06300034

LOCKWASHER 1/4 CP PG 1/4 15905

$

$

Not available

19

Gravely 02157600

CLEVISPIN 3/8 1-1/2 25H49039

$

$

Not available

20

Gravely 06700119

COTTER PIN 5/32 X 1 Z 21020510

$

$

Not available

21

Gravely 05900703

HHCS 1/2-13 X 1-1/2 G5 15093

$

$

Not available

22

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

24

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

25

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

27

Gravely 02897200

SMV SIGN 94359

$

$

Not available

28

Gravely 02290200

FENDER WASHER 1/4 X 1-1/4```

$

$

Not available

29

Gravely 06700128

HAIR PIN COTTER .125 44718

$

$

Not available
