895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Main Frame_TVM-3077 Parts Diagram

Tow-Behind Vertical Mower Attachment

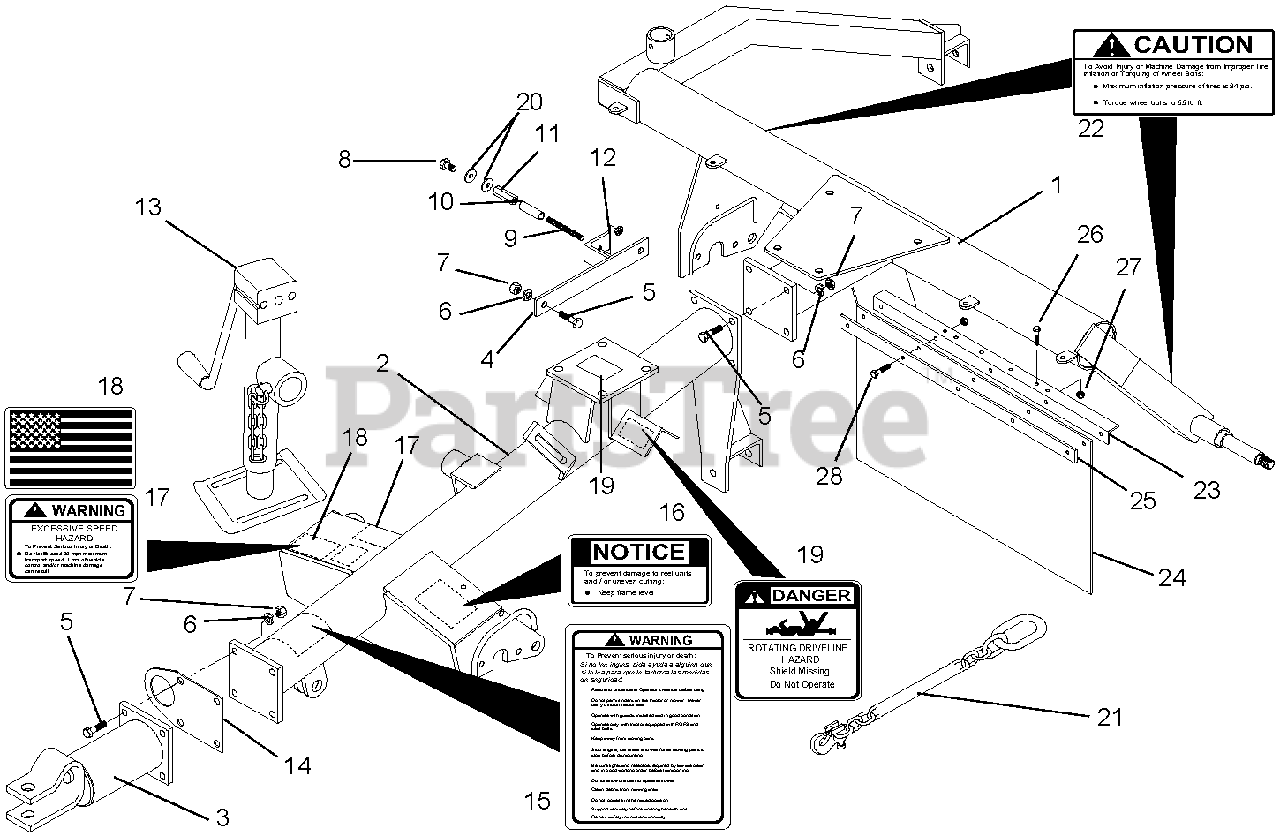

Main Frame_TVM-3077 Parts Diagram

  • Title

1

Gravely 02092800

Weldment, Mainframe

$

$

Not available

2

Gravely 02548300

Tongue Assembly

$

$

Not available

3

Gravely 02284100

Weldment, Clevis HItch

$

$

Not available

4

Gravely 02367500

Weldment, Tongue Brace

$

$

Not available

5

Gravely 05900703

Cap Screw, Hex Head .50-13 x 1.5

$

$

Not available

6

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06500612

Nut, Hex .50 CP

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 05900731

Cap Screw, Hex Head .375 x .75

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06000136

Stud, Belt Guard

$

$

Not available

10

Gravely 06400634

Spacer

$

$

Not available

11

Gravely 06500516

Nut, Hex Coupler .375-16

$

$

Not available

12

Gravely 02091800

Nut, Jam .375-16

$

$

Not available

13

Gravely 05901115

Jack, Screw 5000-lb.

$

$

Not available

14

Gravely 07000938

Holder, Hydraulic Hose

$

$

Not available

15

Gravely 02499800

Decal, Warning

$

$

Not available

16

Gravely 02541600

Decal, Notice

$

$

Not available

17

Gravely 02395300

Decal, USA Flag

$

$

Not available

18

Gravely 02400000

Decal, Warning

$

$

Not available

19

Gravely 02394800

Decal, Danger

$

$

Not available

20

Gravely 06400417

Washer, Flat .375 SAE

$

$

Not available

21

Gravely 02892100

Chain, Safety Tow

$

$

Not available

22

Gravely 02541100

Decal, Caution, 24 lb. Tire Pressure

$

$

Not available

23

Gravely 02561900

Mounting Angle

$

$

Not available

24

Gravely 02561800

Defector

$

$

Not available

25

Gravely 02561700

Clamp Bar

$

$

Not available

26

Gravely 05900620

Cap Screw, Hex Head, 5/16-18 x 1.0

$

$

Not available

27

Gravely 06500512

Nut, Hex, Nyloc 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 05900621

Cap Screw, Hex Head 5/16-18 x 1.0

$

$

Not available
