895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above)

Tow-Behind Vertical Mower Attachment

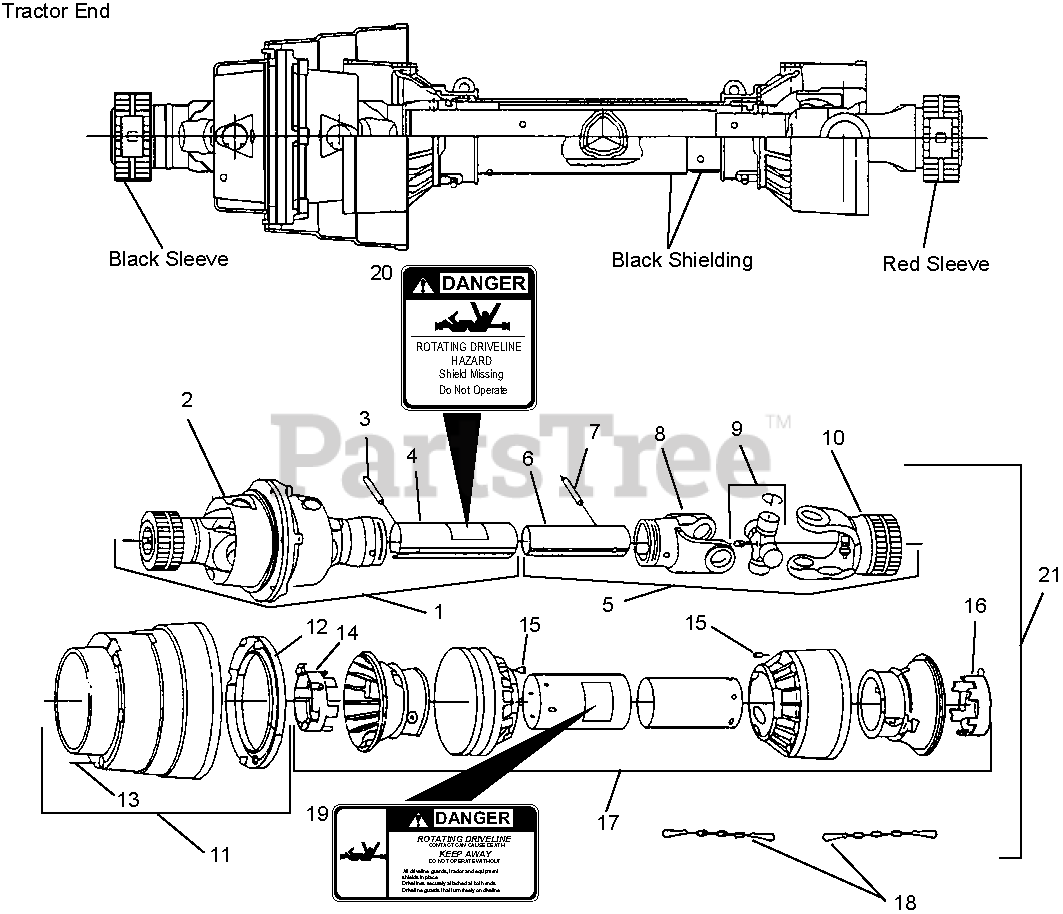

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) > Parts Diagrams (17) > PTO Driveline Assembly

  • Title
Half Shaft, Outer (Not Serviced Separately. Order item 21, P/N 02542600)

1

Half Shaft, Outer (Not Serviced Separately. Order item 21, P/N 02542600)

Part# Half Shaft, Outer (Not Serviced Separately. Order item 21, P/N 02542600)

Note: (Not Serviced Separately. Order item 21, P/N 02542600)

Not available

02579900

2

Assembly, Constant Velocity Joint (Tractor End)

Part# 02579900

Note: (Tractor End)

OEM Warranty Repair Part for Gravely

Not available

05800115

3

Pin, Roll 8 mm x 60 mm

Part# 05800115

OEM Warranty Repair Part for Gravely

Not available

02580000

4

Tube, Outer

Part# 02580000

OEM Warranty Repair Part for Gravely

Not available

Half Shaft, Inner (Not Serviced Separately. Order item 21, P/N 02542600)

5

Half Shaft, Inner (Not Serviced Separately. Order item 21, P/N 02542600)

Part# Half Shaft, Inner (Not Serviced Separately. Order item 21, P/N 02542600)

Note: (Not Serviced Separately. Order item 21, P/N 02542600)

Not available

07100606

6

Tube, Inner

Part# 07100606

OEM Warranty Repair Part for Gravely

Not available

05800116

7

Roll Pin 8 mm x 55 mm

Part# 05800116

OEM Warranty Repair Part for Gravely

Not available

07100607

8

Yoke, Inner Tube

Part# 07100607

OEM Warranty Repair Part for Gravely

Not available

02838800

9

Kit, Cross and Bearing

Part# 02838800

OEM Warranty Repair Part for Gravely

Not available

02580300

10

Assembly, Yoke (Implement End)

Part# 02580300

Note: (Implement End)

OEM Warranty Repair Part for Gravely

Not available

02580400

11

Shield, Wide Angle

Part# 02580400

OEM Warranty Repair Part for Gravely

Not available

05400440

12

Bearing, Soft Cone

Part# 05400440

OEM Warranty Repair Part for Gravely

Not available

05901119

13

Screw, Self-Tapping #6

Part# 05901119

OEM Warranty Repair Part for Gravely

Not available

02580500

14

Tube, Bearing Outer

Part# 02580500

OEM Warranty Repair Part for Gravely

Not available

02579600

15

Pin, Lock

Part# 02579600

OEM Warranty Repair Part for Gravely

Not available

02580600

16

Tube, Bearing Inner

Part# 02580600

OEM Warranty Repair Part for Gravely

Not available

02580700

17

Shield, Safety

Part# 02580700

OEM Warranty Repair Part for Gravely

Not available

N/A

18

Chain, Safety

Part# N/A

OEM Warranty Repair Part for Gravely

Currently unavailable

02868600

19

Decal, Danger

Part# 02868600

OEM Warranty Repair Part for Gravely

Not available

02868800

20

Decal, Danger

Part# 02868800

OEM Warranty Repair Part for Gravely

Not available

02542600

21

Assembly, Driveline

Part# 02542600

OEM Warranty Repair Part for Gravely

Not available
