895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Rear Jackshaft Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

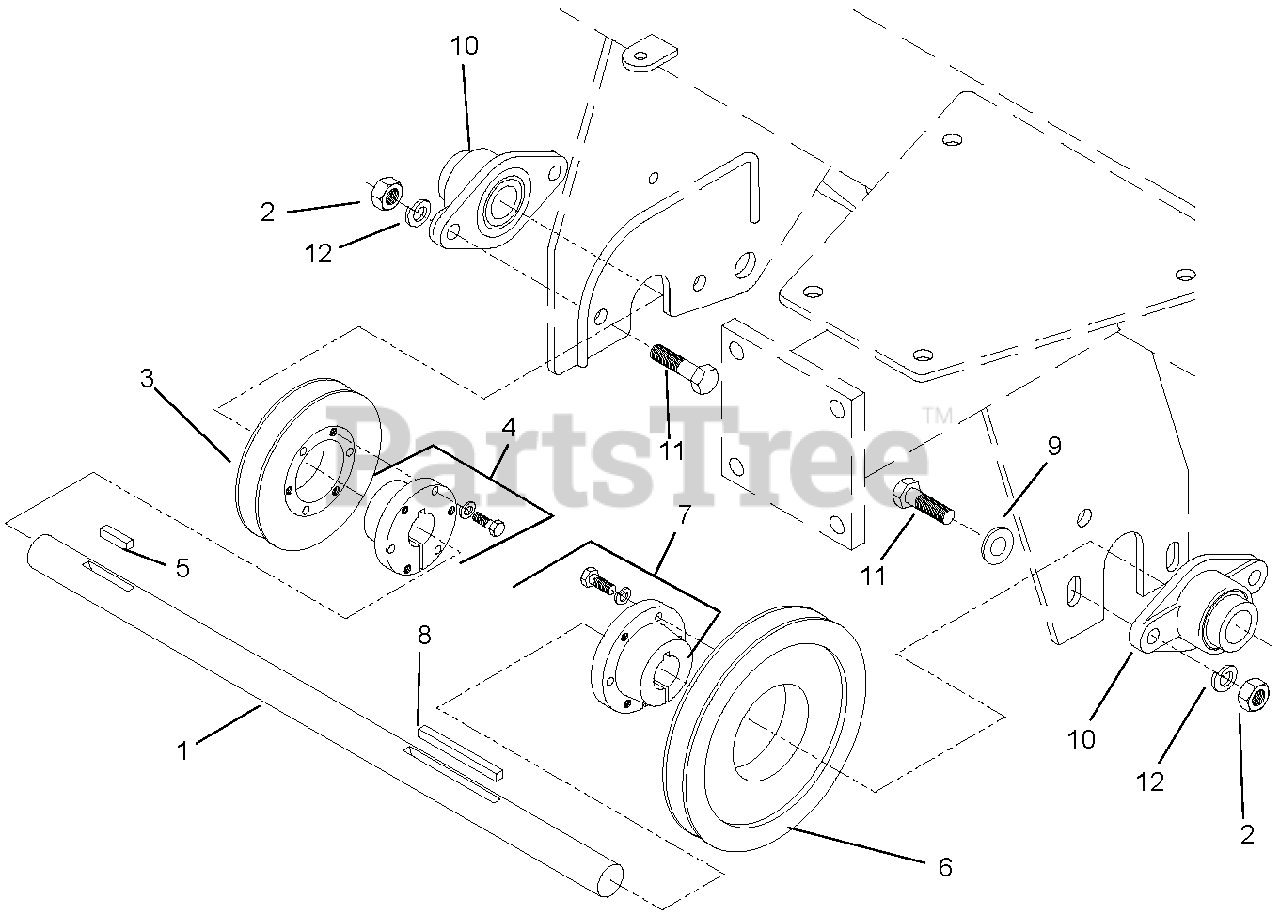

Rear Jackshaft Assembly Parts Diagram

  • Title

1

Gravely 02559300

JACKSHAFT REAR-3 GAN 50022334

$

$

Not available

2

Gravely 06500611

HEX NUT 7/16 CP 8151400

$

$

Not available

3

Gravely 07300329

PULLEY TAPER LOCK 50022084

$

$

Not available

4

Gravely 05500629

SPLIT BUSHING TAPER 50022105

$

$

Not available

5

Gravely 06600207

KEY SQUARE 1/4X1/4X1 93810

$

$

Not available

6

Gravely 07300333

PULLEY 1 BELT 6.6 50022088

$

$

Not available

7

Gravely 05500630

SPLIT BUSHING TAPER 50022106

$

$

Not available

8

Gravely 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06400533

FLATWASHER 7/16 ZP SAE 44618

$

$

Not available

10

Gravely 05400424

BEARING FLANGE 2 BO 50022101

$

$

Not available

11

Gravely 05900638

HEX HD CPSC 7/16-14 X 1- 15012

$

$

Not available

12

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available
