895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Rear Jackshaft Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

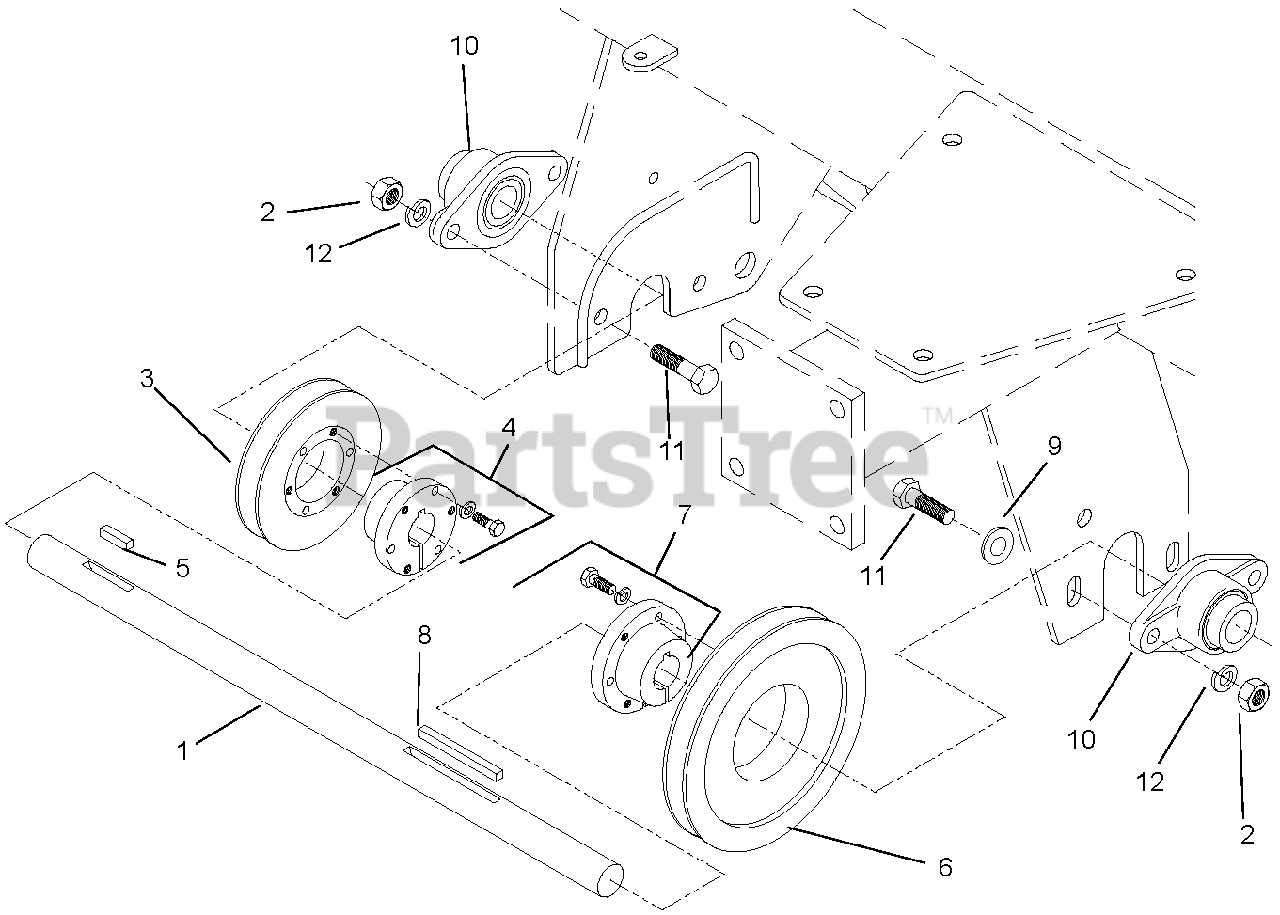

Rear Jackshaft Assembly Parts Diagram

  • Title

1

Gravely 02559300

Jackshaft, Rear 3-Gang

$

$

Not available

2

Gravely 06500611

Nut, Hex .437

$

$

Not available

3

Gravely 07300329

Pulley, Taper Lock 1B

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 05500629

Bushing, Split Tapered

$62.99

$

Usually ships in 4-12 days

0

5

Gravely 06600207

Key, Square .25 x .25 x 1-Inch

$

$

Not available

6

Gravely 07300333

Pulley, 1-Belt 6.6 PD

$

$

Not available

7

Gravely 05500630

Bushing, Split Tapered

$

$

Not available

8

Gravely 06600121

Key, .25 x .25 x 3-Inch

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06400533

Washer, Flat .437

$

$

Not available

10

Gravely 05400424

Lift, Sheave Bearing

$

$

Not available

11

Gravely 05900638

Cap Screw, Hex Head .437-14 x 1.5

$

$

Not available

12

Gravely 06300031

Washer, Lock .437

$

$

Not available
