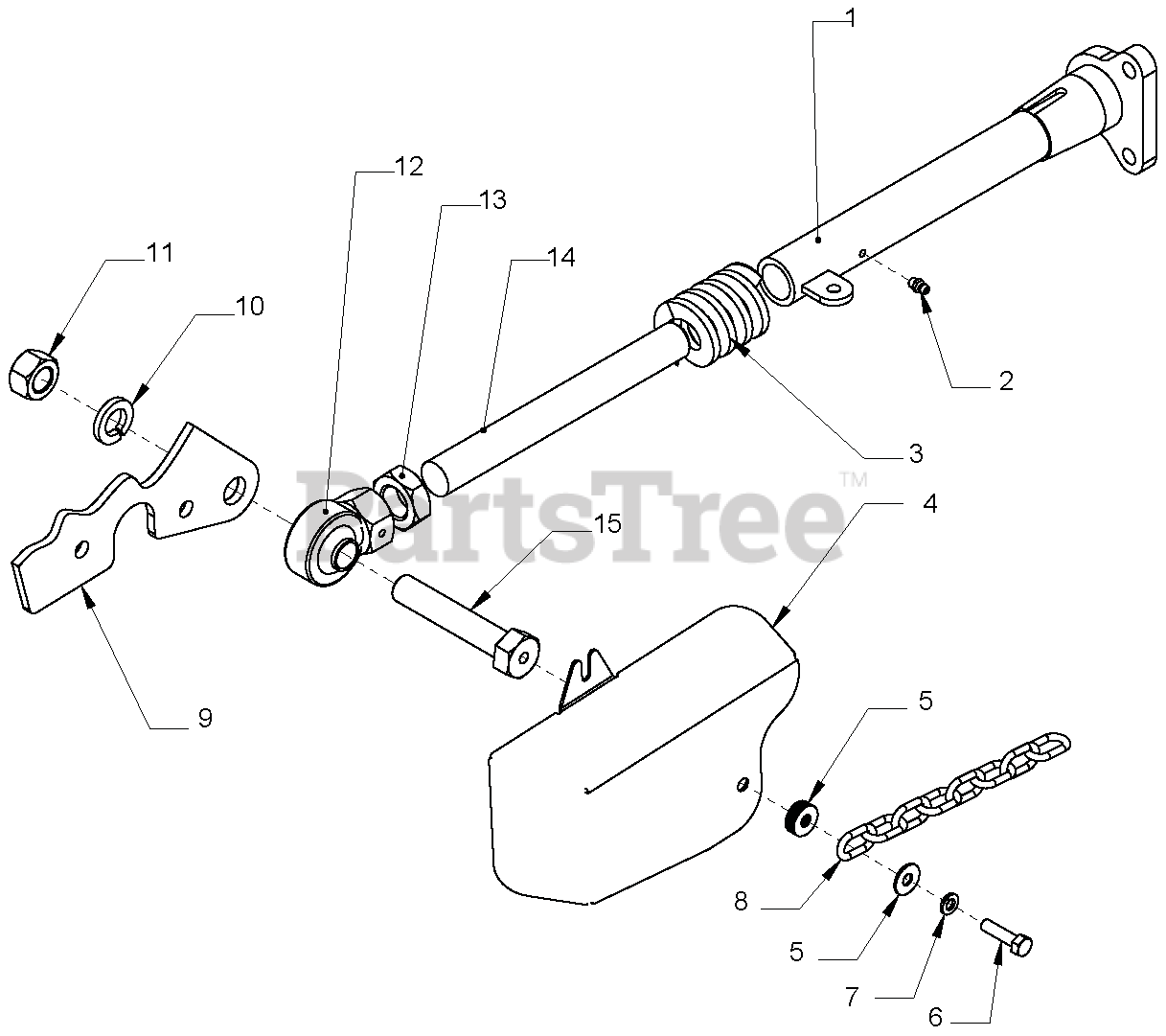

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Telescoping Arm And Parts Parts Diagram

Tow-Behind Vertical Mower Attachment

Telescoping Arm And Parts Parts Diagram

  • Title

1

Gravely 02690000

V-CUT TELESCOPING ARM 50037653

$

$

Not available

2

Gravely 07000916

GREASE FITTING 1/4-28 UN 449

$

$

Not available

3

Gravely 02686100

DIE SPRING COMP.MP85 50035243

$

$

Not available

4

V-Belt Guard (see page 24)

Note: (see page 24)

$

$

Not available

5

Gravely 06400419

FLATWASHER 5/16 ZP 15907

$

$

Not available

6

Gravely 05900702

HHCS 5/16-18 X 1-1/4 15086

$

$

Not available

7

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

8

Gravely 02545100

CHAIN 8 LINKS 50022140

$

$

Not available

9

Main Frame (see page 18)

Note: (see page 18)

$

$

Not available

10

Gravely 06300026

LOCKWASHER 3/4 CP PG 3/4 R 146

$

$

Not available

11

Gravely 06500437

HEX NUT 3/4-10 CP 19517

$

$

Not available

12

Gravely 02564000

BALL SOCKET WELDMENT 50022397

$

$

Not available

13

Gravely 02686000

NUT NYLON INSERT JA 50035242

$

$

Not available

14

Gravely 02561600

SHAFT TELESCOPING AR 50022363

$

$

Not available

15

Gravely 05901116

PIVOT BOLT 50022123

$

$

Not available
