895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above)

Tow-Behind Vertical Mower Attachment

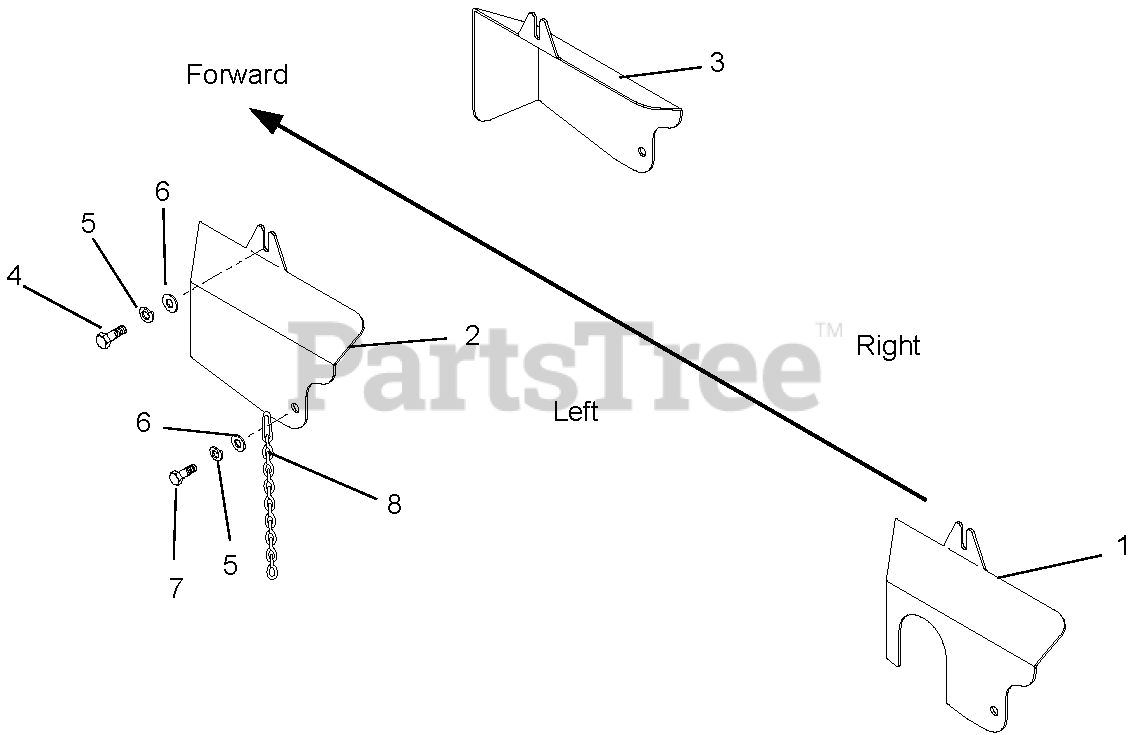

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) > Parts Diagrams (17) > V-Belt Guards

  • Title
02371600

1

Weldment, Belt Guard Center Rear (Unit #1)

Part# 02371600

Note: (Unit #1)

OEM Warranty Repair Part for Gravely

Not available

02371800

2

Weldment, Belt Guard Outside Left (Unit #2 TVM)

Part# 02371800

Note: (Unit #2 TVM)

OEM Warranty Repair Part for Gravely

Not available

02371900

3

Weldment, Belt Guard Outside Right (Unit #3 TVM)

Part# 02371900

Note: (Unit #3 TVM)

OEM Warranty Repair Part for Gravely

Not available

05900620

4

Cap Screw, Hex Head .312 x .75

Part# 05900620

OEM Warranty Repair Part for Gravely

Not available

06300029

5

Washer, Lock .312

Part# 06300029

OEM Warranty Repair Part for Gravely

Not available

06400419

6

Washer, Flat .312

Part# 06400419

OEM Warranty Repair Part for Gravely

Not available

05900702

7

Cap Screw .312-18 x 1.25

Part# 05900702

OEM Warranty Repair Part for Gravely

Not available

02545100

8

Chain, Safety

Part# 02545100

OEM Warranty Repair Part for Gravely

Not available
