895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) V-Cut Head Parts Diagram

Tow-Behind Vertical Mower Attachment

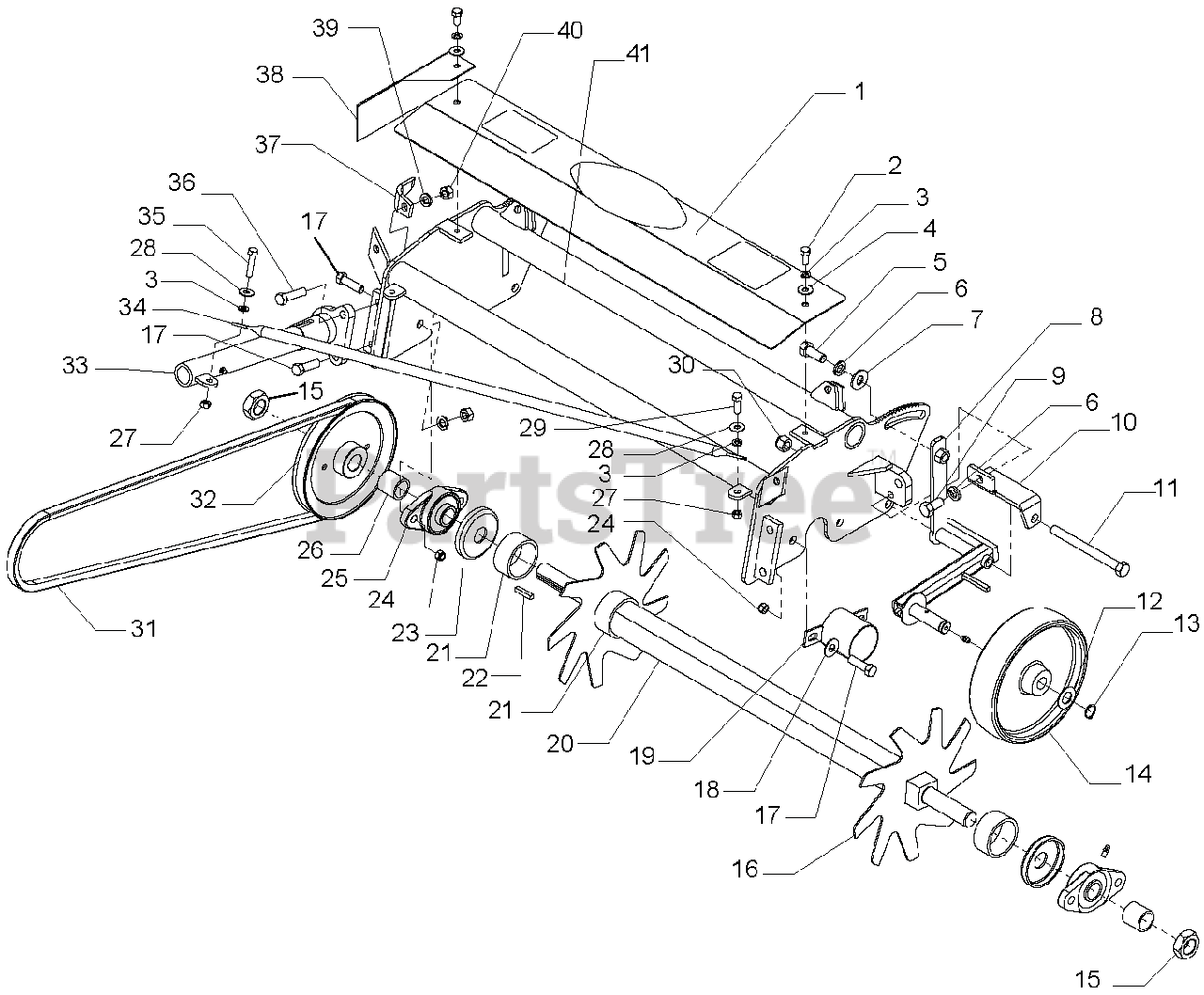

V-Cut Head Parts Diagram

  • Title

1

Gravely 02684000

TOP SHIELD TVM 1,2,3 50033896

$

$

Not available

2

Gravely 05900620

HHCS 5/16 X 3/4 G5 ZP 1161006

$

$

Not available

3

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

4

Gravely 06400419

FLATWASHER 5/16 ZP 15907

$

$

Not available

5

Gravely 05900925

HHCS 1/2-13 X 1-1/4 G5 44094

$

$

Not available

6

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

8

Gravely 02691900

WHEEL PIVOT ARM WELDM 50038250

$

$

Not available

Gravely 02691400

WHEEL PIVOT ARM WELDM 50037669

$

$

Not available

9

Gravely 05900805

HHCS 1/2-13 X 1 G5 20054

$

$

Not available

10

Gravely 02691000

WHEEL BRACE LEFT HAN 50037665

$

$

Not available

Gravely 02690900

WHEEL BRACE RIGHT HA 50037664

$

$

Not available

11

Gravely 05900815

HEX HD CPSC 1/2-13 X 5-1/2

$

$

Not available

12

Gravely 06400633

WHEEL WASHER 50022409

$

$

Not available

13

Gravely 05700117

SNAP RING 3/4 EXTERNAL 80437

$

$

Not available

14

Gravely 07100534

WHEEL 8.00IN OD X 2 50022365

$

$

Not available

15

Gravely 02117200

JAM NUT 1-14 NF 15614

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 02095700

DYNABLADE 9 TOOTH 10IN 110029

$

$

Not available

17

Gravely 05900638

HEX HD CPSC 7/16-14 X 1- 15012

$

$

Not available

18

Gravely 06400533

FLATWASHER 7/16 ZP SAE 44618

$

$

Not available

19

Gravely 02563900

SHAFT SHIELD WELDMENT 50022394

$

$

Not available

20

Gravely 02690800

BLADE SHAFT 50037663

$

$

Not available

21

Gravely 02562300

BLADE SPACER 50022376

$

$

Not available

22

Gravely 06600112

KEY .25 X .25 X 1.25 19459

$

$

Not available

23

Gravely 06400632

SHAFT WASHER 50022381

$

$

Not available

24

Gravely 06500520

HEX NUT 7/16-14 CP NYLOC 44617

$

$

Not available

25

Gravely 05400433

BEARING TWO BOLT FL 50022380

$

$

Not available

26

Gravely 07300411

PULLEY SPACER 50038257

$

$

Not available

27

Gravely 06500428

HEX NUT 5/16-18 YZ 15528

$

$

Not available

28

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

30

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

31

Gravely 07200402

V-BELT BX68 50022398

$

$

Not available

32

Gravely 07300410

PULLEY VERTI-CUT REEL

$

$

Not available

33

Gravely 02690000

V-CUT TELESCOPING ARM 50037653

$

$

Not available

34

Gravely 02549800

STAY ROD STABILIZER 50022199

$

$

Not available

35

Gravely 05900738

HHCS 5/16-18 X 1-1/2 20011

$

$

Not available

36

Gravely 05900626

HEX HD CPSC 7/16-14 X 1161416

$

$

Not available

37

Gravely 07300336

PULLEY SCRAPER R.H. 50022395

$

$

Not available

Gravely 07300337

PULLEY SCRAPER L.H. 50022396

$

$

Not available

38

Gravely 07300412

PULLEY GUARD R.H. 50038258

$

$

Not available

Gravely 07300413

PULLEY GUARD L.H. 50038259

$

$

Not available

39

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available

40

Gravely 06500611

HEX NUT 7/16 CP 8151400

$

$

Not available

41

Gravely 02692300

FRAME WELD #1 2 & 3 50038260

$

$

Not available
