895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Equalizer & Lift Arm Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

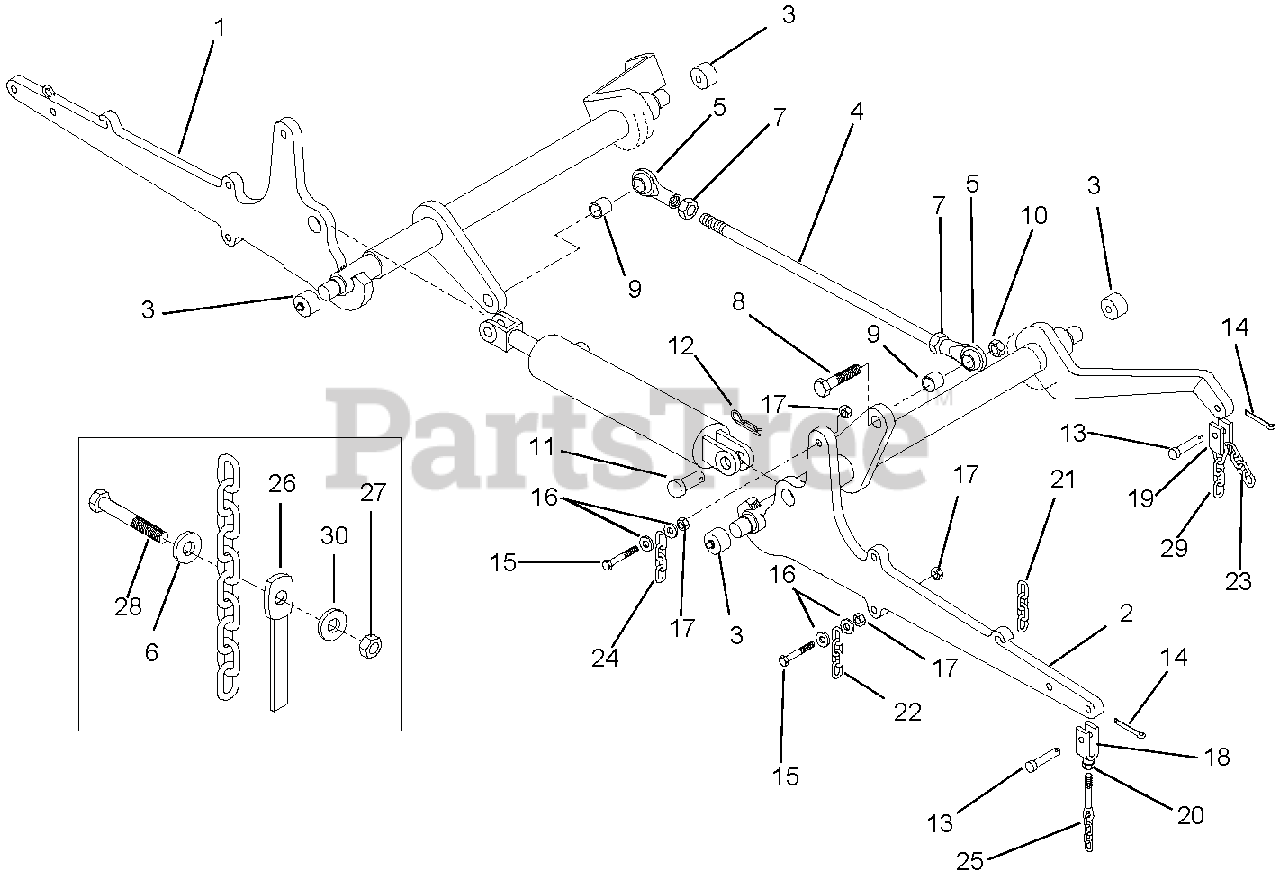

Equalizer & Lift Arm Assembly Parts Diagram

  • Title

1

Gravely 07001010

HYD. LIFT ARM WELDMEN 50022329

$

$

Not available

2

Gravely 07001009

HYD. LIFT ARM WELDMEN 50022328

$

$

Not available

3

Gravely 05400413

BEARING CUP ASSEMBLY 50019948

$

$

Not available

4

Gravely 02366400

SYNCHRONIZING ROD 50019873

$

$

Not available

5

Gravely 07000937

ROD END 3/4IN FEMAL 50019872

$

$

Not available

6

Gravely 02290200

FENDER WASHER 1/4 X 1-1/4```

$

$

Not available

7

Gravely 02223800

JAM NUT 3/4 CP NF 44606

$

$

Not available

8

Gravely 05900724

HHCS 3/4-10 X 3 G5 ZP 19021

$

$

Not available

9

Gravely 06400620

SPACER EQUALIZER ROD 50019914

$

$

Not available

10

Gravely 06500437

HEX NUT 3/4-10 CP 19517

$

$

Not available

11

Gravely 02289800

CLEVIS PIN 1 X 2 1/ 50019659

$

$

Not available

12

Gravely 06700128

HAIR PIN COTTER .125 44718

$

$

Not available

13

Gravely 06800033

PIN CLEVIS 3/8 X 1 1 44716

$

$

Not available

14

Gravely 06700119

COTTER PIN 5/32 X 1 Z 21020510

$

$

Not available

15

Gravely 05900931

HEX HD CPSC 3/8-16 X 1-3/4

$

$

Not available

16

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

17

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

18

Gravely 02369700

CLEVIS YOKE MODIFIED 50019916

$

$

Not available

19

Gravely 02369600

CLEVIS YOKE 50019915

$

$

Not available

20

Gravely 06500606

HEX NUT 3/8-16 UNPLATED

$

$

Not available

21

Gravely 02376000

TRANSPORT CHAIN 50019952

$

$

Not available

22

Gravely 02375200

LIFT CHAIN #1 50019949

$

$

Not available

23

Gravely 02367800

LIFT CHAIN #2 AND # 50019893

$

$

Not available

24

Gravely 02375600

LIFT CHAIN INNER (# 50019950

$

$

Not available

25

Gravely 02368100

LIFT CHAIN WELDMENT 50019895

$

$

Not available

26

Gravely 02542100

TARP STRAP 8 1/4 N 50022099

$

$

Not available

Gravely 02542300

TARP STRAP 14 1/4 N 50022100

$

$

Not available

27

Gravely 06500513

HEX NUT 1/4-20 CP NYLOCK 44566

$

$

Not available

28

Gravely 02223000

HEX SOC HD CPSC 1/4-20 X 1/2

$

$

Not available

29

Gravely 02374000

LIFT CHAIN #2 & #3 50019939

$

$

Not available

30

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available
