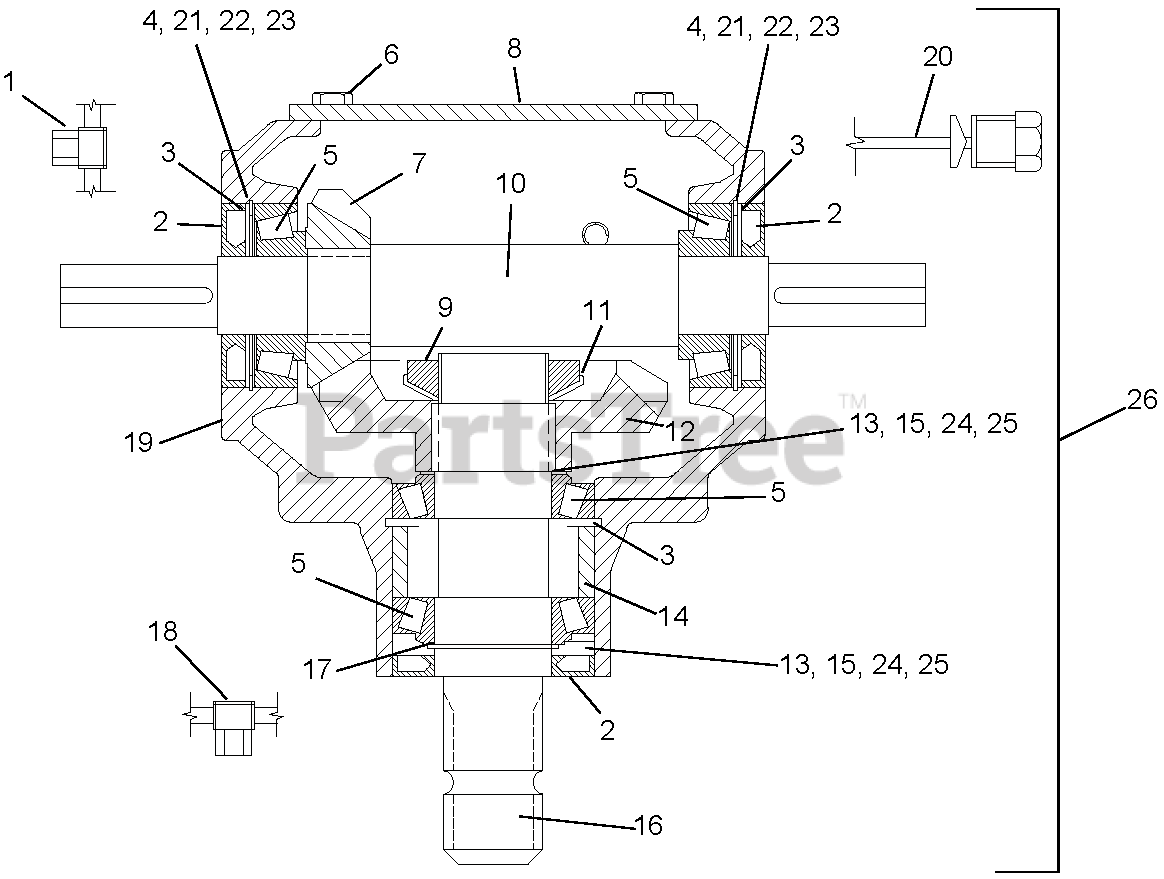

895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Gearbox Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

Gearbox Assembly Parts Diagram

  • Title

1

Gravely 02842900

OIL PLUG 70292

$

$

Not available

2

Gravely 05600423

OIL SEAL 36X72X10 70108

$

$

Not available

3

Gravely 05700114

SNAP RING 72 UN17437 70133

$

$

Not available

4

Gravely 02845100

SHIM 60.3MM ID X 71.7M 70642

$

$

Not available

5

Gravely 05400630

BEARING 30207 (5002231 70797

$

$

Not available

6

Gravely 05901140

BOLT M8 X 14 8.8 70903

$

$

Not available

7

Gravely 02558400

PINION Z15 M5 7 50022316

$

$

Not available

8

Gravely 02558500

COVER 50022317

$

$

Not available

9

Gravely 02844100

LOCK NUT M35 X 1.5 H8 70470

$

$

Not available

10

Gravely 02558600

SHAFT 50022318

$

$

Not available

11

Gravely 06400626

SPRING WASHER X1.25C4 50022319

$

$

Not available

12

Gravely 02558700

CROWN WHEEL Z22 M5 7 50022320

$

$

Not available

13

Gravely 02843500

SHIM 35.3MM ID X 48MM 70332

$

$

Not available

14

Gravely 06400627

SPACER 50022321

$

$

Not available

15

Gravely 02843400

SHIM 35.3MM ID X 48MM 70331

$

$

Not available

16

Gravely 02558800

SHAFT 1 3/8IN 50022322

$

$

Not available

17

Gravely 05700116

SNAP RING 35 UN17436 70841

$

$

Not available

18

Gravely 02071000

PLUG 1/4 F7502880

$

$

Not available

19

Gravely 02558900

CASING T3 50022323

$

$

Not available

20

Gravely 02559000

OIL LEVEL PLUG TCA 50022324

$

$

Not available

21

Gravely 02844800

SHIM 60.3MM ID X 71.7M 70639

$

$

Not available

22

Gravely 02844900

SHIM 60.3MM ID X 71.7M 70640

$

$

Not available

23

Gravely 02845000

SHIM 71.7 70641

$

$

Not available

24

Gravely 02843200

SHIM 48.0 70329

$

$

Not available

25

Gravely 02843300

SHIM 35.3MM ID X 48MM 70330

$

$

Not available

26

Gravely 02542400

GEARBOX ASSEMBLY 50022102

$

$

Not available
