895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Hydraulic System Parts Diagram

Tow-Behind Vertical Mower Attachment

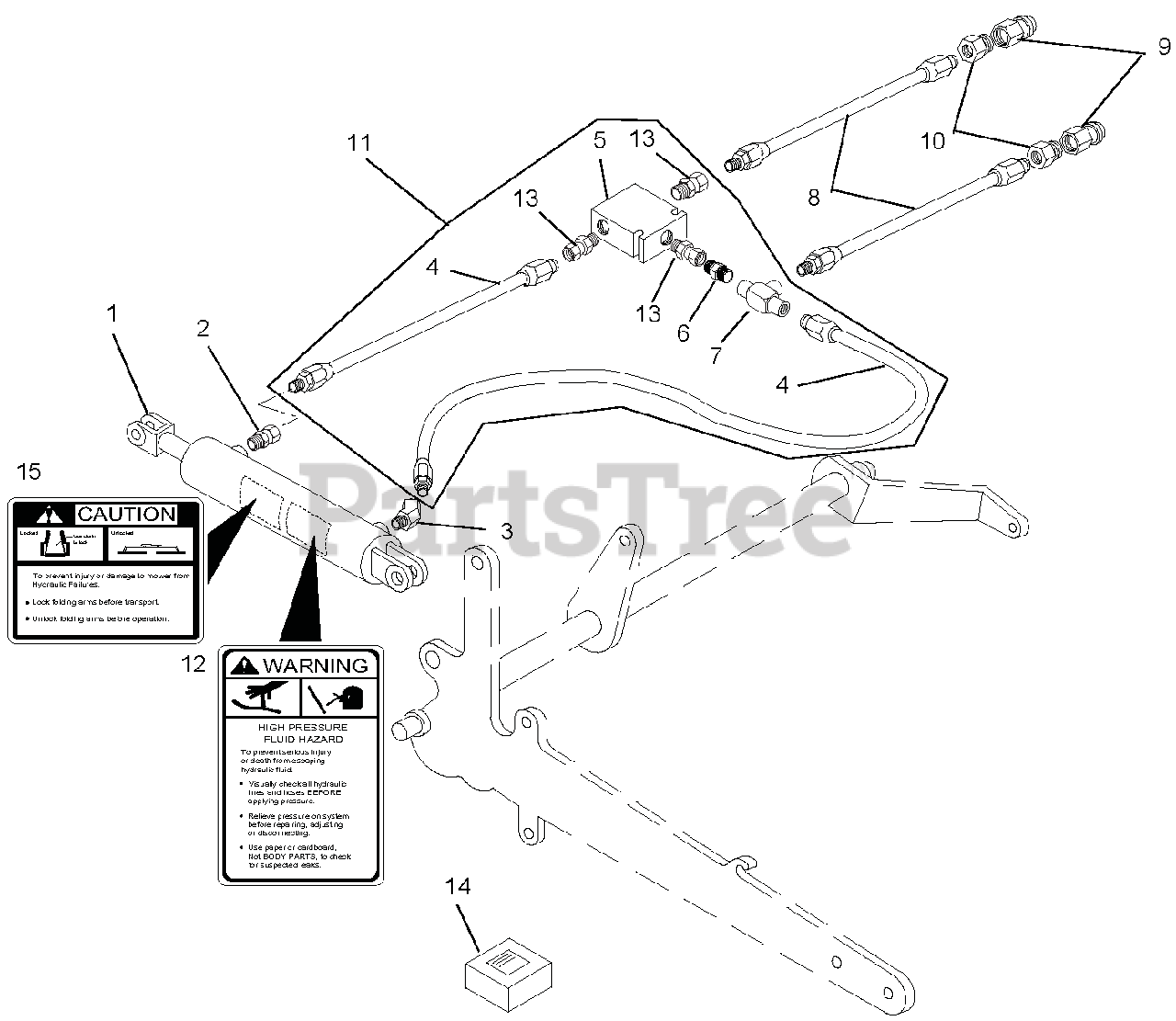

Hydraulic System Parts Diagram

  • Title

1

Gravely 07001007

HYDRAULIC CYLINDER AS 50022177

$

$

Not available

2

Gravely 07001005

ADAPTER 1/4 FNPT X 50022093

$

$

Not available

3

Gravely 07001006

ADAPTER 1/4 FNPT X 50022094

$

$

Not available

4

Gravely 07001002

HOSE ASSEMBLY 18IN 50019926

$

$

Not available

5

Gravely 02370500

CHECK VALVE 50019925

$

$

Not available

6

Gravely 02370900

NIPPLE 1/4 MNPT 50019928

$

$

Not available

7

Gravely 02370800

TEE 1/4 FNPT 50019927

$

$

Not available

8

Gravely 07001004

HOSE ASSEMBLY 120IN 50022091

$

$

Not available

9

Gravely 02542000

COUPLER 1/2 FNPT QD 50022092

$

$

Not available

10

Gravely 07001003

ADAPTER 1/2 MNPT X 50022090

$

$

Not available

11

Gravely 02371000

CHECK VALVE ASSEMBLY 50019929

Note: (Includes Items 4, 5, 6, 7, and 13)

$

$

Not available

12

Gravely 02541400

CAUTION DECAL 50022079

$

$

Not available

13

Gravely 07001416

ADAPTER 1/4 FNPT x 6 OR 811631

$

$

Not available

14

Gravely 05600310

SEAL KIT 50022590

Note: (for 07001007 Hydraulic Cylinder)

$

$

Not available

15

Gravely 02499600

WARNING DECAL 50022071

$

$

Not available
