895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Main Frame_TVM-5130 Parts Diagram

Tow-Behind Vertical Mower Attachment

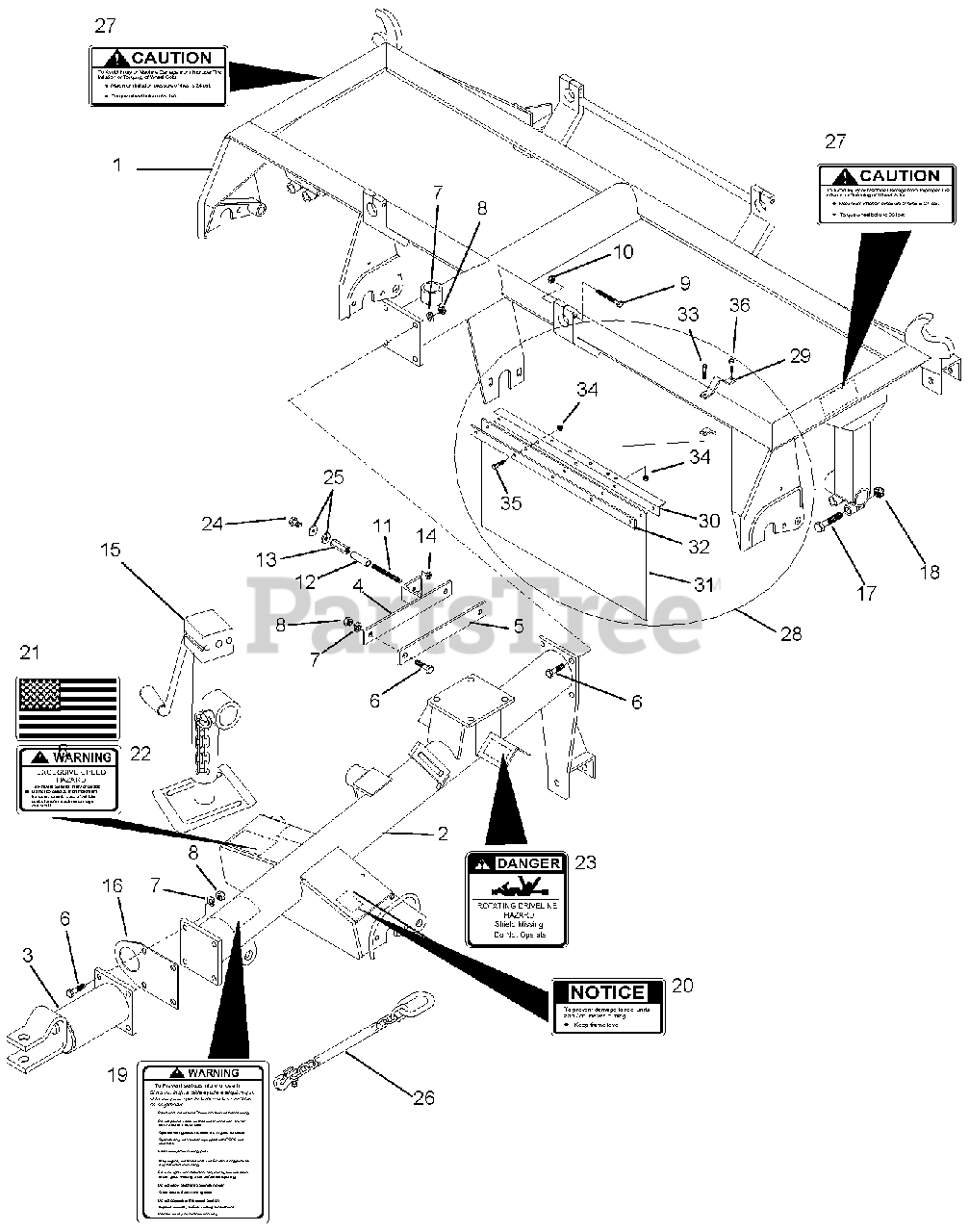

Main Frame_TVM-5130 Parts Diagram

  • Title

1

Gravely 02557700

Weldment, Mainframe

$

$

Not available

2

Gravely 02548300

Tongue Assembly

$

$

Not available

3

Gravely 02284100

Weldment, Clevis Hitch

$

$

Not available

4

Gravely 02367500

Weldment, Tongue Brace

$

$

Not available

5

Gravely 02373900

Brace, Tongue Left Hand

$

$

Not available

6

Gravely 05900703

Cap Screw, .50-13 x 1.5 Hex 5

$

$

Not available

7

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06500612

Nut, Hex .50

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05900727

Cap Screw, .375-16 x 3 Hex 5

$

$

Not available

10

Gravely 06500517

Nut, .375-16 Hex

$

$

Not available

11

Gravely 06000136

Stud, Belt Guard

$

$

Not available

12

Gravely 06400634

Spacer

$

$

Not available

13

Gravely 06500516

Nut, .375-16 Hex Coupler

$

$

Not available

14

Gravely 06500517

Nut .375-16 Hex CP Nylock

$

$

Not available

15

Gravely 05901115

Jack, Screw 5000 lb.

$

$

Not available

16

Gravely 07000938

Holder, Hydraulic Hose

$

$

Not available

17

Gravely 05900728

Cap Screw, .50-13 x 2.5 Hex 5

$

$

Not available

18

Gravely 06500510

Nut, .50-13 Hex Nylock

$

$

Not available

19

Gravely 02499800

Decal, Warning

$

$

Not available

20

Gravely 02541600

Decal, Notice

$

$

Not available

21

Gravely 02395300

Decal, US Flag

$

$

Not available

22

Gravely 02400000

Decal, Warning

$

$

Not available

23

Gravely 02394800

Decal, Danger

$

$

Not available

24

Gravely 05900731

Cap Screw, .375-16 x .75 Hex 5

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06400421

Washer, Flat .375

$

$

Not available

26

Gravely 02892100

Chain, Safety Tow

$

$

Not available

27

Gravely 02541100

Decal, Caution

$

$

Not available

28

Gravely 02561900

Deflector Assembly (Includes items 29-36)

Note: (Includes items 29-36)

$

$

Not available

29

Gravely 02552700

Clamp, Deflector

$

$

Not available

30

Gravely 02552600

Mounting Angle

$

$

Not available

31

Gravely 02561800

Deflector

$

$

Not available

32

Gravely 02561700

Clamp Bar

$

$

Not available

33

Gravely 05900738

Cap Screw, 5/16-18 x 1-1/2 Hex 5

$

$

Not available

34

Gravely 06500512

Nut, Hex Nyloc 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

35

Gravely 05900621

Cap Screw, 5/16-18 x 1 Hex

$

$

Not available

36

Gravely 05900702

Cap Screw, 5/16-18 x 1-1/4 Hex

$

$

Not available
