895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Main Frame_TVM-5130 Parts Diagram

Tow-Behind Vertical Mower Attachment

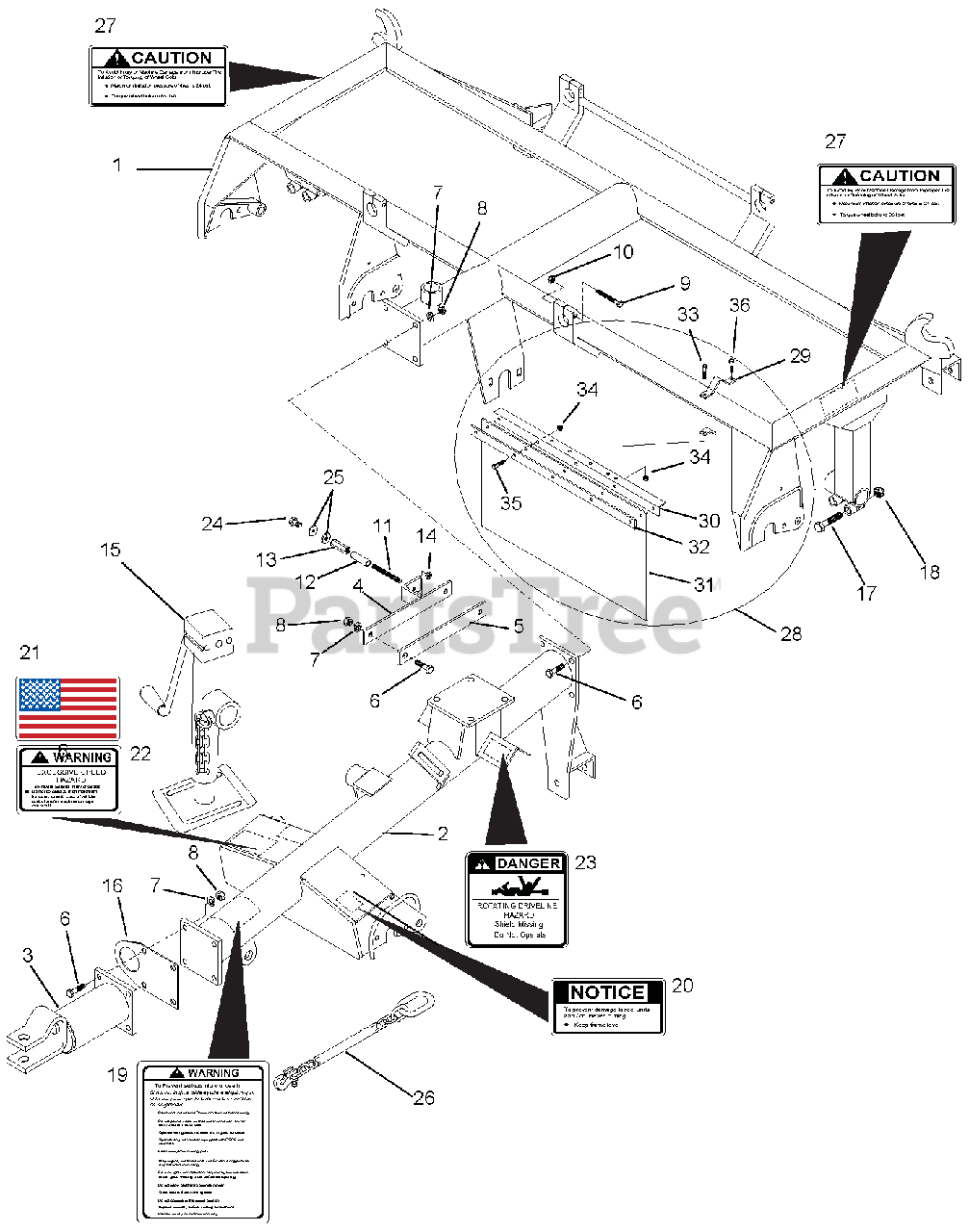

Main Frame_TVM-5130 Parts Diagram

  • Title

1

Gravely 02557700

MAINFRAME WELDMENT 5 50022306

$

$

Not available

2

Gravely 02548300

TONGUE ASSEMBLY 50022176

$

$

Not available

3

Gravely 02284100

CLEVIS HITCH WELDMENT 50019541

$

$

Not available

4

Gravely 02367500

BRACE WELDMENT TONGU 50019888

$

$

Not available

5

Gravely 02373900

TONGUE BRACE L.H. 50019938

$

$

Not available

6

Gravely 05900703

HHCS 1/2-13 X 1-1/2 G5 15093

$

$

Not available

7

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

9

Gravely 05900727

HHCS 3/8-16 X 3 G5 YZ 19055

$

$

Not available

10

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

11

Gravely 06000136

STUD BELT GUARD 50019944

$

$

Not available

12

Gravely 06400634

SPACER 50022437

$

$

Not available

13

Gravely 06500516

HEX NUT COUPLER 3/8-16 44600

$

$

Not available

14

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

15

Gravely 05901115

SCREW JACK 5000 LBS 50022109

$

$

Not available

16

Gravely 07000938

HYDRAULIC HOSE HOLDER 50019877

$

$

Not available

17

Gravely 05900728

HHCS 1/2-13 X 2-1/2 G5 19065

$

$

Not available

18

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

19

Gravely 02499800

WARNING DECAL 50022073

$

$

Not available

20

Gravely 02541600

NOTICE DECAL 50022081

$

$

Not available

21

Gravely 02395300

DECAL U.S.A. FLAG 50022067

$

$

Not available

22

Gravely 02400000

WARNING DECAL 50022070

$

$

Not available

23

Gravely 02394800

DANGER DECAL 50022066

$

$

Not available

24

Gravely 05900731

HEX HD CPSC 3/8-16 X 3/4 19100

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

26

Gravely 02892100

SAFETY TOW CHAIN 91091

$

$

Not available

27

Gravely 02541100

CAUTION DECAL 24LB TIRE PRESS

$

$

Not available

28

Gravely 02561900

DEFLECTOR ASSEMBLY 50022369

Note: (Includes items 29-36)

$

$

Not available

29

Gravely 02552700

CLAMP MOUNT DEFLECTO 50022236

$

$

Not available

30

Gravely 02552600

MOUNT ANGLE DEFLECTO 50022235

$

$

Not available

31

Gravely 02561800

DEFLECTOR 50022367

$

$

Not available

32

Gravely 02561700

CLAMP BAR DEFLECTOR 50022366

$

$

Not available

33

Gravely 05900738

HHCS 5/16-18 X 1-1/2 20011

$

$

Not available

34

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

35

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

36

Gravely 05900702

HHCS 5/16-18 X 1-1/4 15086

$

$

Not available
