895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) PTO Driveline Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

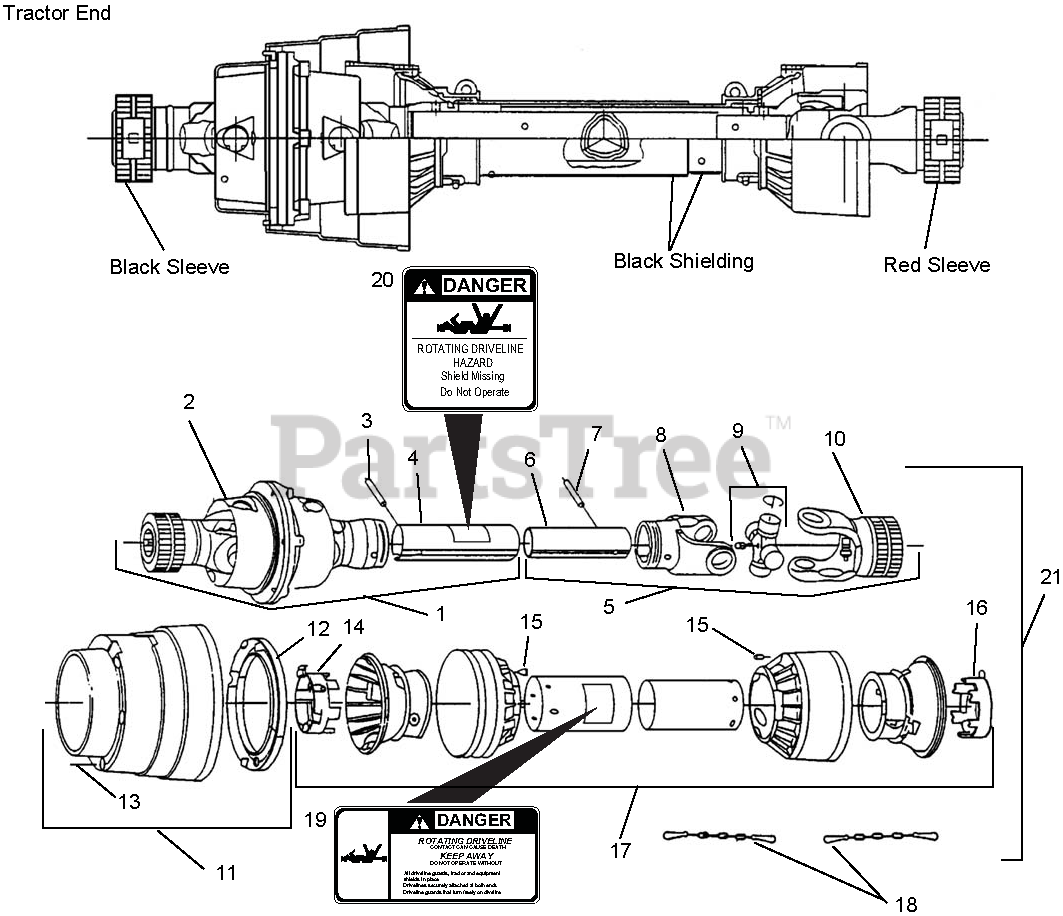

PTO Driveline Assembly Parts Diagram

  • Title

1

Half Shaft, Outer (Not Service Separately. Order Item 21, P/N 02542600)

Note: (Not Service Separately. Order Item 21, P/N 02542600)

$

$

Not available

2

Gravely 02579900

CV JOINT ASSEMBLY (TR 50022677

Note: (Tractor End)

$

$

Not available

3

Gravely 05800115

ROLL PIN 8MM X 60MM ( 50022678

$

$

Not available

4

Gravely 02580000

OUTER TUBE 50022679

$

$

Not available

5

Half Shaft, Inner (Not Service Separately. Order Item 21, P/N 02542600)

Note: (Not Service Separately. Order Item 21, P/N 02542600)

$

$

Not available

6

Gravely 07100606

INNER TUBE 50022681

$

$

Not available

7

Gravely 05800116

ROLL PIN 8MM X 55MM 50022682

$

$

Not available

8

Gravely 07100607

INNER TUBE YOKE 50022692

$

$

Not available

9

Gravely 02838800

CROSS AND BEARING KIT 64694

$

$

Not available

10

Gravely 02580300

YOKE ASSEMBLY (IMPLEM 50022684

Note: (Implement End)

$

$

Not available

11

Gravely 02580400

WIDE ANGLE SHIELD 50022685

$

$

Not available

12

Gravely 05400440

BEARING SOFT CONE 50022686

$

$

Not available

13

Gravely 05901119

SELF-TAPPING #6 SCREW 50022687

$

$

Not available

14

Gravely 02580500

TUBE BEARING OUTER 50022688

$

$

Not available

15

Gravely 02579600

LOCK PIN 50022669

$

$

Not available

16

Gravely 02580600

TUBE BEARING INNER 50022689

$

$

Not available

17

Gravely 02580700

SAFETY SHIELD 50022691

$

$

Not available

18

Chain, Safety

$

$

Not available

19

Gravely 02868600

DANGER DECAL 78608

$

$

Not available

20

Gravely 02868800

DANGER DECAL 78786

$

$

Not available

21

Gravely 02542600

DRIVELINE ASSEMBLY 50022104

$

$

Not available
