895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Rear Jackshaft Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

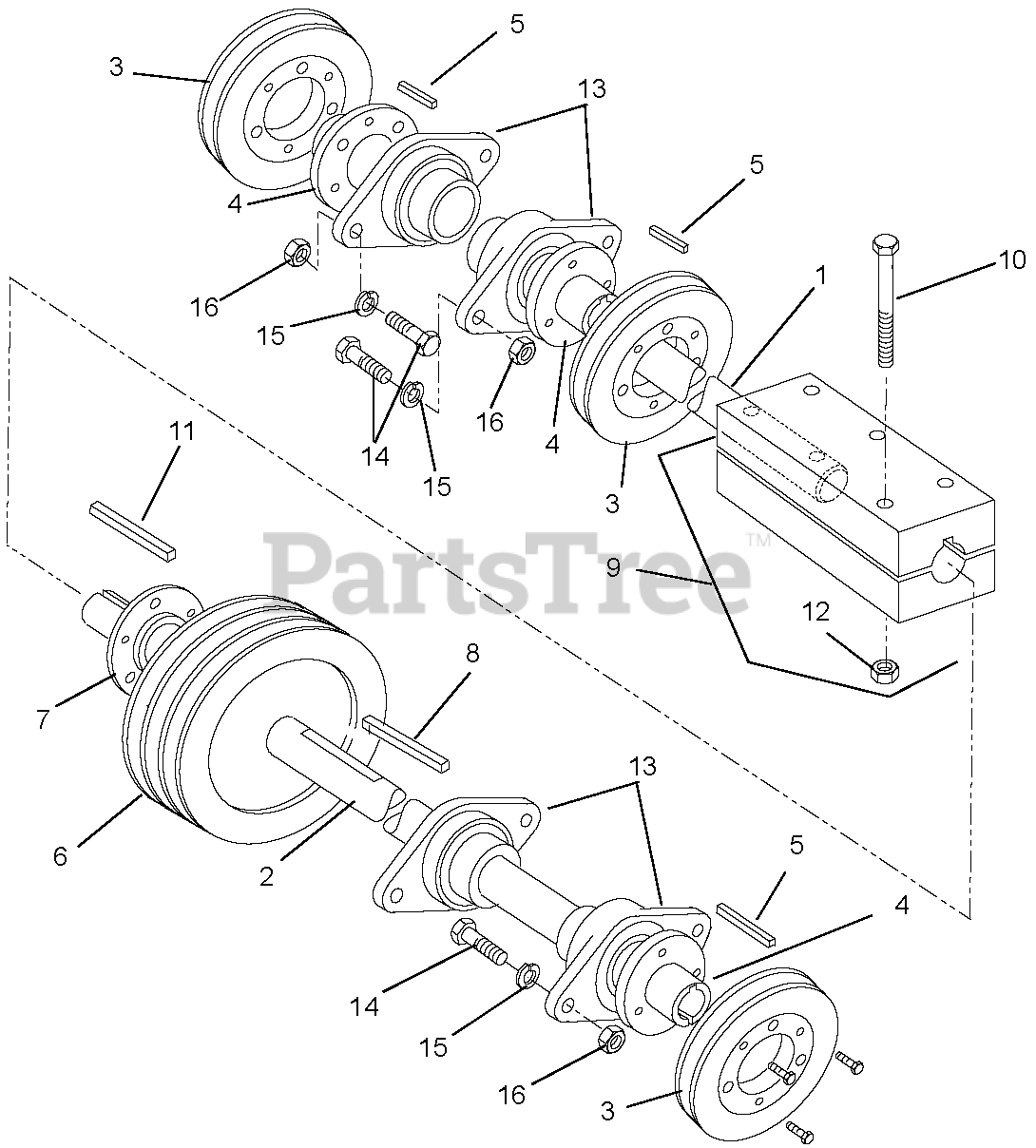

Rear Jackshaft Assembly Parts Diagram

  • Title

1

Gravely 02559200

JACKSHAFT RIGHT REAR 50022327

$

$

Not available

2

Gravely 02367200

JACKSHAFT LEFT REAR 50019883

$

$

Not available

3

Gravely 07300329

PULLEY TAPER LOCK 50022084

$

$

Not available

4

Gravely 05500629

SPLIT BUSHING TAPER 50022105

$

$

Not available

5

Gravely 06600207

KEY SQUARE 1/4X1/4X1 93810

$

$

Not available

6

Gravely 07300340

PULLEY 3 GROOVE 6.6 50022419

$

$

Not available

7

Gravely 05500635

SPLIT BUSHING TAPER 50022428

$

$

Not available

8

Gravely 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02380300

JACKSHAFT COUPLING AS 50019999

$

$

Not available

10

Gravely 05900817

HEX HD CPSC 5/16-18 X 2-1/2 G5

$

$

Not available

11

Gravely 06600122

KEY .25 X .25 X 5IN 50019885

$

$

Not available

12

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

13

Gravely 05400424

BEARING FLANGE 2 BO 50022101

$

$

Not available

14

Gravely 05901022

HHCS 7/16-14 X 1-1/4 G5 44614

$

$

Not available

15

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available

16

Gravely 06500611

HEX NUT 7/16 CP 8151400

$

$

Not available
