895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Single/Dual Compensator And Tie Rod Assemblies Parts Diagram

Tow-Behind Vertical Mower Attachment

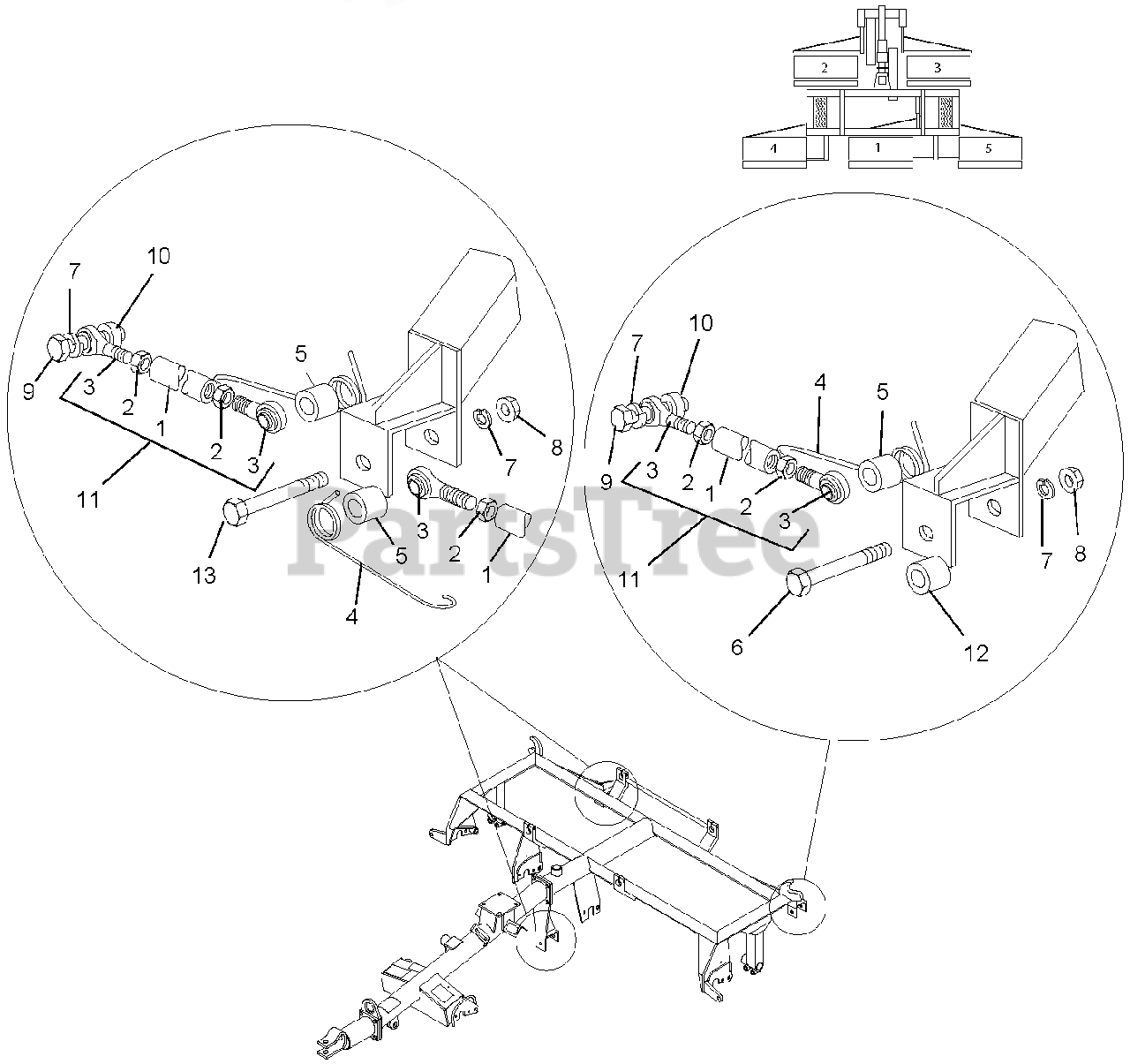

Single/Dual Compensator And Tie Rod Assemblies Parts Diagram

  • Title

1

Gravely 02369200

TIE ROD REAR 50019910

$

$

Not available

2

Gravely 06500532

HEX NUT 5/8-18 CP 44743

$

$

Not available

Gravely 06500531

HEX NUT 5/8-18 LH CP 44710

$

$

Not available

3

Gravely 07000936

ROD END 5/8 BORE 50019870

$

$

Not available

Gravely 07000935

ROD END 5/8 BORE 50019868

$

$

Not available

4

Gravely 02541800

COMPENSATOR SPRING 50022083

$

$

Not available

5

Gravely 02374400

COMPENSATOR SPACER L 50019940

$

$

Not available

6

Gravely 05900930

HEX HD CPSC 5/8-11 X 3-3/4

$

$

Not available

7

Gravely 06300038

LOCKWASHER 5/8 CP 19486

$

$

Not available

8

Gravely 06500431

HEX NUT 5/8-11 CP 15563

$

$

Not available

9

Gravely 05900826

HEX HD CPSC 5/8-11 X 2 G 20947

$

$

Not available

10

Gravely 06400618

SPACER 50019875

$

$

Not available

11

Gravely 02369300

TIE ROD ASSEMBLY SHO 50019911

$

$

Not available

12

Gravely 02374500

COMPENSATOR SPACER S 50019941

$

$

Not available

13

Gravely 05901025

HEX HD CPSC 5/8-11 X 4-3/4

$

$

Not available
