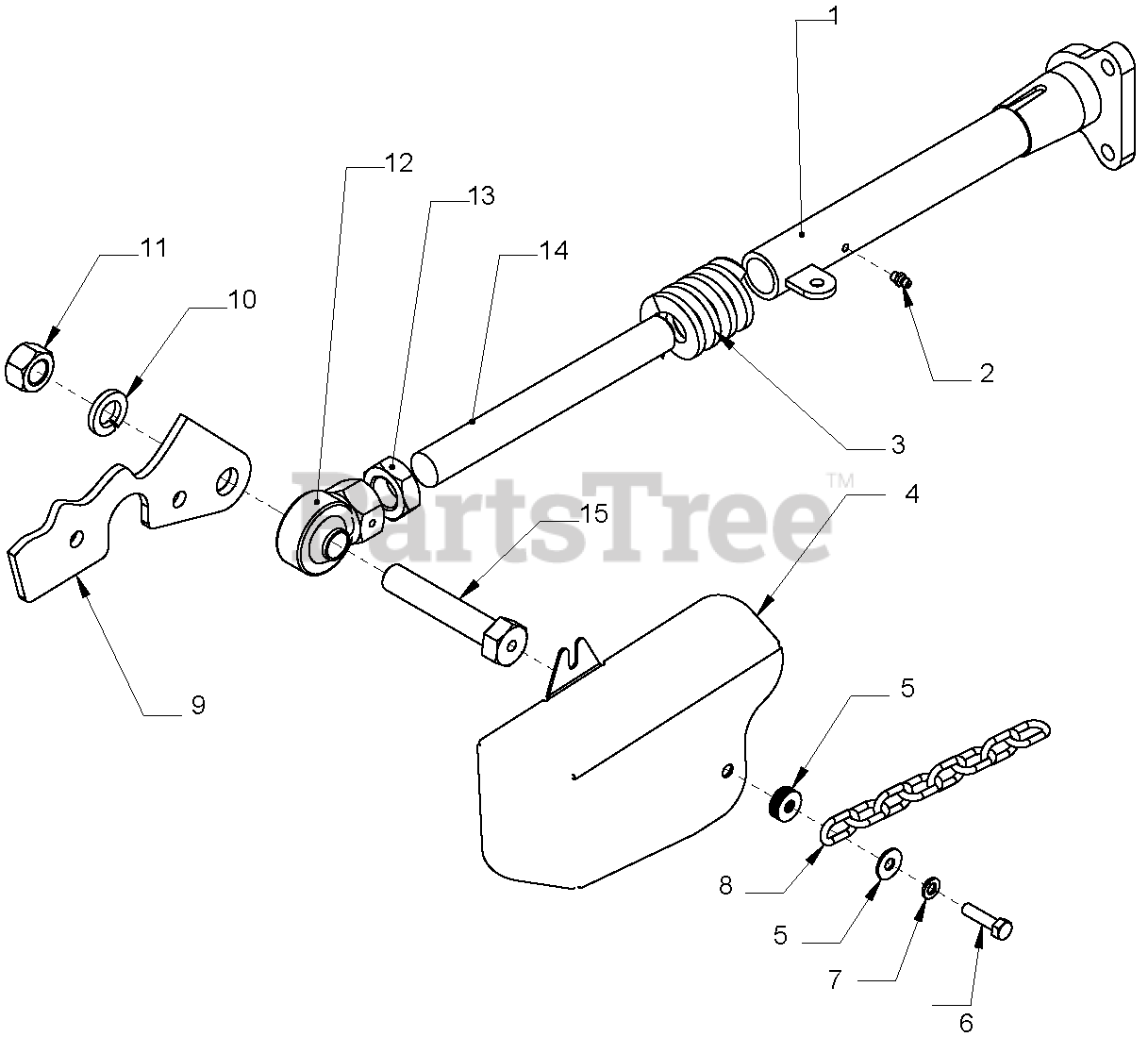

895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Telescoping Arm And Parts Parts Diagram

Tow-Behind Vertical Mower Attachment

Telescoping Arm And Parts Parts Diagram

  • Title

1

Gravely 02690000

V-Cut Telescoping Arm

$

$

Not available

2

Gravely 07000916

Grease Fitting, 1/4-28

$

$

Not available

3

Gravely 02686100

Die Spring, Compression

$

$

Not available

4

V-Belt Guard (see page 22)

V-Belt Guard (see page 22)

Note: (see page 22)

$

$

Not available

5

Gravely 06400419

Washer, Flat 5/16 USS CP

$

$

Not available

6

Gravely 05900702

Cap Screw, Hex Head 5/16-18 x 1-1/4

$

$

Not available

7

Gravely 06300029

Washer, Lock 5/16 CP

$

$

Not available

8

Gravely 02545100

Safety Chain, 8 Links

$

$

Not available

9

Main Frame (see page 18)

Main Frame (see page 18)

Note: (see page 18)

$

$

Not available

10

Gravely 06300026

Washer, Lock, 3/4 CP

$

$

Not available

11

Gravely 06500437

Nut, Hex 3/4-10 CP

$

$

Not available

12

Gravely 02564000

Ball Socket Weldment

$

$

Not available

13

Gravely 02686000

Jam Nut, 1-8 Nyloc

$

$

Not available

14

Gravely 02561600

Telescoping Arm Shaft

$

$

Not available

15

Gravely 05901116

Bolt, Pivot

$

$

Not available
