895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) V-Belt Guards Parts Diagram

Tow-Behind Vertical Mower Attachment

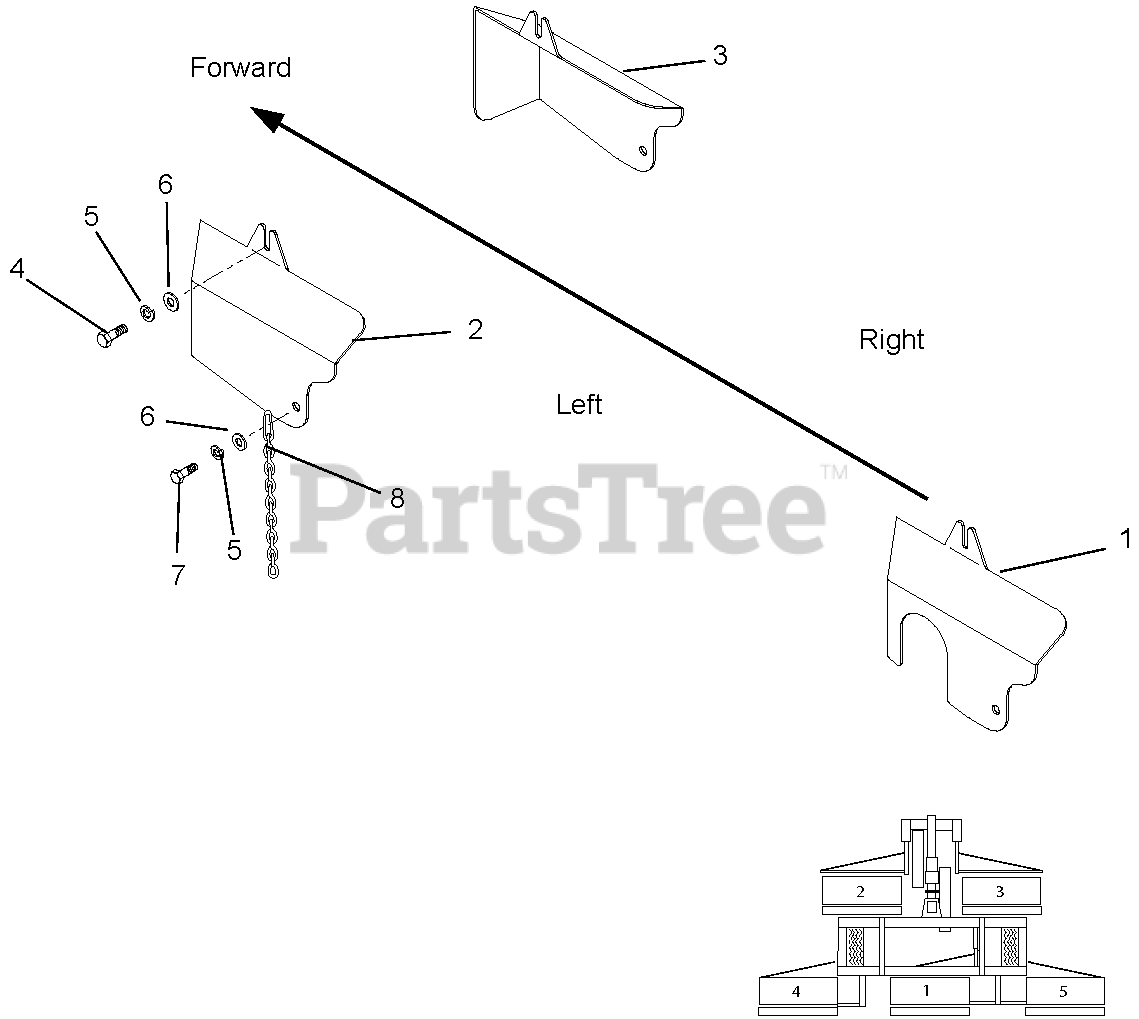

V-Belt Guards Parts Diagram

  • Title

1

Gravely 02371600

Weldment, Belt Guard Center Rear ? Unit 1

$

$

Not available

2

Gravely 02371800

Weldment, Belt Guard Outside Left ? Units 2 & 4

$

$

Not available

3

Gravely 02371900

Weldment, Belt Guard Outside Right ? Units 3 & 5

$

$

Not available

4

Gravely 05900620

Cap Screw, Hex Head .312 x .75

$

$

Not available

5

Gravely 06300029

Washer, Lock .312

$

$

Not available

6

Gravely 06400419

Washer, Flat .312

$

$

Not available

7

Gravely 05900702

Cap Screw .312-18 x 1.25

$

$

Not available

8

Gravely 02545100

Chain, 8-LInk

$

$

Not available
