895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Wheel, Axle And Hub Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

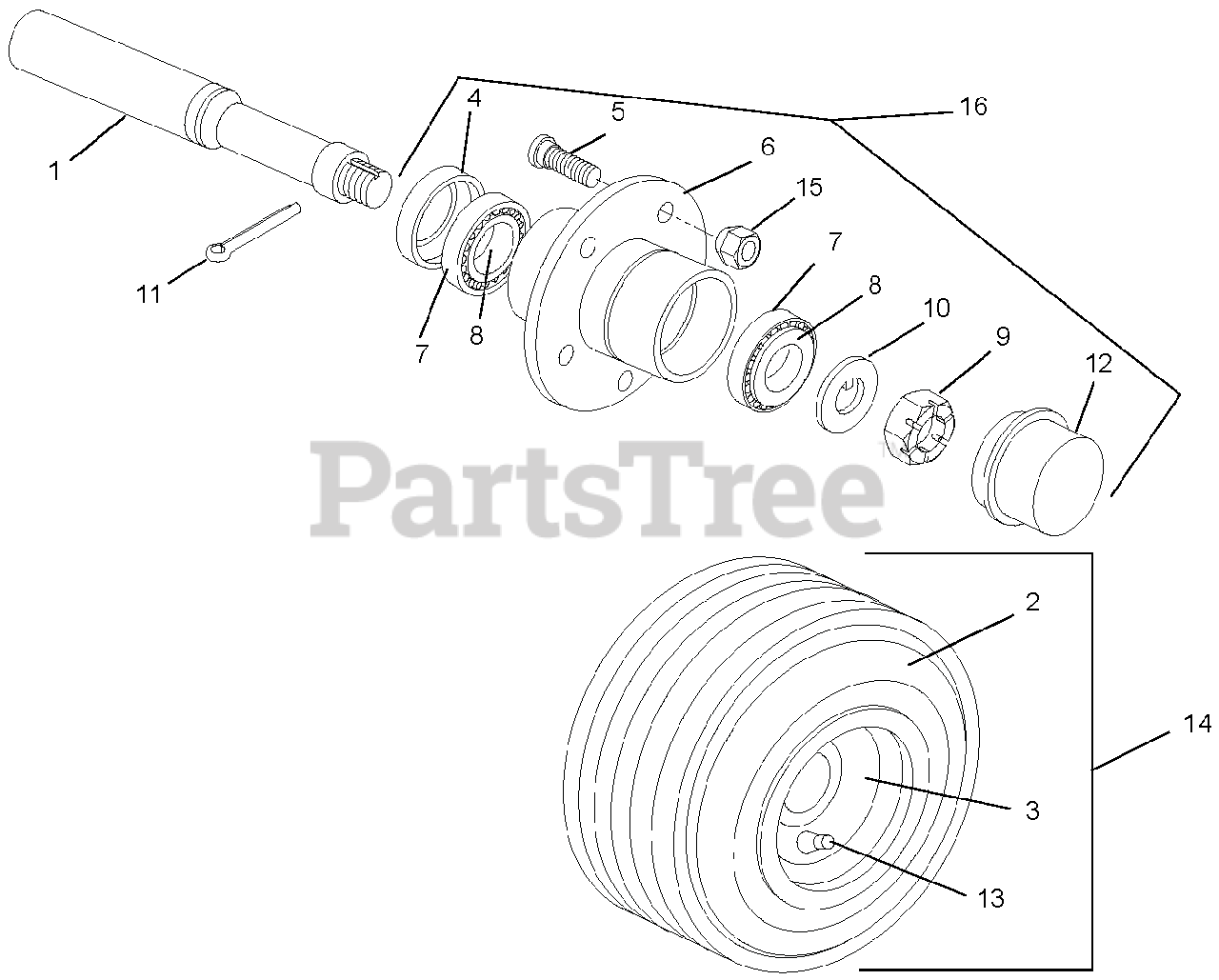

Wheel, Axle And Hub Assembly Parts Diagram

  • Title

1

Gravely 02366800

AXLE 10.00IN 50019879

$

$

Not available

2

Gravely 07100601

TIRE 18 X 8.50 X 8 50022630

$

$

Not available

3

Gravely 07100540

WHEEL 8 X 7 5 HOL 50022626

$

$

Not available

4

Gravely 05600313

SEAL CR# 12437 50022632

$

$

Not available

5

Gravely 07100631

LUG BOLT 1/2-20 X 1_7/ 52012

$

$

Not available

6

Gravely 07100602

HUB W/ BOLTS AND BEAR 50022631

$

$

Not available

7

Gravely 05400318

BEARING CUP 1.9687 OD X 170

$

$

Not available

8

Gravely 05400320

BEARING CONE 1.000 BORE X 22

$

$

Not available

9

Gravely 06500420

HEX NUT 3/4-16 CP CASTELLA 120

$

$

Not available

10

Gravely 06400614

KEYED WASHER 3/4 PL 50019662

$

$

Not available

11

Gravely 06700115

COTTER PIN 1/8 X 1-1/4 Z 20166

$

$

Not available

12

Gravely 07100603

HUB CAP 50022633

$

$

Not available

13

Gravely 07100729

VALVE STEM, TR-412 50022627

$

$

Not available

14

Gravely 07100531

TIRE AND WHEEL ASSEMB 50022178

$

$

Not available

15

Gravely 06500427

HEX HUB NUT 1/2-20 UNF 15515

$

$

Not available

16

Gravely 07100529

HUB ASSEMBLY 5 BOLT 50022095

$

$

Not available
