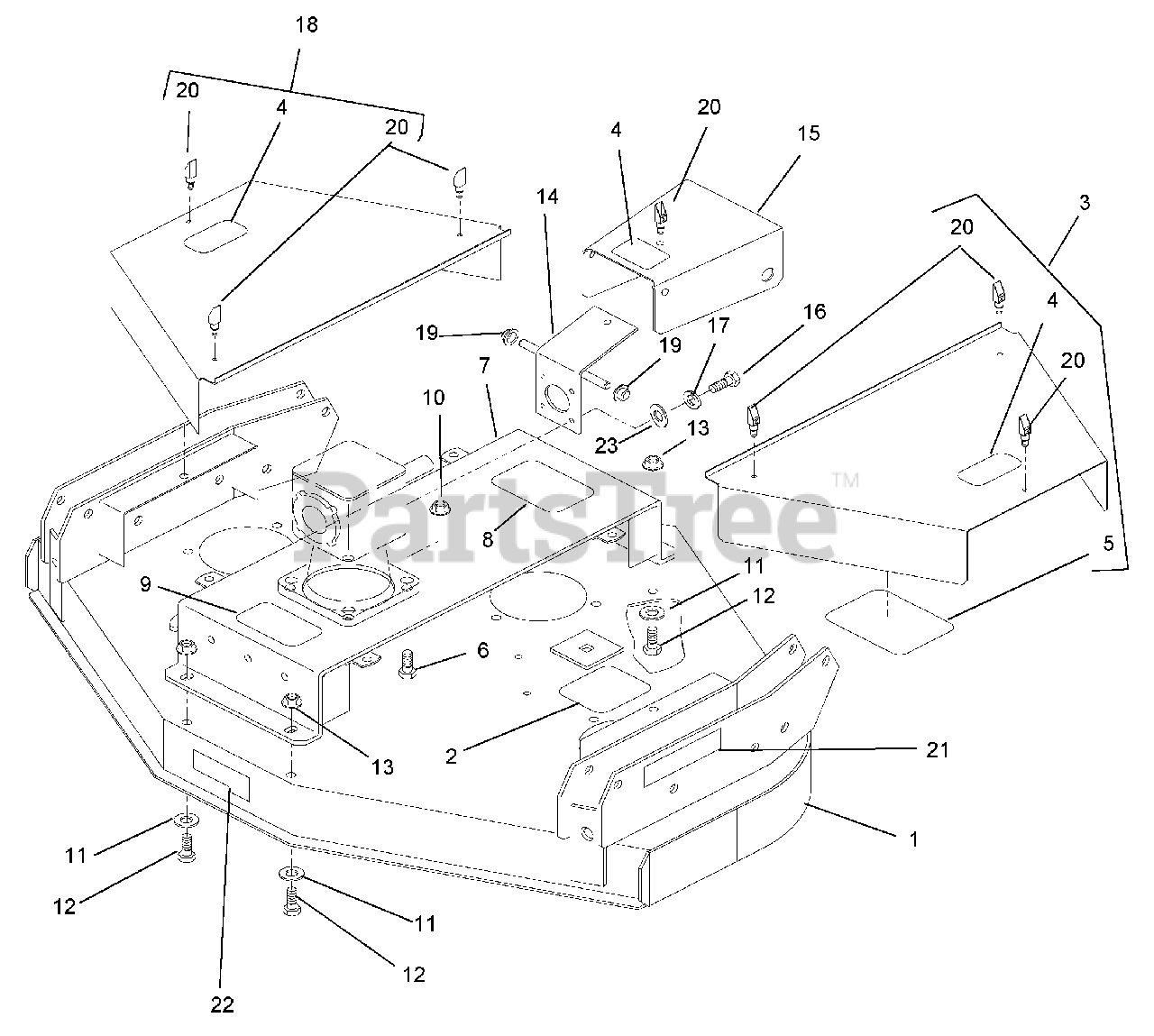

895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Base Frame & Shielding Parts Diagram

Tow-Behind Mulching Mower Attachment

Base Frame & Shielding Parts Diagram

  • Title

1

Gravely 03289500

Deck With Decals

$775.99

$

Usually ships in 4-12 days

0

2

Gravely 02231300

Decal, Danger

$

$

Not available

3

Gravely 02947500

Shield, RH Belt With Decals (Includes items 4, 5 and 20)

Note: (Includes items 4, 5 and 20)

$

$

Not available

4

Gravely 02231200

Decal, Warning

$

$

Not available

5

Gravely 02940900

Decal, Belt Installation

$

$

Not available

6

Gravely 05900704

Cap Screw, Hex Head .625-11 x 1.75

$

$

Not available

7

Gravely 03289600

Stand, Gearbox With Decals

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 02881600

Decal, Warning

$

$

Not available

9

Gravely 02880800

Decal, Danger

$

$

Not available

10

Gravely 02144400

Nut, Flange Lock .625-11

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06400422

Washer, Flat .50

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05900925

Cap Screw, Hex Head 1/3-13 x 1-1/4

$

$

Not available

13

Gravely 02140600

Nut, Flange Lock .50-13

$

$

Not available

14

Gravely 02943051

Weldment, Base

$

$

Not available

15

Gravely 02942400

Shield With Decal

$

$

Not available

16

Gravely 07000908

Cap Screw, Hex Head M8 x 20

$

$

Not available

17

Gravely 06300029

Washer, Lock .312

$

$

Not available

18

Gravely 02947600

Shield, Belt LH With Decals (Includes items 4 and 20)

Note: (Includes items 4 and 20)

$

$

Not available

19

Gravely 02232000

Cap, ILS

$

$

Not available

20

Gravely 02943700

Latch, Swell

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 04298600

Decal, Model MP-3132

$

$

Not available

Gravely 04298700

Decal, Model FP-3132

$

$

Not available

22

Gravely 05239900

Decal, 9.5-inch Gravely Logo Decal

$9.99

$

In Stock, only 3 left!

0

23

Gravely 06400509

Washer, Flat 5/16 SAE Hard YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0
