895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Blades, Belts And Pulleys - MP Parts Diagram

Tow-Behind Mulching Mower Attachment

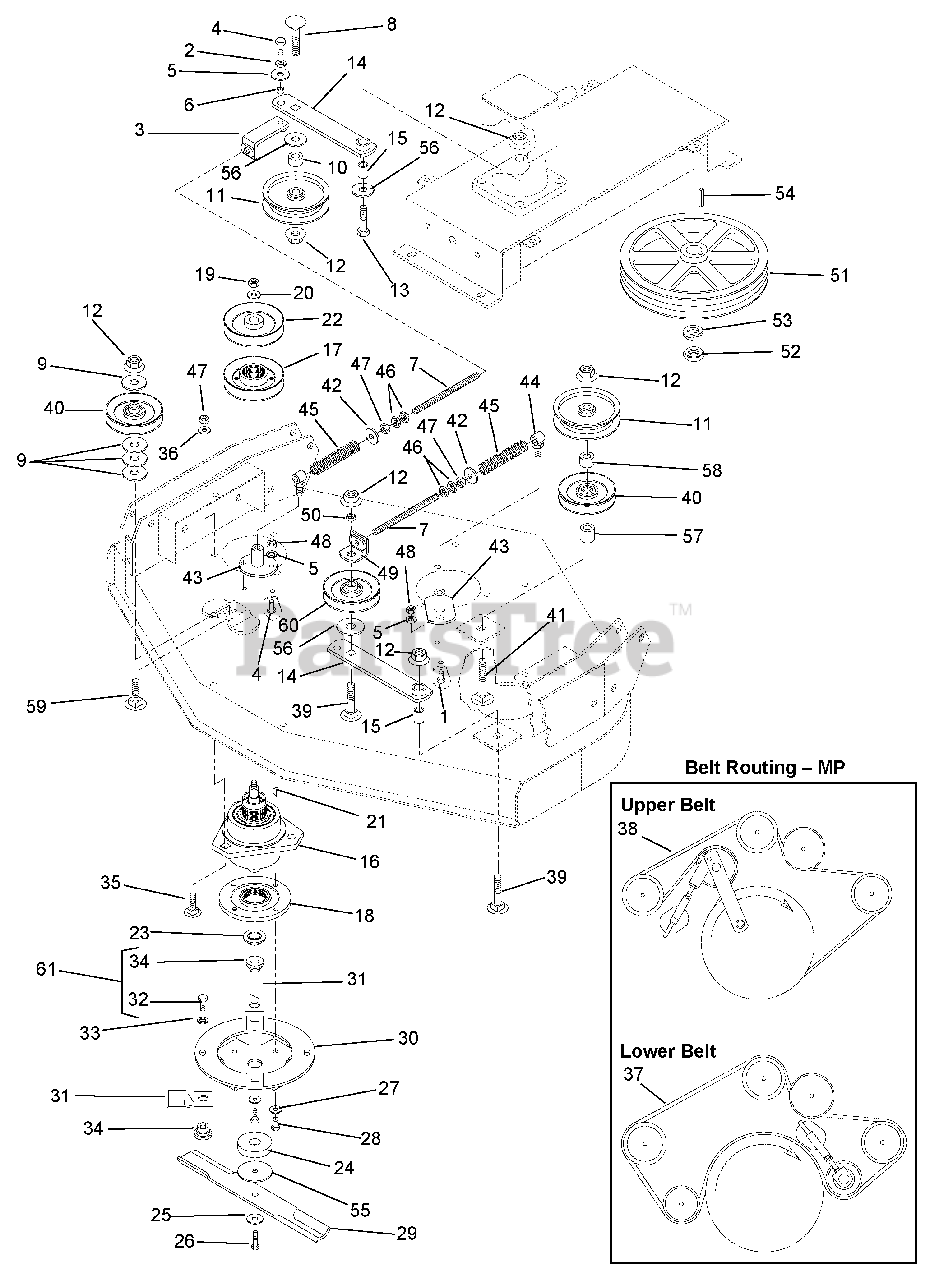

Blades, Belts And Pulleys - MP Parts Diagram

  • Title

1

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06300030

Washer, Lock .38

$

$

Not available

3

Gravely 02935551

Weldment, Adjustment Rod

$

$

Not available

4

Gravely 05900623

Cap Screw, Hex Head .38-16 x 1.25

$

$

Not available

5

Gravely 06400421

Washer, Flat .38

$

$

Not available

6

Gravely 05500810

Bushing

$

$

Not available

7

Gravely 02936900

Rod, Threaded

$

$

Not available

8

Gravely 06200026

Bolt, Carriage .625-11 x 3

$

$

Not available

9

Gravely 06400731

Washer, Flat 1.125

$

$

Not available

10

Gravely 03294551

Spacer .69

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 02885651

Assembly, Idler
(Superseded to 02885600)

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 02144400

Nut, Flange Lock .625-11

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05901238

Bolt, Pivot

$

$

Not available

14

Gravely 02935451

Weldment, Idler Arm

$

$

Not available

15

Gravely 05500533

Sleeve, Pivot

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 02245051

Spindle Assembly (Includes items 17 – 22)

Note: (Includes items 17 – 22)

$711.99

$

Usually ships in 4-12 days

0

17

Gravely 02933800

Sheave, Lower

$170.99

$

Usually ships in 4-12 days

0

18

Gravely 02933600

Carrier, Blade

$153.99

$

Usually ships in 4-12 days

0

19

Gravely 02892600

Nut, Lock .625-11

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06400511

Washer, Flat .325

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 02145000

Key, Woodruff #606

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 02931400

Sheave 5.50 EOD

$55.99

$

Usually ships in 4-12 days

0

23

Gravely 05500539

Bushing, Blade

$

$

Not available

24

Gravely 06400720

Washer, Blade

$59.48

$

Usually ships in 4-12 days

0

25

Gravely 06400531

Washer, Heavy Duty Safety

$

$

Not available

26

Gravely 05901004

Cap Screw, Hex Head .50-20 x 1.75

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 06400809

Washer, Belleville

$

$

Not available

28

Gravely 05900731

Cap Screw, Hex Head .38-16 x .75

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 02877900

Blade, C.W.

$

$

Not available

02672800 3

Blade, Mulching 17" C.W.

$

$

Not available

30

Gravely 02238800

Weldment, Disc

$

$

Not available

31

Gravely 02823300

Blade, LH (each)

Note: (each)

$

$

Not available

Gravely 02885200

Blade Kit (Package of 20 blades)

Note: (Package of 20 blades)

$

$

Not available

32

Gravely 07001339

Cap Screw, Flanged .38 x .875

$

$

Not available

33

Gravely 06400417

Washer, Flat .38 SAE

$

$

Not available

34

Gravely 02823100

Nut, Blade

$

$

Not available

35

Gravely 06200107

Bolt, Carriage .50-13 x 1.50

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 07200425

Belt, HBB 101.0

$66.99

$

In Stock, only 3 left!

0

38

Gravely 07200424

Belt, HB 115.0

$68.99

$

Usually ships in 4-12 days

0

39

Gravely 06200025

Bolt, Carriage .625 x 2.50

$

$

Not available

40

Gravely 02938451

Idler, V 5.5

$116.99

$

In Stock, only 2 left!

0

41

Gravely 06200037

Bolt, Carriage .625 x 4.5

$9.49

$

In Stock, only 2 left!

0

42

Gravely 06400422

Washer, Flat .50 USS

$3.49

$

Usually ships in 4-12 days

0

43

Gravely 02936051

Weldment, Pivot Mount

$

$

Not available

44

Gravely 02932551

Weldment, Pivot

$46.99

$

Usually ships in 4-12 days

0

45

Gravely 08300451

Spring 1.10 O.D.

$

$

Not available

46

Gravely 02116100

Nut, Jam .50-13

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 06500612

Nut, Hex .50 CP

$3.49

$

Usually ships in 4-12 days

0

48

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

49

Gravely 09975851

Weldment, Pivot Angle

$

$

Not available

50

Gravely 05500808

Bushing

$

$

Not available

51

Gravely 02899251

Sheave, Machined 15.16 Diameter

$924.99

$

Usually ships in 4-12 days

0

52

Gravely 02842800

Nut, Hex M30 x 2

$

$

Not available

53

Gravely 02842700

Washer, Spring Outer Tooth

$18.99

$

Usually ships in 4-12 days

0

54

Gravely 06600201

Key 6mm x 6mm x 30mm

$

$

Not available

55

Gravely 06400851

Spacer

$

$

Not available

56

Gravely 06400511

Washer, Flat .625 SAE

$3.49

$

Usually ships in 4-12 days

0

57

Gravely 06400814

Spacer, Idler Long

$

$

Not available

58

Gravely 06400815

Spacer, Idler Short

$

$

Not available

59

Gravely 06200109

Bolt, Carriage .625 x 2

$

$

Not available

60

Gravely 02937951

Idler, V 4.7 E.O.D.

$85.99

$

Usually ships in 4-12 days

0

61

Gravely 05901222

Blade Nut and Bolt Kit (Includes 40 each of item 32 and 40 each of item 34)

Note: (Includes 40 each of item 32 and 40 each of item 34)

$

$

Not available
