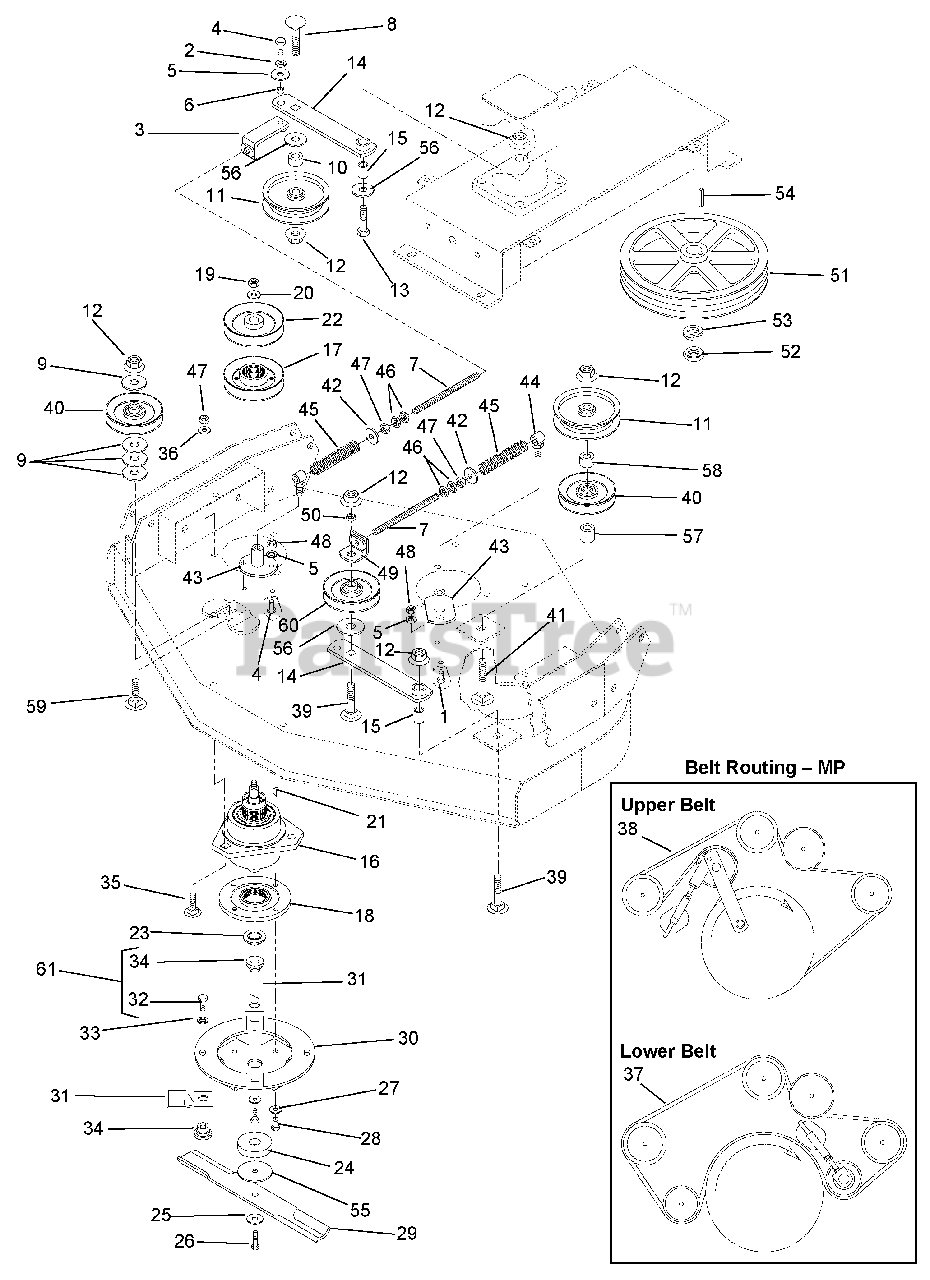

895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Blades, Belts And Pulleys - MP Parts Diagram

Tow-Behind Mulching Mower Attachment

Blades, Belts And Pulleys - MP Parts Diagram

  • Title

1

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

3

Gravely 02935551

ADJUSTMENT ROD WELDMENT 96800

$

$

Not available

4

Gravely 05900623

HHCS 3/8-16 X 1-1/4 G5 1161212

$

$

Not available

5

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

6

Gravely 05500810

BUSHING 95807

$

$

Not available

7

Gravely 02936900

ROD; THREADED 96997

$

$

Not available

8

Gravely 06200026

CARR BOLT 5/8-11 X 3 G5 20314

$

$

Not available

9

Gravely 06400731

FLATWASHER 6050133

$

$

Not available

10

Gravely 03294551

SPACER; .69

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 02885651

IDLER ASSEMBLY 88663
(Superseded to 02885600)

$76.99

$

Usually ships in 4-12 days

0

12

Gravely 02144400

NUT FLANGE LOC 5/8-11 20414

$

$

Not available

13

Gravely 05901238

PIVOT BOLT 5/8-11 X 3

$

$

Not available

14

Gravely 02935451

IDLER ARM WELDMENT 96649

$

$

Not available

15

Gravely 05500533

SLEEVE; PIVOT 50017112

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 02245051

SPINDLE ASSY.; MULCHI 50018216

Note: (Includes items 17 - 22)

$

$

Not available

17

Gravely 02933800

LOWER SHEAVE 96165

$182.99

$

Usually ships in 4-12 days

0

18

Gravely 02933600

BLADE CARRIER 96161

$164.99

$

Usually ships in 4-12 days

0

19

Gravely 02892600

LOCKNUT 5/8-11 GRC CP

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

21

Gravely 02145000

WOODRUFF KEY #606 (3/4 20593

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 02931400

SHEAVE; 5.50 EOD 95752

$59.99

$

Usually ships in 4-12 days

0

23

Gravely 05500539

BUSHING; BLADE 50017379

$

$

Not available

24

Gravely 06400720

WASHER; BLADE 50034015

$

$

Not available

25

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

26

Gravely 05901004

HHCS 1/2-20 X1-3/4 GR8 Y ZINC

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 06400809

WASHER; BELLEVILLE 95782

$

$

Not available

28

Gravely 05900731

HEX HD CPSC 3/8-16 X 3/4 19100

$5.49

$

Usually ships in 4-12 days

0

29

Gravely 02877900

BLADE;C.W. 17" 82323

$

$

Not available

Gravely 02672800

BLADE; 17 CW MULCHING 50029157

$

$

Not available

30

Gravely 02238800

DISC WELDMENT; 17 50017381

$

$

Not available

31

Gravely 02823300

BLADE; LH 527747

Note: (each)

$

$

Not available

Gravely 02885200

REPL BLADE KIT LH 88161

Note: (Package of 20 blades)

$

$

Not available

32

Gravely 07001339

CAPSCREW;FLG. 3/8 X 7/8 527745

$

$

Not available

33

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

34

Gravely 02823100

NUT BLADE 527495

$

$

Not available

35

Gravely 06200107

CARR BOLT 1/2 X 1-1/2 5161614

$

$

Not available

36

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 07200425

BELT; HBB (101.0) 96815

$80.99

$

Usually ships in 4-12 days

0

38

Gravely 07200424

BELT; HB (115.0) 96814

$72.99

$

Usually ships in 4-12 days

0

39

Gravely 06200025

CARRIAGE BOLT 5/8 X 2 1/2

$

$

Not available

40

Gravely 02938451

V-IDLER 5.5 97111

$155.99

$

In Stock, only 2 left!

0

41

Gravely 06200037

CARRIAGE BOLT 5/8 X 4 1 44498

$

$

Not available

42

Gravely 06400422

FLATWASHER 1/2 USS ZP 15916

$4.99

$

Usually ships in 4-12 days

0

43

Gravely 02936051

PIVOT MOUNT WELDMENT 96816

$

$

Not available

44

Gravely 02932551

PIVOT WELDMENT 95818

$50.99

$

Usually ships in 4-12 days

0

45

Gravely 08300451

SPRING 1.10 OD 95827

$

$

Not available

46

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

47

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

48

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

49

Gravely 09975851

ANGLE PIVOT WELDMENT

$

$

Not available

50

Gravely 05500808

BUSHING 95803

$

$

Not available

51

Gravely 02899251

SHEAVE; MACHINED (15.16) 94906

$

$

Not available

52

Gravely 02842800

HEXAGON NUT M30X2 70287

$

$

Not available

53

Gravely 02842700

SPR. WASH. OUT. TOOTH 31 70286

$

$

Not available

54

Gravely 06600201

KEY;6MMX6MMX30MM 70288

$

$

Not available

55

Gravely 06400851

SPACER 97658

$

$

Not available

56

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

57

Gravely 06400814

SPACER IDLER LONG 97920

$

$

Not available

58

Gravely 06400815

SPACER; IDLER SHORT 97921

$

$

Not available

59

Gravely 06200109

CARRIAGE BOLT 5/8 X 2 6162020

$

$

Not available

60

Gravely 02937951

V-IDLER; 4.7 E.O.D. 97043

$90.99

$

Usually ships in 4-12 days

0

61

Gravely 05901222

REPL BLD NUT & BOLT KIT 88162

Note: (Includes 40 each of item 32 and 40 each of item 34)

$

$

Not available
