895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Caster Arm And Wheel Assemblies Parts Diagram

Tow-Behind Mulching Mower Attachment

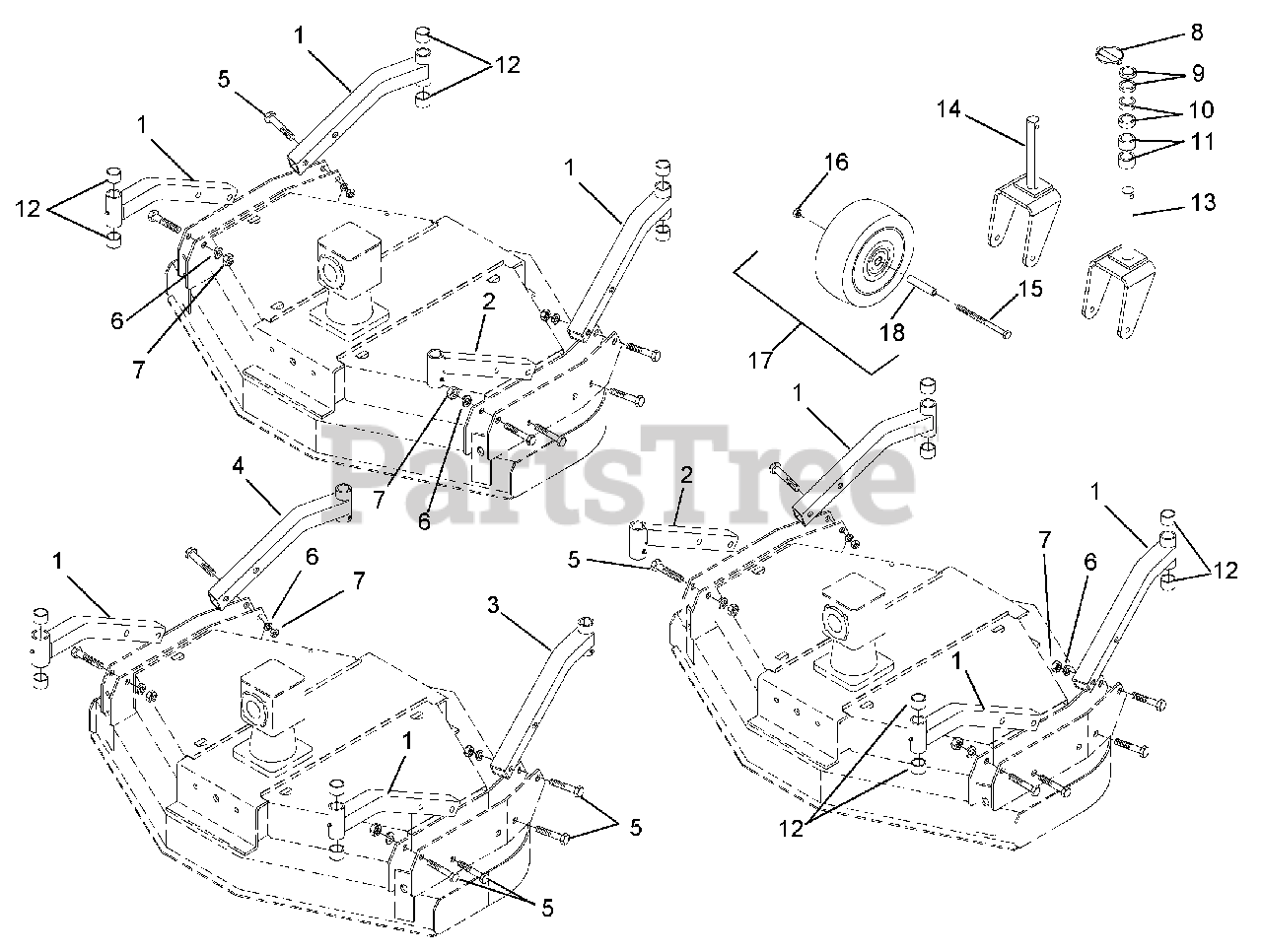

Caster Arm And Wheel Assemblies Parts Diagram

  • Title

1

Gravely 09971800

Assembly, Arm

$281.99

$

Usually ships in 4-12 days

0

2

Gravely 02944451

Weldment, Hex Arm

$

$

Not available

3

Gravely 02601451

Weldment, Right Hand Hex Arm

$129.99

$

Usually ships in 4-12 days

0

4

Gravely 02602151

Weldment, Left Hand Hex Arm

$

$

Not available

5

Gravely 05900927

Cap Screw, Hex Head .62-11 x 3.5

$

$

Not available

6

Gravely 06300038

Washer, Lock .625

$

$

Not available

7

Gravely 06500431

Nut, Hex .625-11

$

$

Not available

8

Gravely 02238100

Pin, Lynch

$4.49

$

Usually ships in 4-12 days

0

9

Gravely 06400819

Spacer .25

$

$

Not available

10

Gravely 06400818

Spacer .50

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06400817

Spacer 1.00

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 02383900

Bushing, Bronze 1.25 x 1.50 x 1.00

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 02382851

Weldment, Caster – Round

$218.99

$

Usually ships in 4-12 days

0

Gravely 19000300

Weldment, Caster – Round Extended

$

$

Not available

14

Gravely 19000251

Weldment, Caster – Hex

$217.99

$

Usually ships in 4-12 days

0

Gravely 19000400

Weldment, Caster – Hex Extended

$

$

Not available

15

Gravely 05900821

Cap Screw, Hex Head .50-13 x 6

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 02116500

Nut, Lock .50-13

$

$

Not available

17

Gravely 07100712

Assembly, Pneumatic Tire and Wheel

$

$

Not available

18

Gravely 06400938

Spacer, Wheel

$

$

Not available
