895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Gearbox Assembly - Deck Drive Parts Diagram

Tow-Behind Mulching Mower Attachment

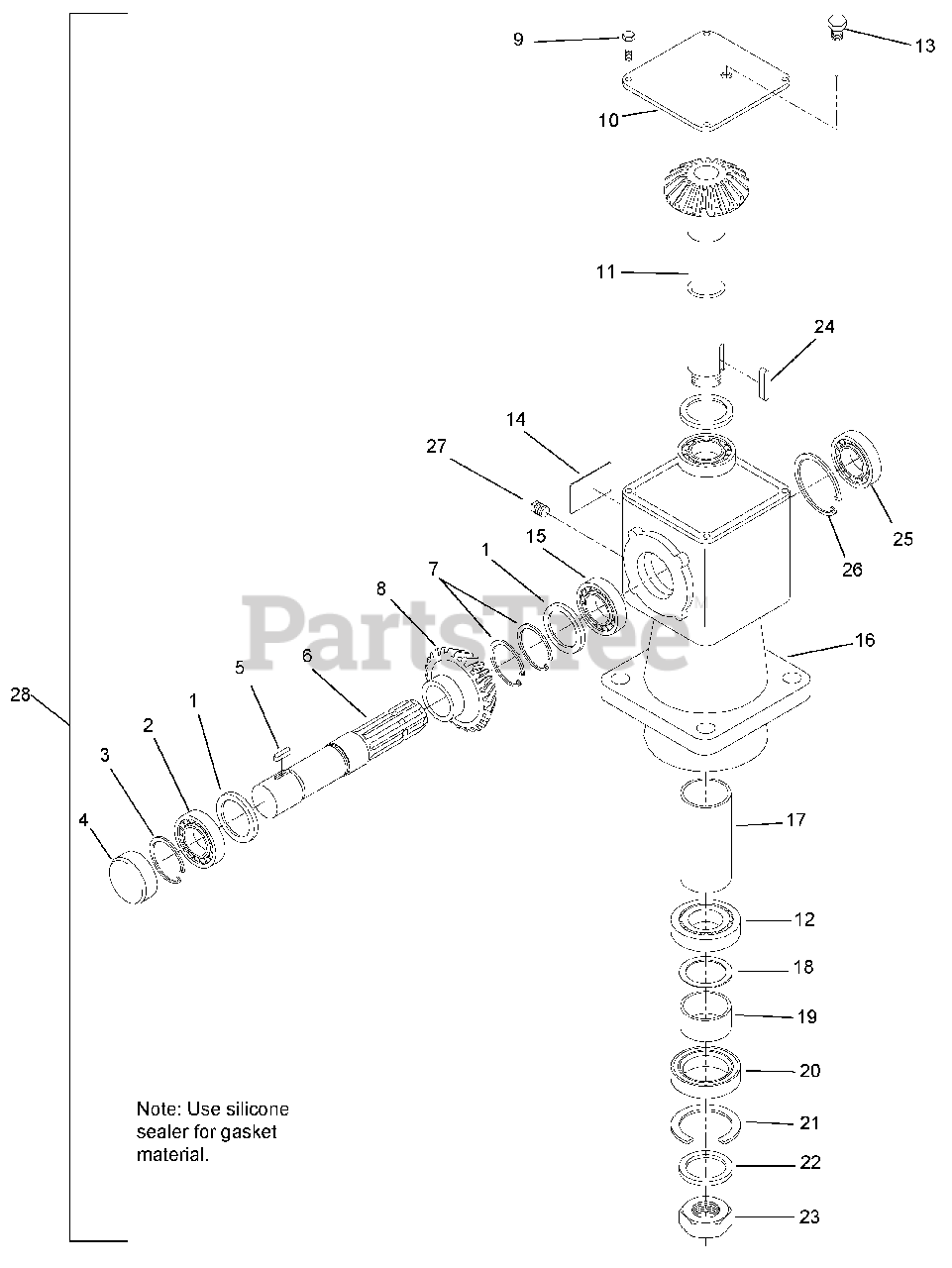

Gearbox Assembly - Deck Drive Parts Diagram

  • Title

1

Gravely 02843200

Shim .3 mm

$

$

Not available

Gravely 02843300

Shim .4 mm

$

$

Not available

Gravely 02843400

Shim .5 mm

$

$

Not available

Gravely 02843500

Shim 1.3 mm

$

$

Not available

2

Gravely 05400621

Flange, Bearing

$

$

Not available

3

Gravely 05700114

Ring, Snap

$

$

Not available

4

Gravely 02842300

Cap

$

$

Not available

5

Gravely 06600140

Key, M10 x 8 x 30

$

$

Not available

6

Gravely 02842400

Shaft

$

$

Not available

7

Gravely 05700113

Ring, Retaining

$

$

Not available

8

Gravely 02841400

Gear

$

$

Not available

9

Gravely 07001409

Cap Screw, M8 x 16 Grade 8

$

$

Not available

10

Gravely 02841300

Plate, Top

$

$

Not available

11

Gravely 02842500

Pinion

$

$

Not available

12

Gravely 05400623

Bearing

$

$

Not available

13

Gravely 02843900

Plug, Oil Level

$

$

Not available

14

NA

Plate, Serial Number

$

$

Not available

15

Gravely 05400625

Bearing

$

$

Not available

16

Gravely 02842600

Housing

$

$

Not available

17

Gravely 06400734

Ring, Snap

$

$

Not available

18

Gravely 05600422

O-Ring

$

$

Not available

19

Gravely 05500739

Bushing

$

$

Not available

20

Gravely 05600421

Seal

$

$

Not available

21

Gravely 02841200

Ring, Lock

$

$

Not available

22

Gravely 02842700

Washer, Spring Outer Tooth

$18.99

$

Usually ships in 4-12 days

0

23

Gravely 02842800

Nut, Hex M30 x 2

$

$

Not available

24

Gravely 06600201

Key, 6 mm x 9 mm x 30 mm

$

$

Not available

25

Gravely 05600427

Seal

$

$

Not available

26

Gravely 05700115

Ring, Retaining

$

$

Not available

27

Gravely 02655800

Plug, Oil Drain .38 MNPT

$

$

Not available

28

Gravely 02841151

Gearbox Assembly, Series LF33A RA (Includes Items 1 – 27)

Note: (Includes Items 1 – 27)

$

$

Not available
